Swirl Rings & Others

Swirl rings and the remaining torch internals for plasma cutting systems - the parts of the consumable stack that nobody thinks about until the cut starts wandering.

What a swirl ring does

The swirl ring spins the plasma gas into a vortex around the electrode. That vortex is what constricts and stabilises the arc, centres it in the nozzle orifice and keeps the cut square. It is a precision part disguised as a cheap one.

How it fails

The gas ports are small and they block - with spatter, with moisture-carried debris, with oil from an unfiltered air supply. A partially blocked port skews the vortex. The arc goes off-centre, the nozzle erodes on one side, and the cut develops a bevel that gets blamed on the torch height control or the operator.

Because the swirl ring sits inside the stack, it is almost always the last part inspected and frequently the actual cause.

Replace it with the set

Swirl rings should be changed on a schedule alongside electrodes and nozzles rather than run until symptoms appear. The part costs little; the nozzles it destroys do not.

Match the series and the amperage

Swirl rings are specific to the torch series and often to the amperage band within it. Powermax 30/45, Powermax 65/85/105 DURAMAX, Powermax 600/900 and HPR130/260/400XD stacks are not interchangeable.

Free shipping over $175 across Canada. Counter pickup in North York.

More in Plasma Cutting

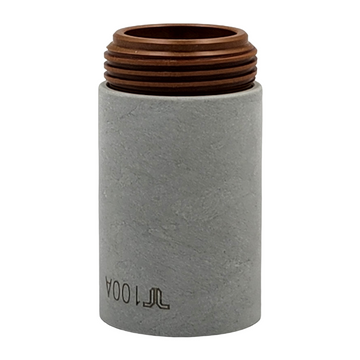

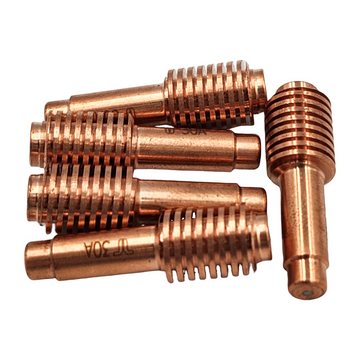

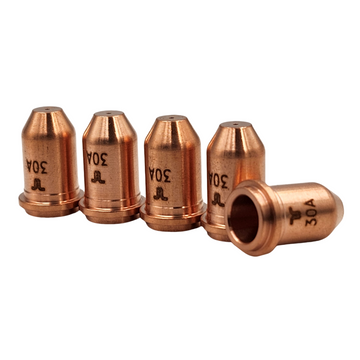

Electrodes Electrodes Nozzles Nozzles Retaining Caps Retaining Caps Shields Shields Swirl Rings & Others Swirl Rings & Others Torches
Thermacut 220479 plasma swirl ring 30A – Powermax 30/45 replacement Plasma Cutting

Thermacut 220479 Plasma Swirl Ring 30A (Pack of 2) – Powermax 30/45 Replacement

$59.00 Thermacut 120576 plasma swirl ring 2-pack – Hypertherm Powermax 600/900 replacement Plasma Cutting

Thermacut 120576 Swirl Ring (2-Pack) – Powermax 600/900 PAC123T/M, PAC125T/M Replacement

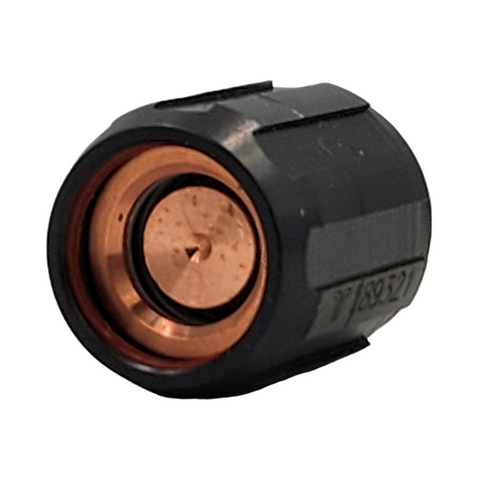

$42.50 Thermacut T-11862 swirl ring holder for 220842 electrodes – Powermax 65/85/105 DURAMAX replacement Plasma Cutting

Swirl Ring Holder for 220842 Electrodes – Powermax 65/85/105 DURAMAX Replacement

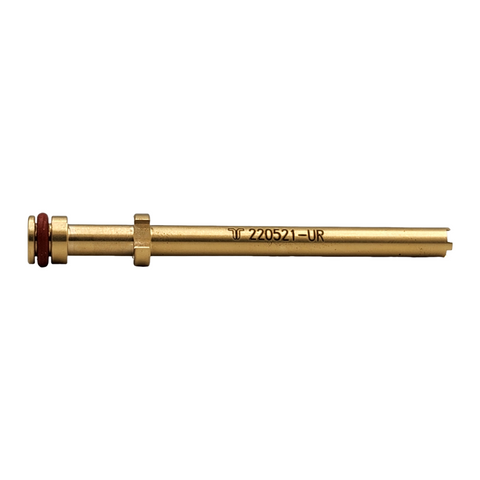

$21.58 Thermacut 220521 plasma cooling tube – HyPro 2000/HT2000 replacement Plasma Cutting

Thermacut 220521 Plasma Cooling Tube – HyPro 2000/HT2000 Replacement

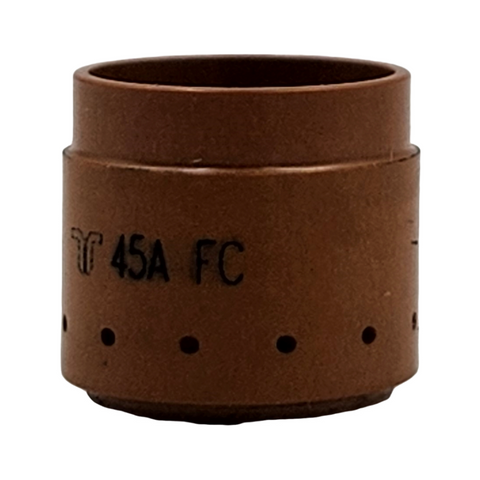

$45.00 Thermacut 220947 plasma swirl ring 45A FineCut – Powermax 65/85/105 DURAMAX replacement Plasma Cutting

Thermacut 220947 Plasma Swirl Ring 45A, FineCut® – Powermax 65/85/105 DURAMAX Replacement

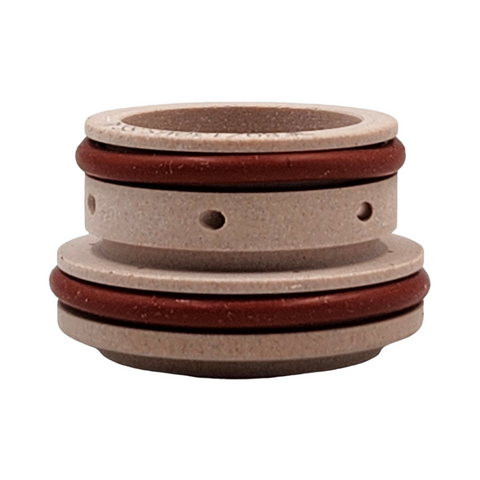

$25.90 Thermacut 220179 plasma swirl ring 80-130A – HPR130/260/400XD replacement Plasma Cutting

Thermacut 220179 Plasma Swirl Ring 80-130A – HPR130/260/400XD Replacement

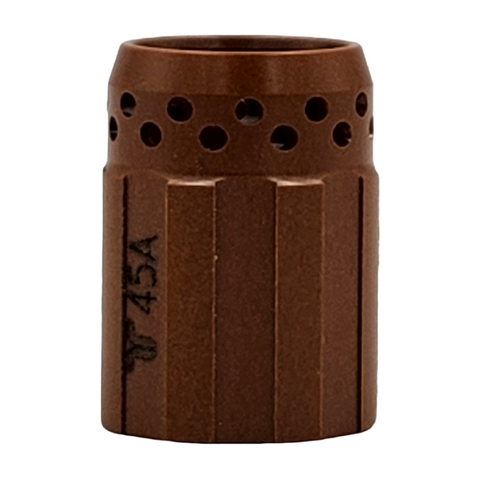

$27.90 Thermacut 220670 plasma swirl ring 45A – Powermax 45 T30v/T45v/T45m replacement Plasma Cutting

Thermacut 220670 Plasma Swirl Ring 45A – Powermax 45 T30v/T45v/T45m Replacement

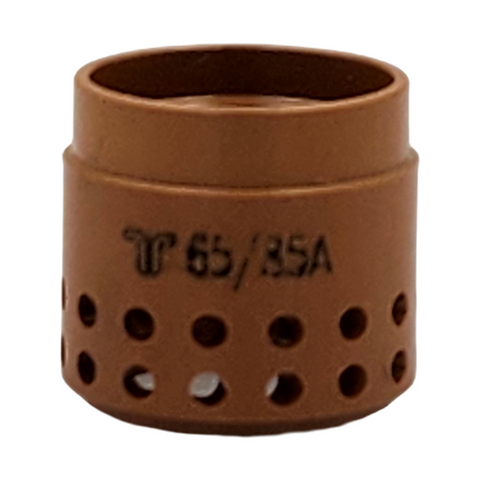

$39.00 Thermacut 220857 plasma swirl ring 45-85A – Powermax 65/85/105 DURAMAX replacement Plasma Cutting

Thermacut 220857 Plasma Swirl Ring 45-85A – Powermax 65/85/105 DURAMAX Replacement

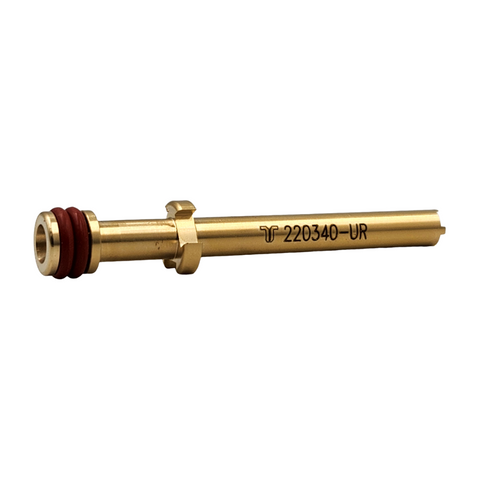

$29.90 Thermacut 220340 plasma cooling tube 30-260A – HPR130/260/400XD replacement Plasma Cutting

Thermacut 220340 Plasma Cooling Tube 30-260A – HPR130/260/400XD Replacement

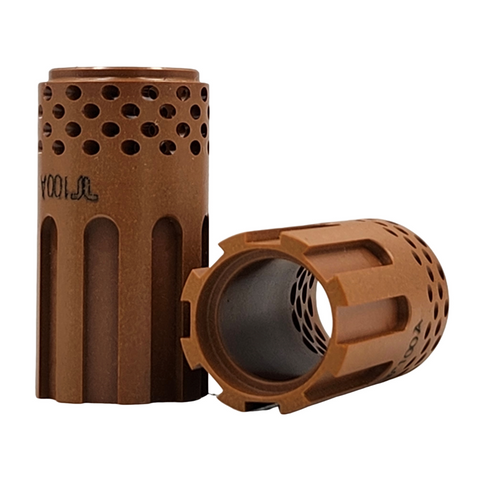

$39.00 Thermacut 220051 plasma swirl ring – Powermax 1000/1250/1650 replacement Plasma Cutting

Thermacut 220051 Plasma Swirl Ring (2-Pack) – Powermax 1000/1250/1650 Replacement

$58.70
