Cables & Connectors

Welding cable connectors, machine-side adaptors and welder power connections - the hardware that lets one machine, one set of leads and one power drop work together.

Connector styles are not interchangeable

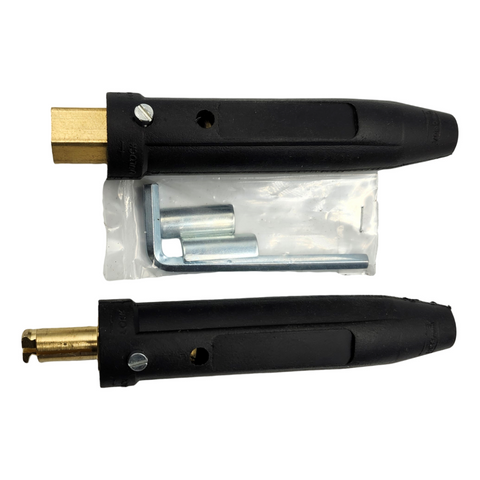

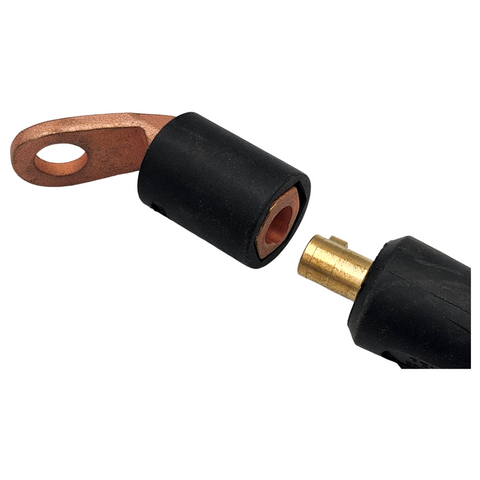

Dinse, Lenco and Tweco style connectors each dominate different machine brands, and a shop that has bought machines over twenty years usually has all three. Adaptors bridge them, which is cheaper and faster than re-terminating cable every time a lead moves between machines.

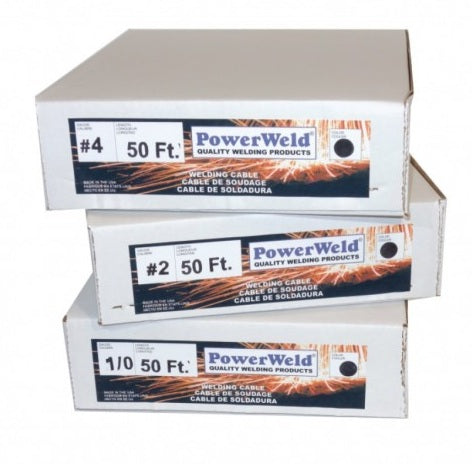

Connectors are sized by cable gauge range as well as amperage - a 1025 is not a 5095. Forcing an undersized connector onto heavy cable produces a hot joint and lost welding current.

Symptoms of a bad connection

An arc that will not hold at full output, a machine that feels underpowered, or a connector that is warm to the touch after a run. All three are resistance in the circuit, and the connector is where it usually lives. Discoloured brass or hardened insulation means replace, not re-tape.

Power-side connections

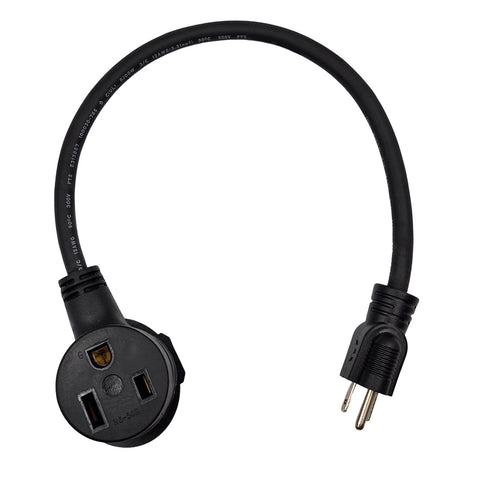

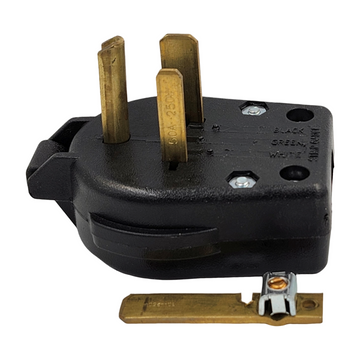

NEMA 6-50 plugs and receptacles are the standard 250V 50A welder outlet. If you are installing a drop for a new machine, check the machine's input current requirement against both the receptacle and the breaker - the receptacle being physically right does not mean the circuit is rated for the machine.
