Retaining caps for plasma cutting torches - the outer component that holds the consumable stack together and takes the mechanical abuse.
What it does
The retaining cap clamps electrode, swirl ring, nozzle and shield into a sealed stack with the correct internal gas passages. If it is not holding the stack tight and square, the arc is not centred, and everything downstream of that suffers - bevelled cuts, rapid nozzle wear, and in the worst case damage to the torch head itself.
Check the threads, not the outside
Retaining caps are the part most often cross-threaded, because they are removed and refitted at every consumable change. A cap that no longer runs on smoothly is telling you something. Heat-cycled and damaged threads let the stack loosen in use, which is how a consumable change turns into a torch replacement.
Replace them on condition rather than running them until they seize.
IHS tab matters on a table
Some caps carry an ohmic initial-height-sensing tab used by CNC tables to find the plate surface before piercing. A cap without the tab will not sense, and a table that cannot sense height will pierce at the wrong standoff. Order the variant that matches your setup - they look nearly identical.
Series specific

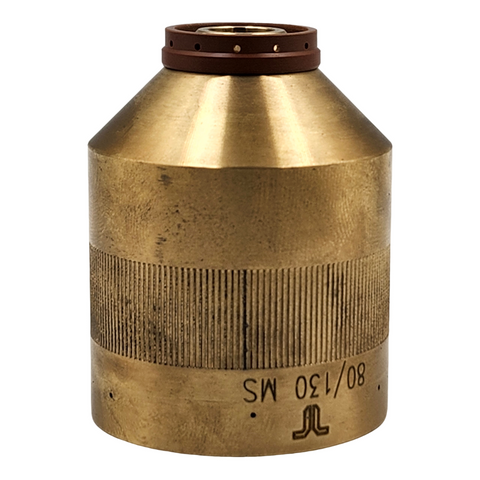

Powermax 30/45, Powermax 600/800/900 and HPR130/260 caps are not interchangeable. Bring the torch or send a photograph of the head if you are unsure.
Counter pickup in North York.

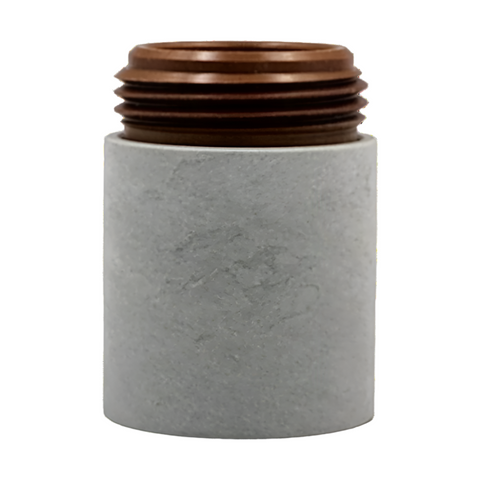

120600 Retaining Cap – Powermax 600/800/900, MAX40cs/42/43 Replacement
$41.57

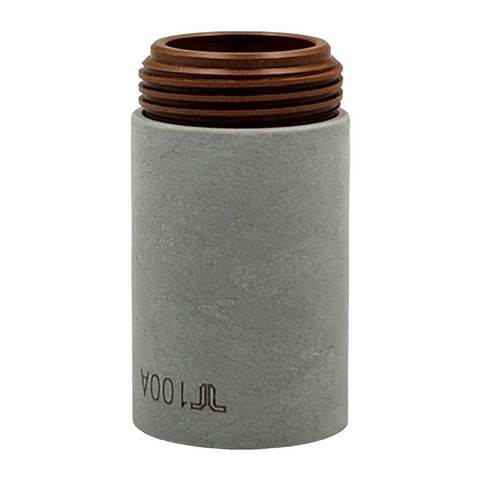

220048 Plasma Retaining Cap 100A – Powermax 1000/1250/1650 Replacement
$49.00

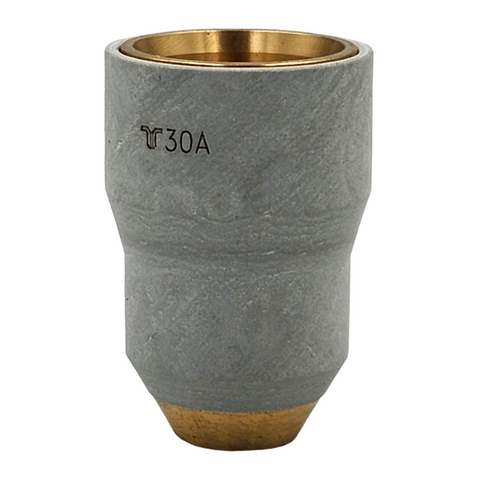

220483 Plasma Retaining Cap – Powermax 30/45 T30v/T45v Replacement
$39.00

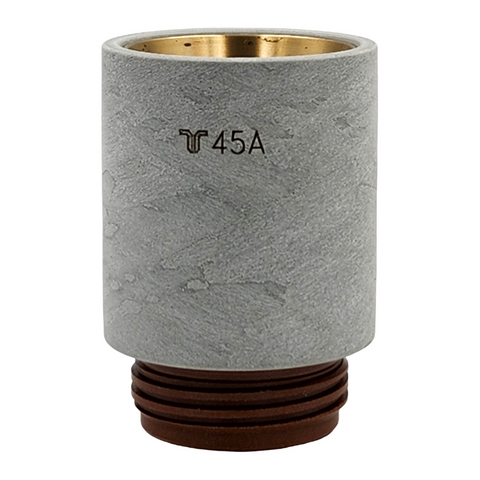

220713 Retaining Cap 45A, without IHS Tab – Powermax 45 Replacement
