Shields

Shields, heat shields, deflectors and ohmic-sensing caps for plasma cutting torches. The shield is the outermost part of the consumable stack and the one taking the direct heat, spatter and mechanical contact.

What the shield actually does

  • Protects the stack. It takes the molten spatter blown back from the cut, which would otherwise weld itself to the nozzle and destroy it.
  • Sets standoff. On drag-cutting shields, the shield face maintains the gap between nozzle and workpiece. Standoff height is one of the biggest single influences on cut quality.
  • Carries the ohmic signal. On ohmic-sensing shields, the shield is the electrical contact a CNC table uses to find the plate surface before piercing. A pitted or spatter-coated ohmic shield causes initial height sense failures that look like table faults.

Replace on condition

A shield with spatter build-up around the orifice is already distorting the gas flow. A shield that has been dragged until the face is worn thin has changed your standoff, and with it your cut angle. Neither costs much to replace.

Match the torch, not the picture

Shields are specific to torch series and often to amperage range within it. Powermax, PT-27, PT-32, SL60 and SL100 stacks are not interchangeable. If you are unsure which torch you are running, bring it to the counter or send a photograph of the torch head.

Free shipping over $175 across Canada. Counter pickup in North York.

More in Plasma Cutting
Electrodes Electrodes 9 products Nozzles Nozzles 12 products Retaining Caps Retaining Caps 5 products Shields Shields 17 products Swirl Rings & Others Swirl Rings & Others 10 products Torches
17 products
ESAB PT-32 heat shield 0558001957 – plasma torch replacement part Plasma Cutting

ESAB PT-32 Heat Shield 0558001957 – Plasma Torch Replacement Part

$59.90 220948 plasma shield 45A Ohmic FineCut® – Hypertherm Powermax 65/85/105 DURAMAX torch replacement part Plasma Cutting

Thermacut 220948 Plasma Shield 45A, Ohmic, FineCut® – Powermax 65/85/105 DURAMAX Replacement

$19.99 Thermacut 120303 plasma deflector – Hypertherm Powermax 600/800/900 replacement Plasma Cutting

Thermacut 120303 Plasma Deflector – Powermax 600/800/900 Replacement

$9.64 Thermacut 21616 plasma heat shield – ESAB/L-TEC PT-27 torch replacement Plasma Cutting

Thermacut 21616 Plasma Heat Shield – ESAB/L-TEC PT-27 Torch Replacement

$36.90 Thermacut 120828 plasma shield 40A – Powermax 600 PAC123T/M replacement Plasma Cutting

Thermacut 120828 Plasma Shield 40A – Powermax 600 PAC123T/M Replacement

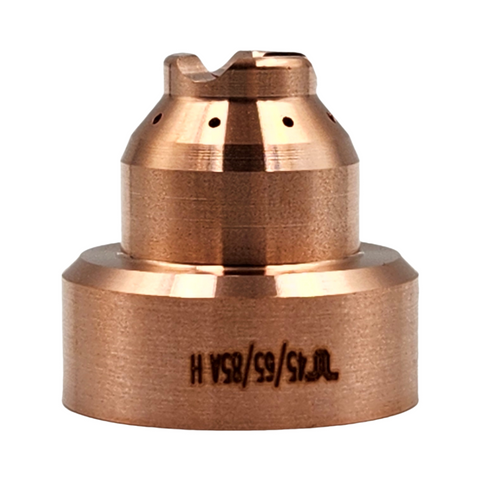

$22.84 Thermacut 220818 plasma shield 45/65/85A – Powermax 65/85/105 DURAMAX replacement Plasma Cutting

Thermacut 220818 Plasma Shield 45/65/85A – Powermax 65/85/105 DURAMAX Replacement

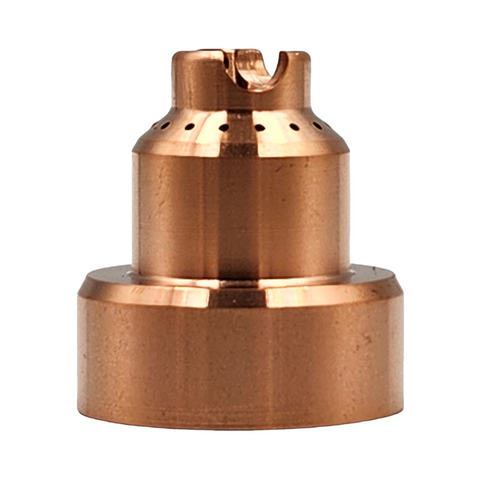

$19.90 Thermacut 220992 plasma shield 105A – Powermax 65/85/105 DURAMAX hand torch replacement Plasma Cutting

Thermacut 220992 Plasma Shield 105A – Powermax 65/85/105 DURAMAX Hand Torch Replacement

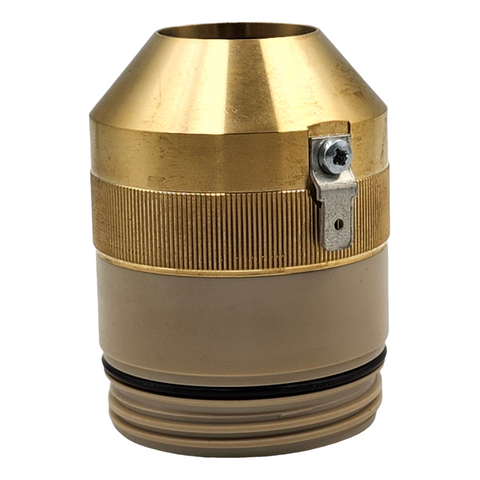

$26.90 Thermacut 220173-UR plasma shield cap 30-130A – HPR/HPRXD replacement, MS/SS/AL Plasma Cutting

Thermacut 220173-UR Plasma Shield Cap 30-130A – HPR/HPRXD Replacement (MS, SS/AL)

$259.90 Hypertherm 420480 plasma gouging shield 45-105A – DURAMAX/DURAMAX Lock replacement Plasma Cutting

Hypertherm 420480 Plasma Gouging Shield 45-105A – DURAMAX/DURAMAX Lock Replacement

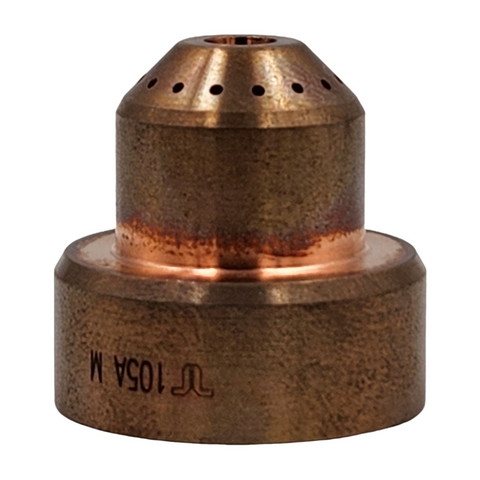

$34.90 Thermacut 220993 plasma shield 105A machine torch – Powermax 105 replacement Plasma Cutting

Thermacut 220993 Plasma Shield 105A, Machine Torch – Powermax 105 Replacement

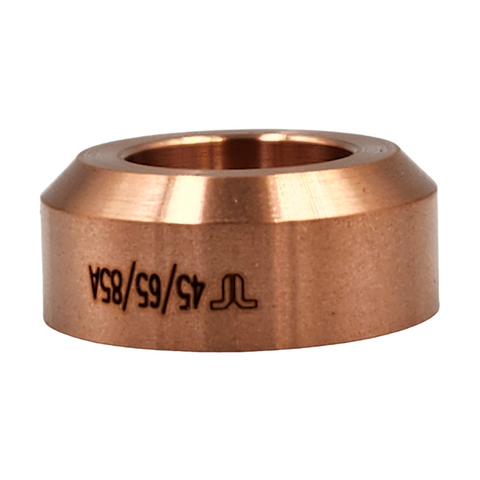

$29.00 Thermacut 220955 plasma deflector 45/65/85/105A – Powermax 65/85/105 DURAMAX replacement Plasma Cutting

Thermacut 220955 Plasma Deflector 45/65/85/105A – Powermax 65/85/105 DURAMAX Replacement

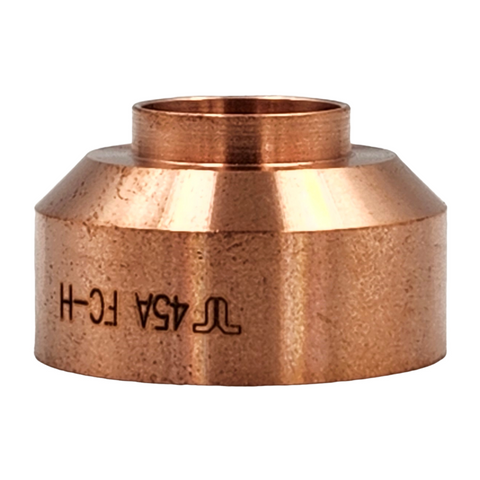

$14.99 Thermacut 220931 plasma deflector 45A FineCut – Powermax 65/85/105 replacement Plasma Cutting

Thermacut 220931 Plasma Deflector 45A, FineCut® – Powermax 65/85/105 Replacement

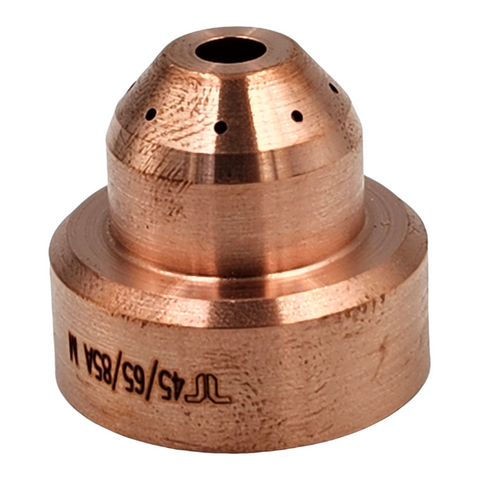

$15.90 Thermacut 220817 plasma shield 45/65/85A machine torch – Powermax 65/85 replacement Plasma Cutting

Thermacut 220817 Plasma Shield 45/65/85A, Machine Torch – Powermax 65/85 Replacement

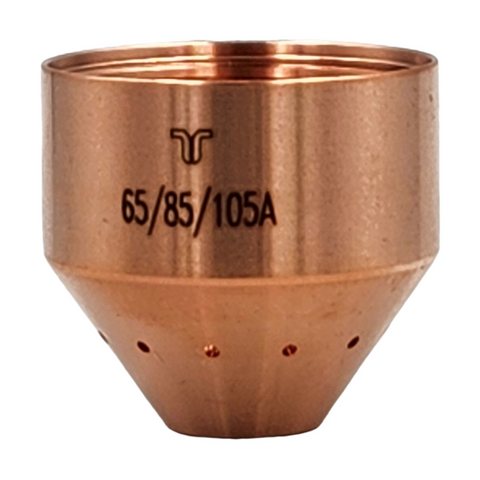

$23.90 Thermacut 220798 plasma gouging shield 65/85/105A – Powermax 65/85/105 replacement Plasma Cutting

Thermacut 220798 Plasma Shield 65/85/105A, Gouging – Powermax 65/85/105 Replacement

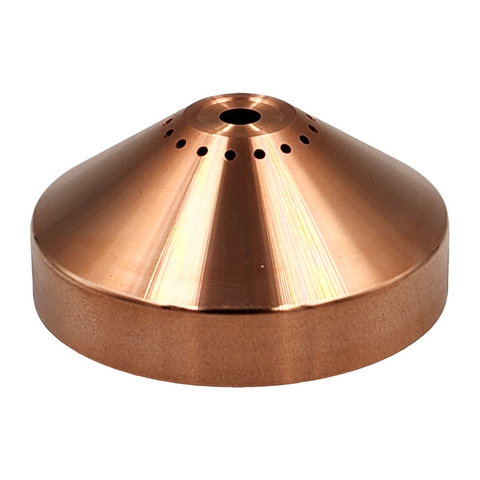

$29.00 Thermacut 220536 plasma shield 130A air/N2/H35 – HSD130/HT2000/MaxPro200 replacement Plasma Cutting

Thermacut 220536 Plasma Shield 130A, Air/N2/H35 – HSD130/HT2000/MaxPro200 Replacement

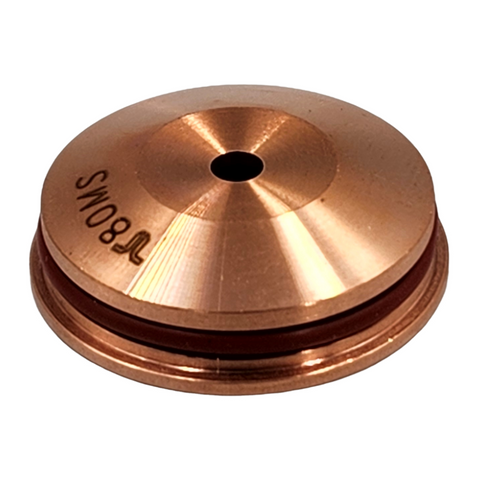

$59.00 Thermacut 220189 plasma shield 80A – HPR130/260/400XD mild steel replacement Plasma Cutting

Thermacut 220189 Plasma Shield 80A – HPR130/260/400XD Mild Steel Replacement

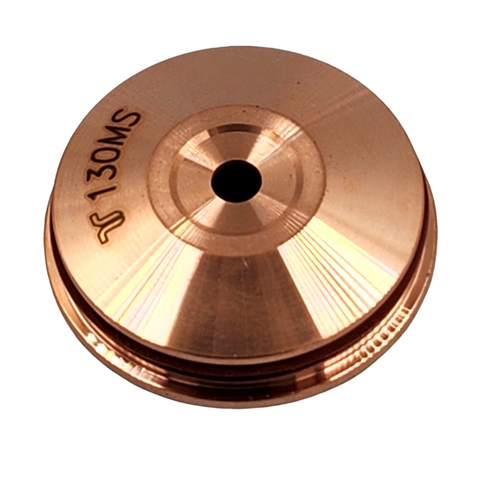

$18.99 Thermacut 220183 plasma shield 130A – HPR130/HPR260 mild steel replacement Plasma Cutters

Thermacut 220183 Plasma Shield 130A – HPR130/HPR260 Mild Steel Replacement

$22.99
