Valve Pin

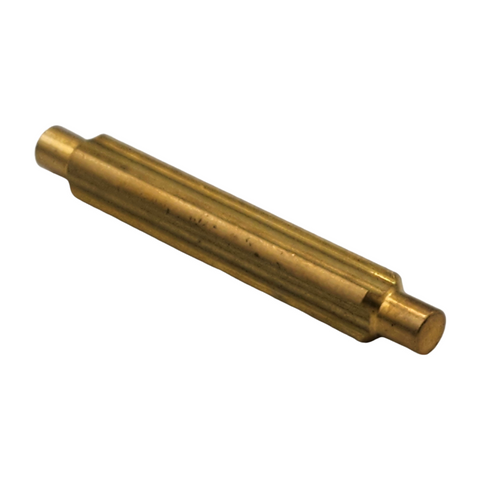

PT-32 plasma torch valve pin, ESAB part 0558001959 - the gas flow and safety interlock component inside the torch head.

What the valve pin does

The valve pin sits in the torch head and controls the gas path. On PT-32 style torches it is also part of the safety interlock: with the consumables correctly assembled and the retaining cup tightened, the pin is held in position and the circuit is complete. Remove the shield cup and the pin releases, which is what prevents the torch firing with its consumables off.

It is a small part doing two jobs, and when it wears, both fail at once.

Symptoms of a worn or stuck pin

  • The torch will not fire at all, despite good air pressure and a machine that shows ready - the interlock is not making.
  • Intermittent firing, or a pilot arc that starts and drops.
  • Gas flow that continues after the trigger is released, or that will not establish.
  • A consumable set that looks correct but behaves as though the cup is loose.

Before replacing the pin, rule out the cheaper causes: air pressure and volume at the machine, a worn electrode past its pit depth limit, and a shield cup that is not seated. Those account for most no-fire calls.

Air quality is why pins fail early

Moisture and compressor oil carried into the torch head gum the pin's movement and corrode its seat. A pin that sticks rather than wearing is almost always an air quality problem, and replacing the pin without fitting a dryer and a coalescing filter means replacing it again.

Confirm your torch before ordering

This is a PT-32 series part. Plasma torch internals are specific to the torch family and the machine behind it, and a near-match does not seal or interlock. Tell us the torch and machine model and we will confirm the part number before it ships.

Depressurise and disconnect first

Work on a torch head only with the machine off, the leads disconnected and the air supply bled. There is a pilot arc circuit in there.

We carry the full PT-32 consumable range - electrodes, nozzles, swirl rings, shield cups - alongside the internal parts. Free shipping over $175 across Canada. Counter pickup in North York.
