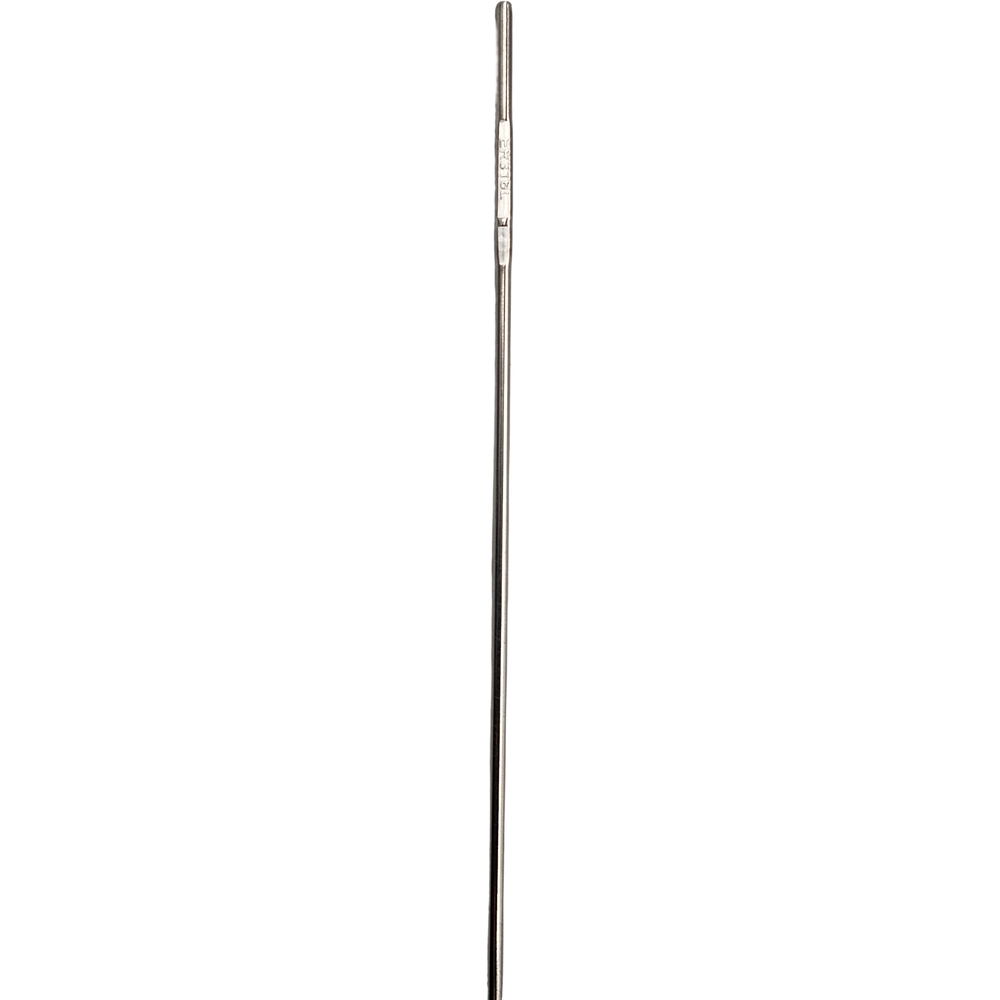

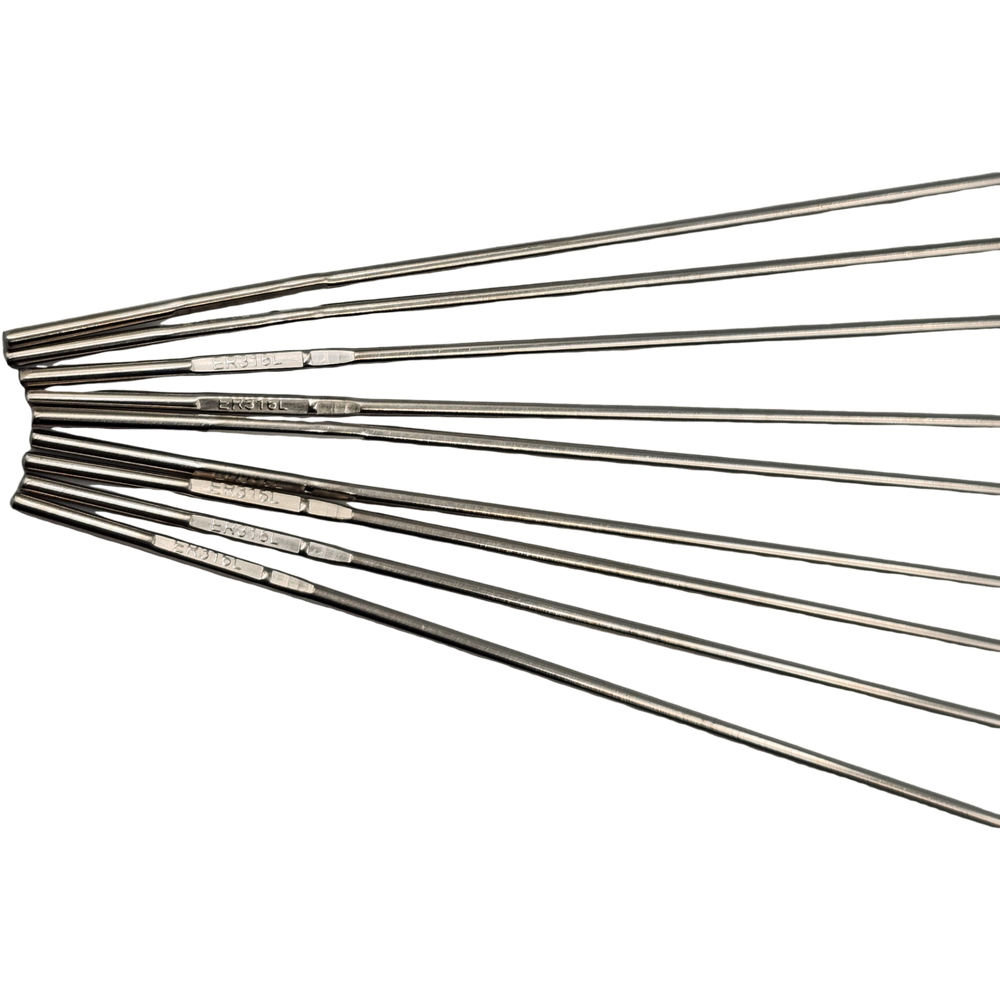

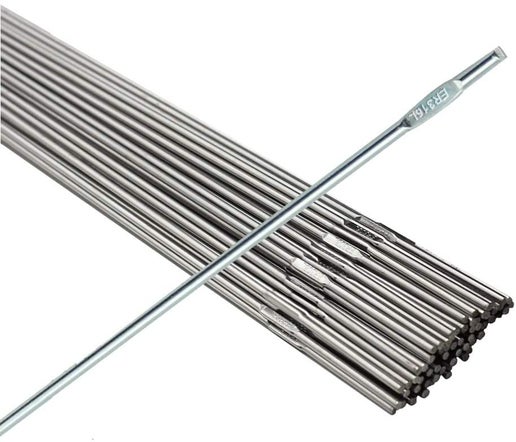

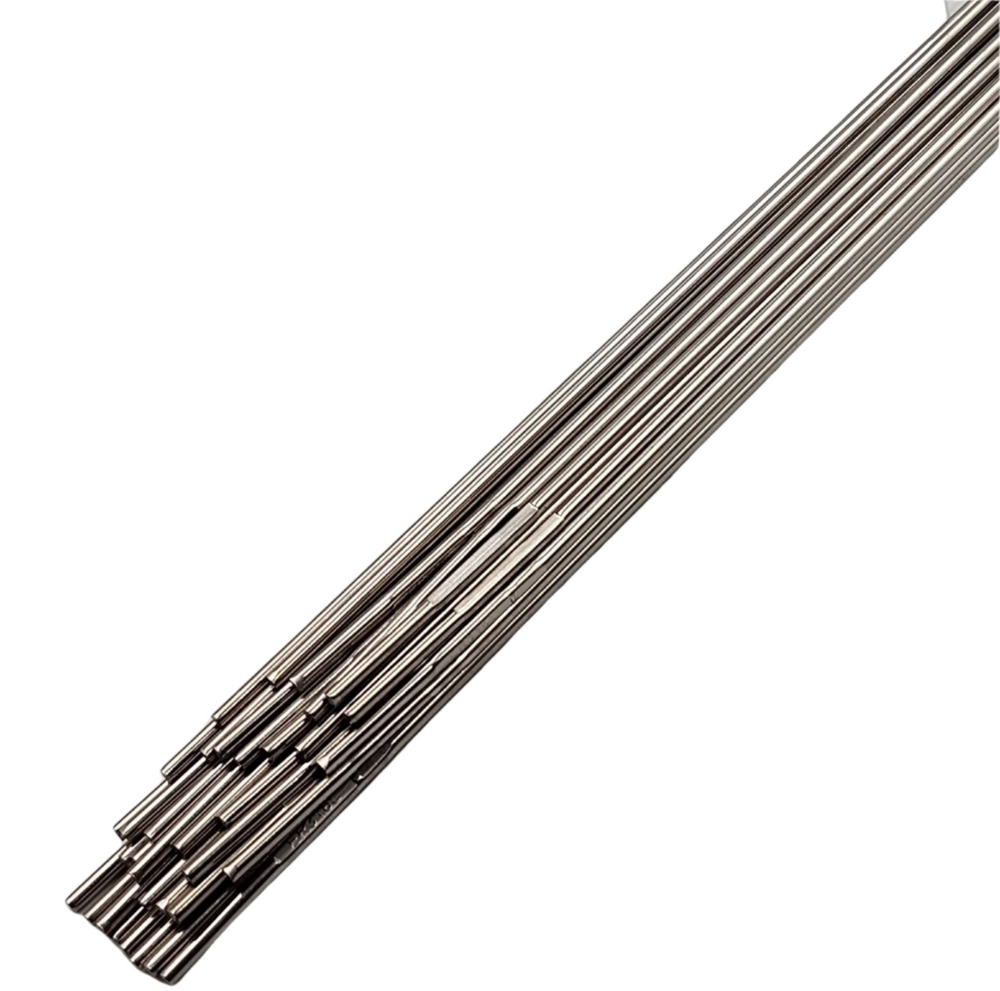

ER316L Stainless Steel TIG Welding Rods
ER316L Stainless Steel TIG Welding Rods are engineered for exceptional performance, particularly renowned for their remarkable corrosion resistance, making them an excellent choice for demanding industries such as food processing and chemical manufacturing. These rods are enhanced with 2–3% molybdenum, which significantly boosts their ability to withstand corrosive environments over traditional chromium-nickel alloys. This addition provides superior resistance to pitting and crevice corrosion.
Key Features
- Exceptional corrosion resistance engineered for the most demanding industrial environments
- 2–3% molybdenum addition provides vastly superior resistance to pitting and crevice corrosion vs. standard chromium-nickel alloys
- Outperforms standard austenitic TIG rods in chloride-rich and chemically aggressive environments
- Optimal bead characteristics producing clean, precise welds
- Ideal for high-pressure applications and environments prone to harsh chemical exposures
- Wide diameter range from 0.9mm to 3.2mm available across multiple trusted brands
- Available from CWI, PowerWeld, Atlantic, and Sorex for sourcing flexibility
Technical Specifications
| AWS Classification | ER316L |
| Process | TIG (GTAW) |
| Compatible Base Metals | Types 316, 316L molybdenum-bearing austenitic stainless steels |
| Molybdenum Content | 2–3% |
| Corrosion Resistance | Superior; resistant to chlorides, pitting, and crevice corrosion |
| Bead Characteristics | Clean, precise |
| Available Diameters | .035 inch (0.9mm), .045 inch (1.2mm), 1/16 inch (1.6mm), 5/64 inch (2.0mm), 3/32 inch (2.4mm), 1/8 inch (3.2mm) |
| Package Options | 10 lbs (CWI/PowerWeld), 11 lbs (Atlantic/Sorex) |
| Industry Applications | Food processing, chemical manufacturing, marine, high-pressure applications |
Part Number & Size Reference
Other Products
316 Stainless Steel Stick Electrodes | 316 Stainless Steel MIG Welding Wire | 308 Stainless Steel TIG Rods | 309 Stainless Steel TIG Rods | Stainless Steel Flux Cored Welding Wire
Specifications
| Product type | Stainless Steel Welding |
|---|---|
| Brand | Atlantic, PowerWeld, CWI |
| Pack Size | 1/16 inch (1.6mm) 11lbs., 5/64 inch (2.0mm) 11lbs., .045 inch (1.2mm) 10lbs., 3/32 inch (2.4mm) 10lbs., 1/8 inch (3.2mm) 10lbs., .035 inch (0.9mm) 10lbs. |
Sizes & pricing
Every option with its part number and price. Select one to load it into the cart above.
| Option | SKU | Price | Select |
|---|---|---|---|
| Atlantic / 1/16 inch (1.6mm) 11lbs. | MWA316L16T | $111.20 | |
| Atlantic / 5/64 inch (2.0mm) 11lbs. | MWA316L20T | $109.60 | |
| PowerWeld / .045 inch (1.2mm) 10lbs. | MW316L-045 | $183.20 | |
| PowerWeld / 3/32 inch (2.4mm) 10lbs. | MW316L-332 | $108.00 | |
| PowerWeld / 1/8 inch (3.2mm) 10lbs. | MW316L-18 | $111.20 | |
| CWI / .035 inch (0.9mm) 10lbs. | MW316L-035 | $191.20 |
