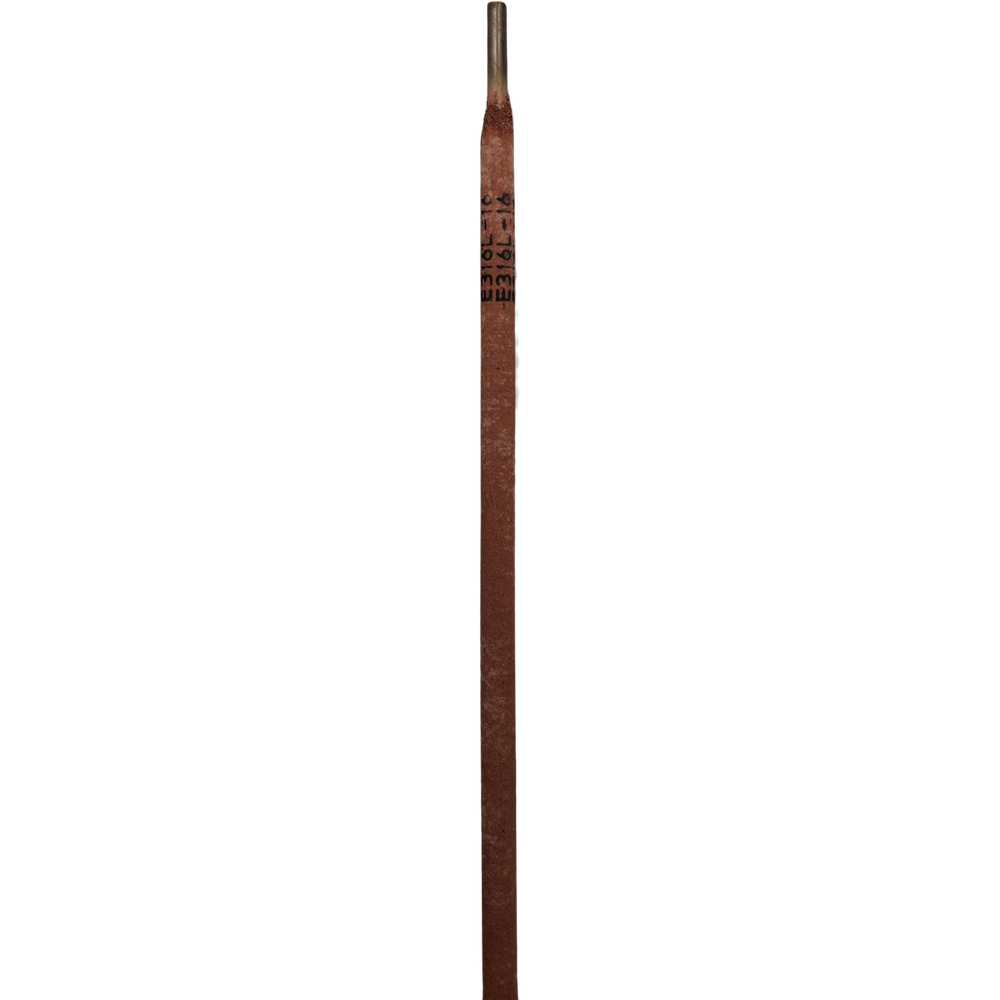

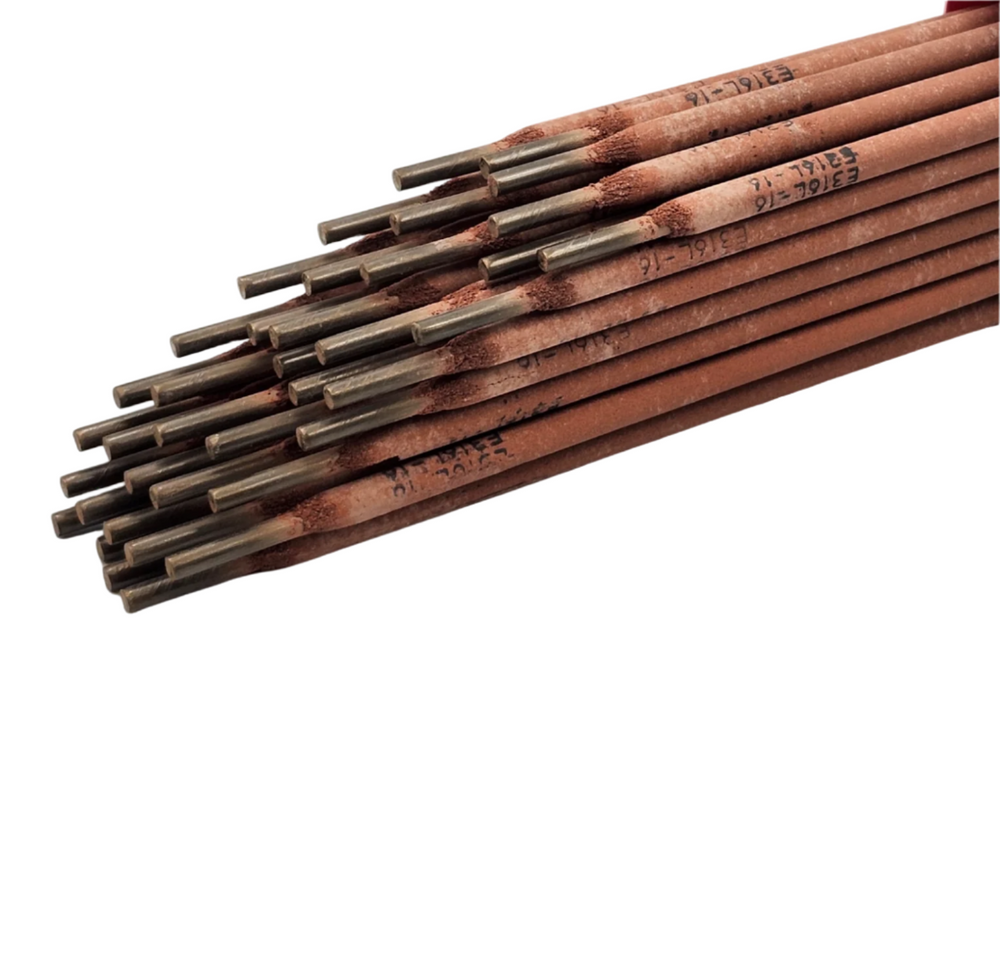

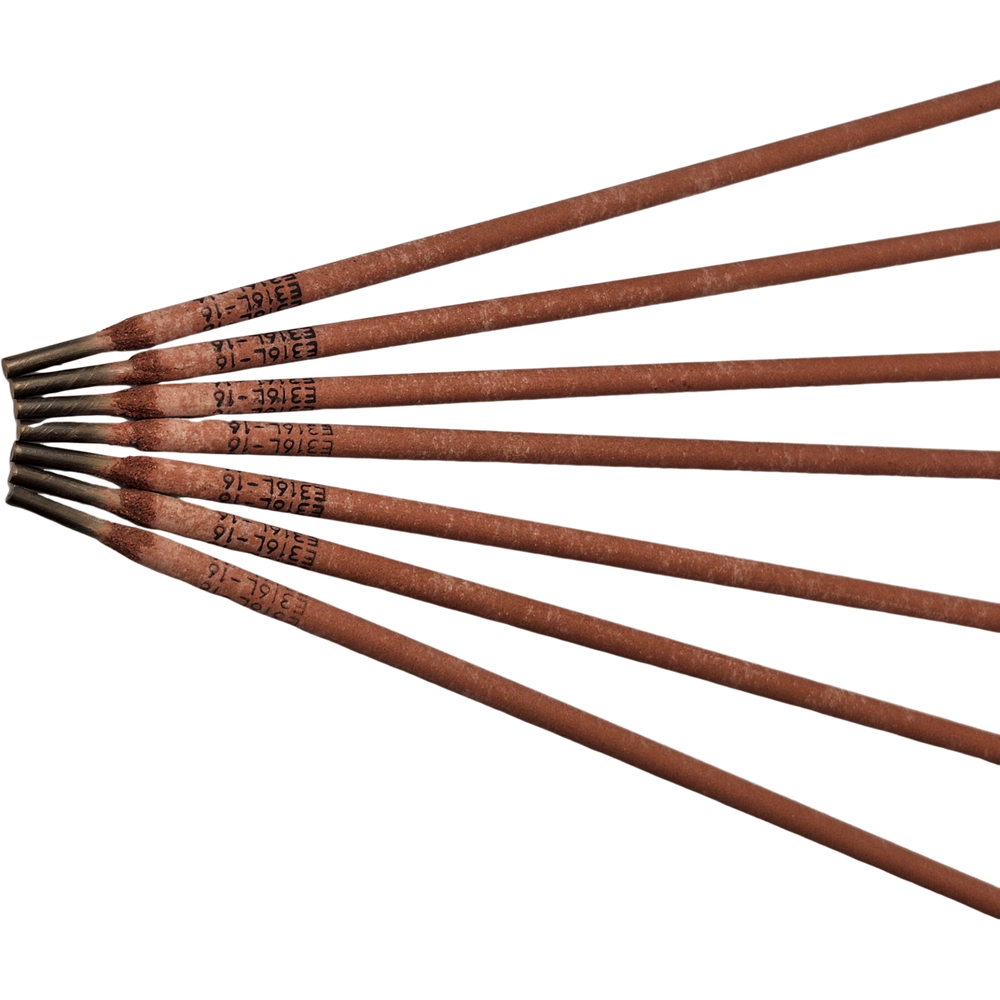

E316L Stainless Steel Stick Electrodes
E316L Electrodes are tailored for welding 316L or 318 stainless steels, providing top-tier and enduring welds. These electrodes contain a maximum of 0.04% carbon, significantly reducing carbide precipitation and intergranular corrosion, which boosts both performance and durability. They are ideal for a wide array of applications, such as pump housings, impellers, food processing equipment, and pharmaceutical machinery, offering smooth arcs and straightforward release across all welding positions.
Key Features
- Specifically formulated for welding 316L and 318 stainless steels
- Maximum 0.04% carbon content significantly reduces carbide precipitation and intergranular corrosion
- Molybdenum inclusion dramatically enhances corrosion resistance against pitting, acids, and industrial solvents
- Excellent arc stability with quick burn-off rates and minimal stub loss
- Produces smooth, uniform, crack-resistant beads with an aesthetically pleasing finish
- Approved by CWB, CE, ISO 9001, and Lloyd's Register UK
Technical Specifications
| AWS Classification | E316L |
| Compatible Base Metals | 316L, 318 stainless steels |
| Carbon Content | Maximum 0.04% |
| Key Alloying Element | Molybdenum (enhanced pitting and acid corrosion resistance) |
| Welding Positions | All positions |
| Certifications | CWB, CE, ISO 9001, Lloyd's Register UK |
Part Number & Size Reference
Other Products
316 TIG Rods | 316 MIG Wire | 308 Stick Electrodes | 309 Stick Electrodes | Flux Cored Wire
Specifications
| Product type | Stainless Steel Welding |
|---|---|
| Brand | Atlantic |
| Pack Size | 3/32 inch (2.5mm) 2kg, 1/8 inch (3.2mm) 2kg, 5/32 inch (4.0mm) 2kg |
Sizes & pricing
Every option with its part number and price. Select one to load it into the cart above.
| Option | SKU | Price | Select |
|---|---|---|---|
| Atlantic / 3/32 inch (2.5mm) 2kg | MWA316L25 | $79.20 | |
| Atlantic / 1/8 inch (3.2mm) 2kg | MWA316L32 | $77.60 | |
| Atlantic / 5/32 inch (4.0mm) 2kg | MWA316L40 | $76.00 |
Not sure this is the right part?
Tell us the machine, the material and the job. A welding specialist - not a call centre - will confirm fit and pricing, including volume and trade quotes.
