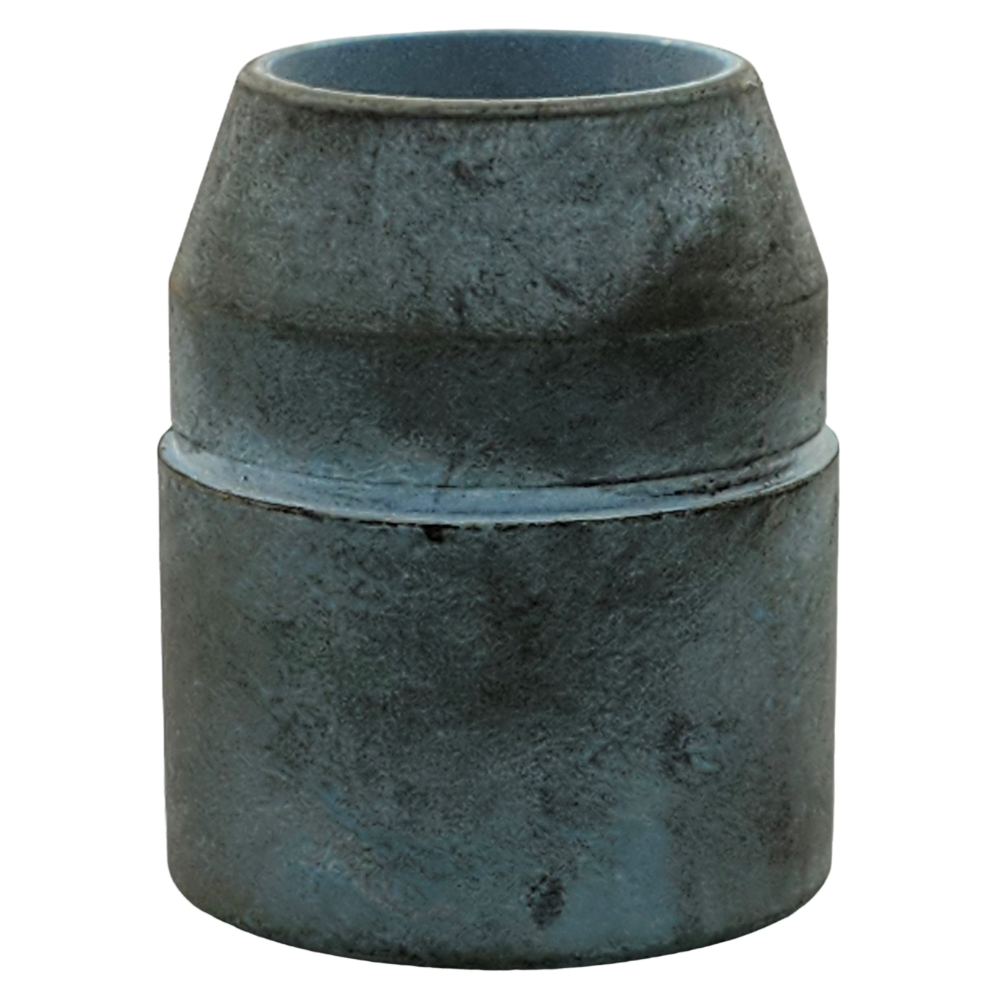

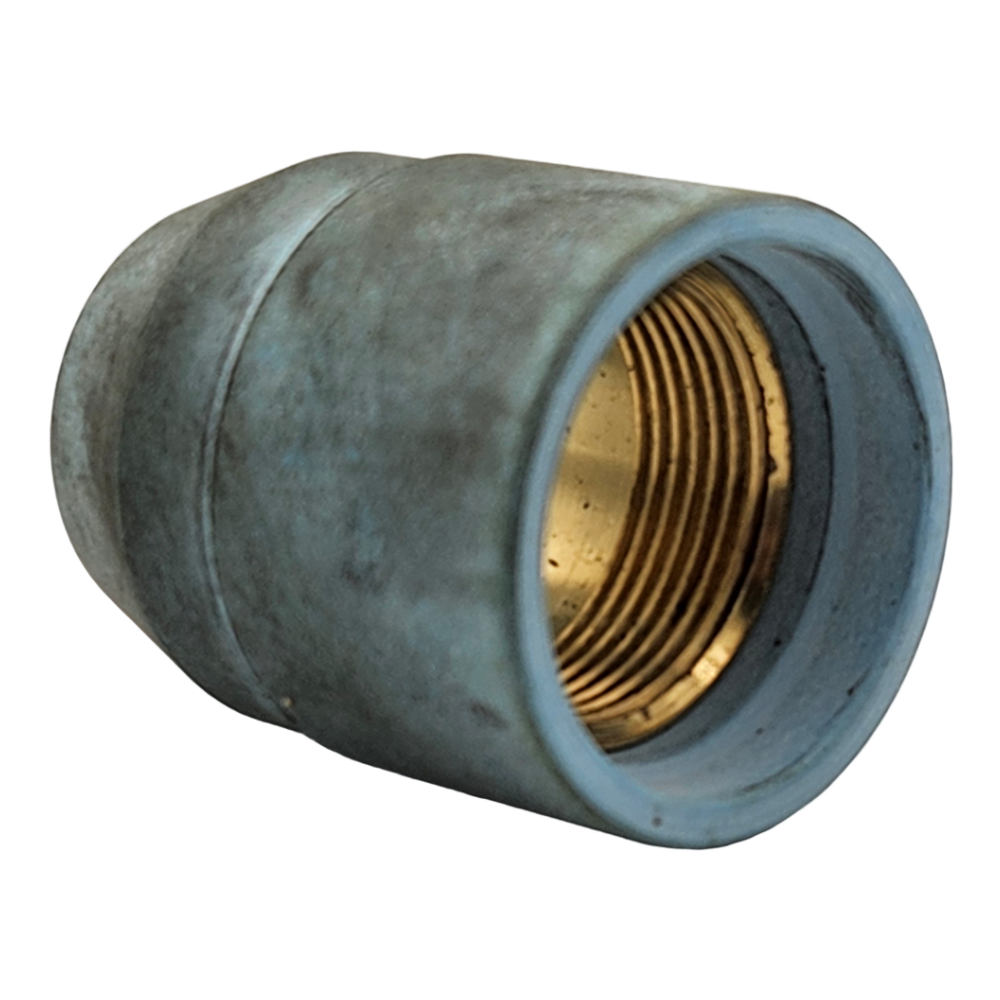

PT-32 Heat Shield 0558001957 – Plasma Torch Replacement Part

It's the outer cup of the ESAB PT-32 torch head assembly, covering the nozzle and electrode at the front of the torch. Beyond thermal protection, it also provides the drag surface used in drag-style cutting and helps set standoff distance from the workpiece, which is why ESAB also lists a "heavy-duty drag" version of this shield for the PT-32/32LHS.

It's built for the PT-32 torch (including the PT-32EH variant) and is used on the ESAB PowerCut 875, 1125, and 1500 plasma cutting packages.

Check the torch model stamped on your torch body or handle — PT-32 and PT-32EH share this heat shield, but ESAB also sells a separate "drag tip" heat shield variant for PT-32/32LHS setups. If your torch is a PT-32LHS running low-height-sensing consumables, confirm with your supplier before ordering, since LHS-specific parts aren't always interchangeable with standard PT-32 parts.

On the PT-32, the core consumable set is the electrode, nozzle, heat shield, and valve pin — torch bodies are typically sold without any of these installed, so all four are ordered separately. The heat shield is the outermost of these and doesn't require a separate retaining cap the way some Hypertherm torches do.

Visible warping, discoloration, pitting, or a shield that no longer seats securely over the nozzle are the practical signs to watch for. There's no manufacturer-stated replacement interval, so inspection-based replacement (rather than a fixed schedule) is the right approach.

A damaged or loose-fitting shield can expose the nozzle and electrode to more heat and spatter than they're designed for, which may contribute to faster wear on those consumables. It's not usually the first thing that causes a bad cut, but it's worth checking if your nozzle and electrode are wearing out faster than expected.

It's sold individually, which is typical for PT-32 heat shields since they wear more slowly than the nozzle or electrode.

Yes — since it's the part of the torch that contacts or rides near the workpiece during drag cutting, its condition and shape have a direct effect on how consistently you maintain the correct standoff distance, which in turn affects cut quality.

It's specified for the PowerCut 875, 1125, and 1500 packages built around the PT-32 torch. If you're running a different ESAB PowerCut model or a different torch (PT-38, PT-36, etc.), this is not the correct part — check your torch model before ordering.

ESAB and its distributors list more than one PT-32 shield variant, including a heavy-duty "drag tip" version intended for continuous drag-cutting use. 0558001957 is the standard replacement shield for PT-32/PowerCut 875/1125/1500; if you specifically need a drag-tip configuration, confirm that part number separately rather than assuming it's the same component.
