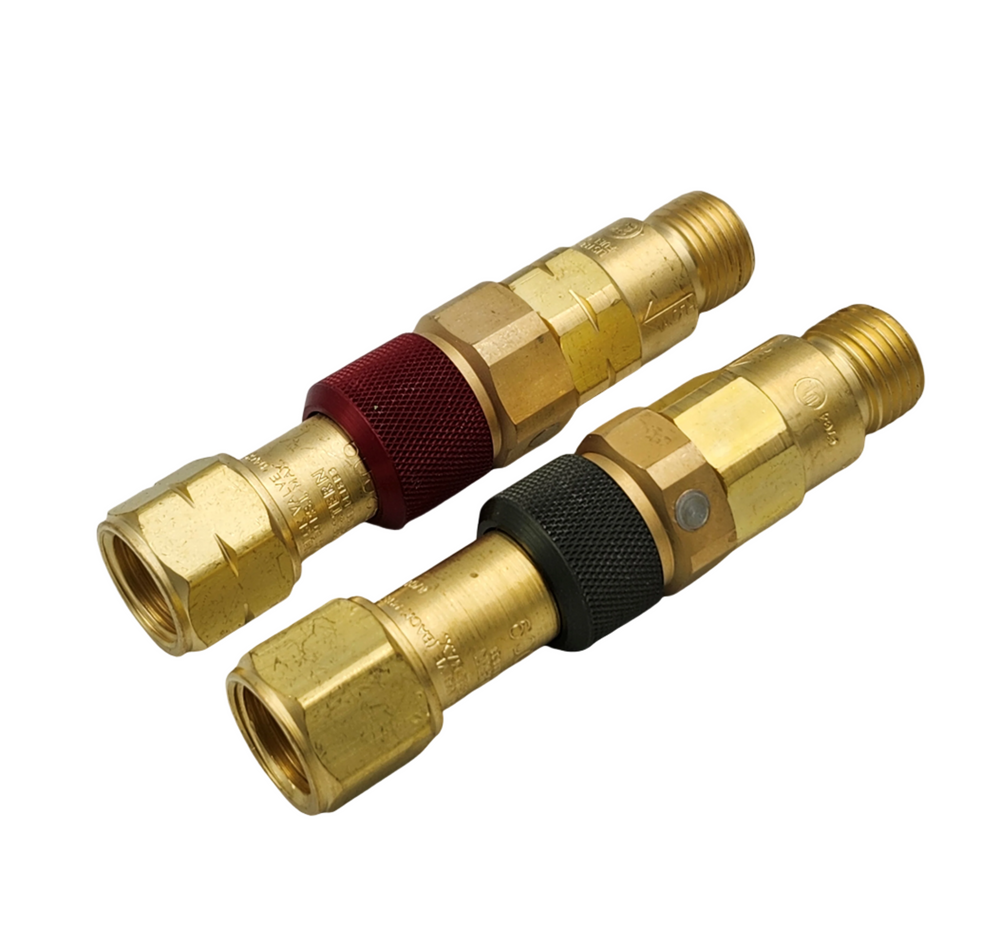

Western Enterprises QDB10 Quick-Connect Torch to Hose Set - Oxygen & Fuel Gas

Western Enterprises QDB10 Quick-Connect Torch to Hose Set - Oxygen & Fuel Gas

The Western Enterprises QDB10 Quick Connect Set is an essential tool for establishing a rapid and secure connection between an oxy-fuel torch and twin line gas hoses. This set, made of brass for durability, is designed to withstand over 10,000 operations, suggesting a service lifespan of 10 to 12 years under normal usage. It features a dual-seal socket connection for enhanced safety and built-in check valves that provide instant shutoff with minimal back pressure to prevent dangerous gas mix-ups and reverse flows. The set includes the Fuel Gas Quick Connect and the Oxygen Quick Connect, each color-coded and featuring non-interchangeable connectors (CGA-022 for oxygen with right-hand threading and CGA-023 for fuel gas with left-hand threading) to further ensure safety by eliminating the risks of accidental gas mixing. Each component can handle a maximum pressure of 200 PSI and exceeds CGA flow specifications, ensuring efficient operation. The user-friendly, spring-loaded locking mechanism enables a gas-tight seal with simple fingertip control. Installation and operating instructions are included.

Key Features

• Brass construction rated for over 10,000 operations (10-12 year service life)
• Dual-seal socket connection for enhanced safety
• Built-in check valves provide instant shutoff with minimal back pressure
• Color-coded, non-interchangeable connectors: CGA-022 (RH) oxygen, CGA-023 (LH) fuel gas
• Spring-loaded locking mechanism for gas-tight fingertip control
• Exceeds CGA flow specifications; rated to 200 PSI
• Includes installation and operating instructions

Technical Specifications

Part Number & Size Reference
