Overview

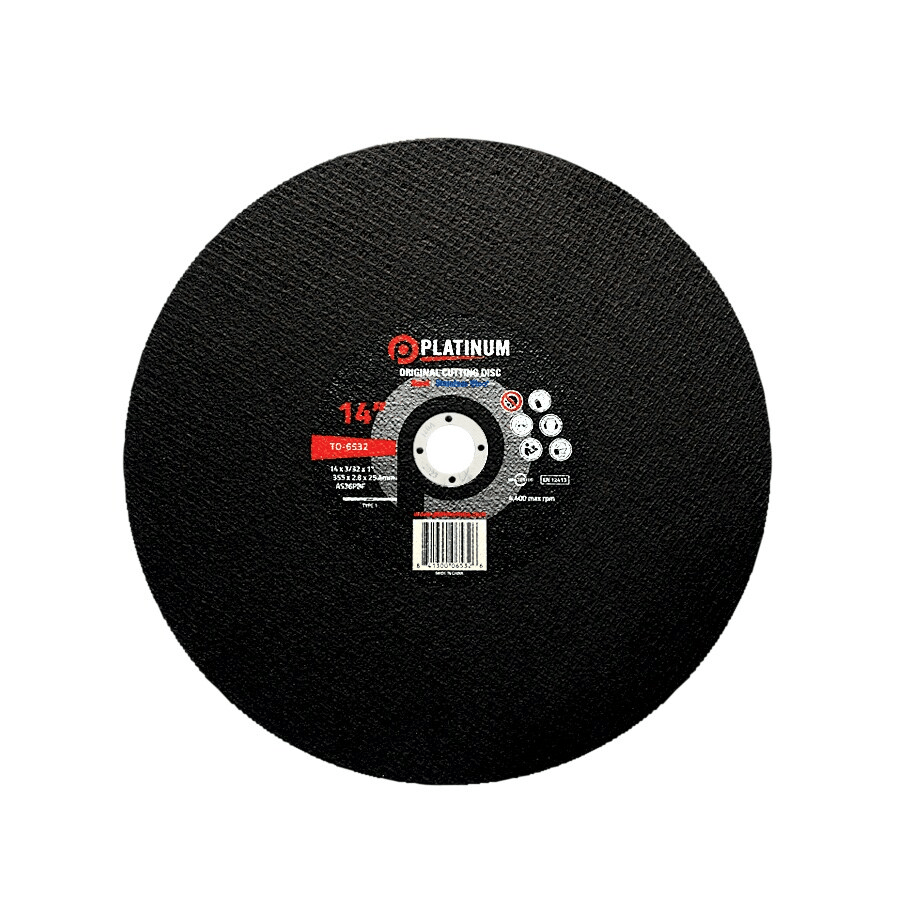

Platinum Original Stationary Saw Wheels – Type 1 (Flat Center)
Offers reliable high-performance for both industrial and professional settings, ensuring efficient and clean cuts. This cutting disc is specifically designed for stationary machines like chop saws and table saws. Its composition includes high-quality corundum (aluminium oxide) and dual full-coverage glass cloth layers, providing durability and a maximum lifetime. Particularly tailored for use on various types of steel such as carbon steel, structural steel (St37, S235JR, and 1.0037), enhancing its versatility in material applications. In terms of structure, it meets stringent safety standards set by EN 12413 and OSA, with a minimum side load capacity starting at 40 N, which increases with the disc diameter. Each disc's longevity is guaranteed with an embossed expiry date lasting three years, and its quality is consistently monitored through sophisticated in-process controls. To bolster safety, one in every thousand discs undergoes destructive testing. The straight shape (Shape 41) of the disc facilitates deeper insertion depths for extended cuts, making it ideal for handling structural steel, tool steel, and spring steels. During operation, the disc is recognized for its aggressive cutting capability, excellent stability, and low-vibration performance, making it a cost-effective choice for demanding cutting tasks.
Key Features
- Corundum (aluminium oxide) abrasive with dual full-coverage glass cloth layers
- Meets EN 12413 and OSA safety standards; 1-in-1000 discs destructively tested
- Minimum side load capacity of 40 N, increasing with disc diameter
- Straight Shape 41 profile enables deeper insertion depths for extended cuts
- Aggressive cutting capability with excellent stability and low vibration
- 3-year embossed expiry date for guaranteed longevity
Technical Specifications
| Brand | Platinum |
| Product Type | Stationary Saw Wheel – Type 1 (Flat Center) |
| Abrasive | Corundum (Aluminium Oxide) |
| Bore | 1" |
| Certifications | EN 12413, OSA |
| Material Compatibility | Carbon Steel, Structural Steel (St37, S235JR, 1.0037), Tool Steel, Spring Steel |
Part Number & Size Reference
| Part Number / SKU | Size / Thickness |
| MW6530 | 12" / 3/32" |
| MW6532 | 14" / 3/32" |
Other Products
Razor Cutting Discs – Type 27 | Razor Plus Cutting Discs – Type 1 | Original Cutting Discs – Type 1 | Original Small Cutting Discs – Type 1 | Razor Zirconia Fiber Discs
Specifications
| Brand | Platinum |
|---|---|
| Product type | Abrasives |
| Diameter | 12 inch, 14 inch |
| Thickness | 3/32 inch |
Sizes & pricing
Every option with its part number and price. Select one to load it into the cart above.
| Option | SKU | Price | Select |
|---|---|---|---|
| 12 inch / 3/32 inch | MW6530 | $12.99 | |
| 14 inch / 3/32 inch | MW6532 | $14.99 |
