Overview

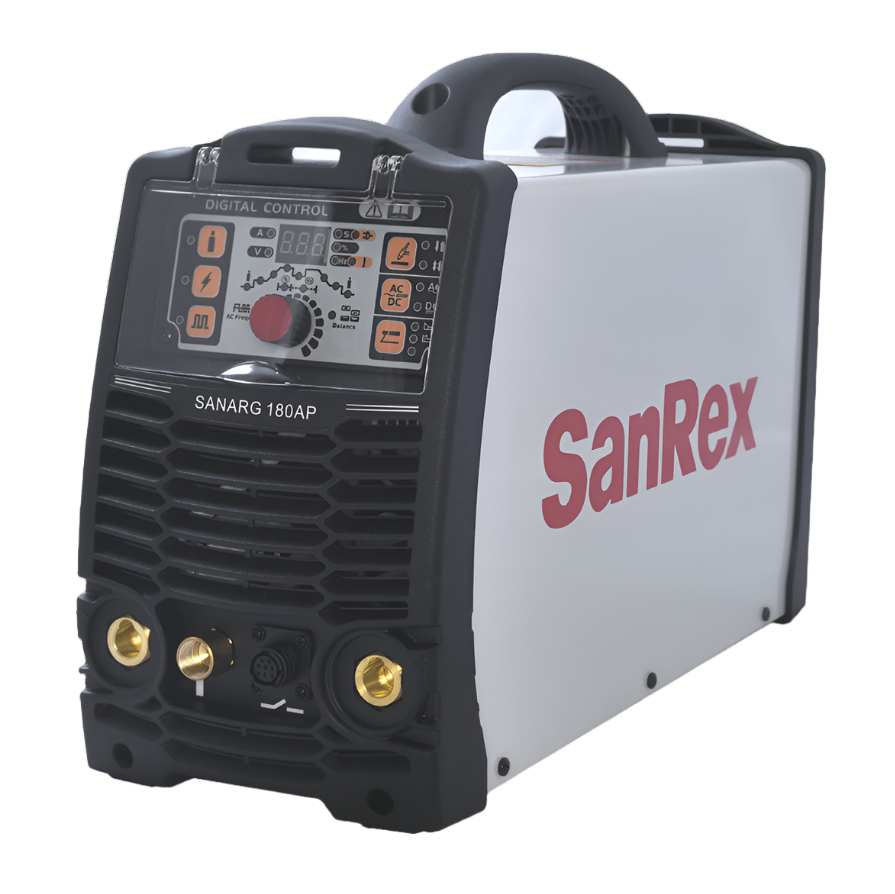

SanRex SanARG 180AP AC/DC TIG Welding Machine
The SanRex SanARG 180AP is a versatile AC/DC TIG welding machine for HF-Start TIG, Lift TIG, and STICK welding. Dual-voltage auto-switching. AC mode for aluminum, DC mode for steel and stainless. CSA certified.
Key Features
- AC and DC TIG + Stick welding
- HF-Start and Lift TIG arc start options
- AC mode for aluminum; DC mode for steel and stainless
- Dual-voltage: auto-switching 120/208–240 VAC
- CSA certified
- 3-year warranty
Technical Specifications
| Welding Processes | AC TIG, DC TIG, Stick |
| Arc Start | HF-Start, Lift TIG |
| Input Voltage | 120 / 208–240 VAC (Auto) |
| Certification | CSA |
| Warranty | 3 Years |
Part Number & Size Reference
| SanARG 180AP Machine – SKU MW180AP-U1DVP |
| Foot Pedal – SKU MWFC2000 |
Other Products
SanRex SanCut638 Plasma Cutter | SanRex SanStick 160S Portable Welder | SanRex SanMIG 200MF Multi Process | SanRex SanMIG 250MF Multi Process
Specifications
| Brand | SanRex |
|---|---|
| Product type | Machines |
| Select Item | SanARG 180AP Machine, Foot Pedal |
Sizes & pricing
Every option with its part number and price. Select one to load it into the cart above.
| Option | SKU | Price | Select |
|---|---|---|---|
| SanARG 180AP Machine | MW180AP-U1DVP | $3,255.95 | |
| Foot Pedal | MWFC2000 | $539.95 |
Frequently asked questions
What welding processes does the SanARG 180AP support?
The SanARG 180AP is an AC/DC TIG welding machine that also supports Stick welding, giving it AC TIG, DC TIG, and Stick capability all in one unit. This combination makes it a versatile choice for shops that need to weld multiple metal types without switching machines.
Can the SanARG 180AP weld aluminum?
Yes — its AC TIG mode is specifically designed for welding aluminum, which requires alternating current to break through the metal's oxide layer and produce a clean weld. For anyone specifically searching for an aluminum TIG welder, the AC mode on this machine is built for that purpose.
Can the SanARG 180AP weld steel and stainless steel?
Yes, its DC TIG mode is designed for steel and stainless steel welding, giving the machine the ability to handle both ferrous metals and aluminum depending on which mode is selected.
What arc start methods does the SanARG 180AP offer?
This machine offers both HF-Start (high-frequency) and Lift TIG arc starts, giving operators the choice between a contactless high-frequency start for precision work and a simpler touch-start Lift TIG method depending on the application.
What input voltage does the SanARG 180AP use?
The SanARG 180AP runs on dual-voltage 120/208–240 VAC with automatic switching, allowing it to adapt to whatever power source is available at the shop or job site.
Is the SanARG 180AP certified for use in Canada?
Yes, it's CSA certified, meeting recognized Canadian safety standards for welding equipment.
What warranty comes with the SanARG 180AP?
The SanARG 180AP includes a 3-year manufacturer warranty, providing solid coverage for an AC/DC TIG machine used across aluminum and steel welding applications.
Is a foot pedal available for the SanARG 180AP?
Yes, a TIG torch kit with a foot pedal accessory is available for the SanARG 180AP, giving operators amperage control at their foot for more precise TIG welding, which is especially useful for aluminum work.
Does the SanARG 180AP do Stick welding too?
Yes — alongside its AC and DC TIG capability, the SanARG 180AP also supports Stick welding, adding flexibility for general repair and structural work beyond TIG-specific applications.
Can the SanARG 180AP switch between AC and DC welding without needing a second machine?
Yes — the SanARG 180AP is built to handle both AC TIG for aluminum and DC TIG or Stick for steel and stainless steel in the same unit, so you don't need separate machines for aluminum versus ferrous metal welding. Being able to switch modes on one machine is one of the main reasons shops choose an AC/DC TIG welder over a DC-only model.
