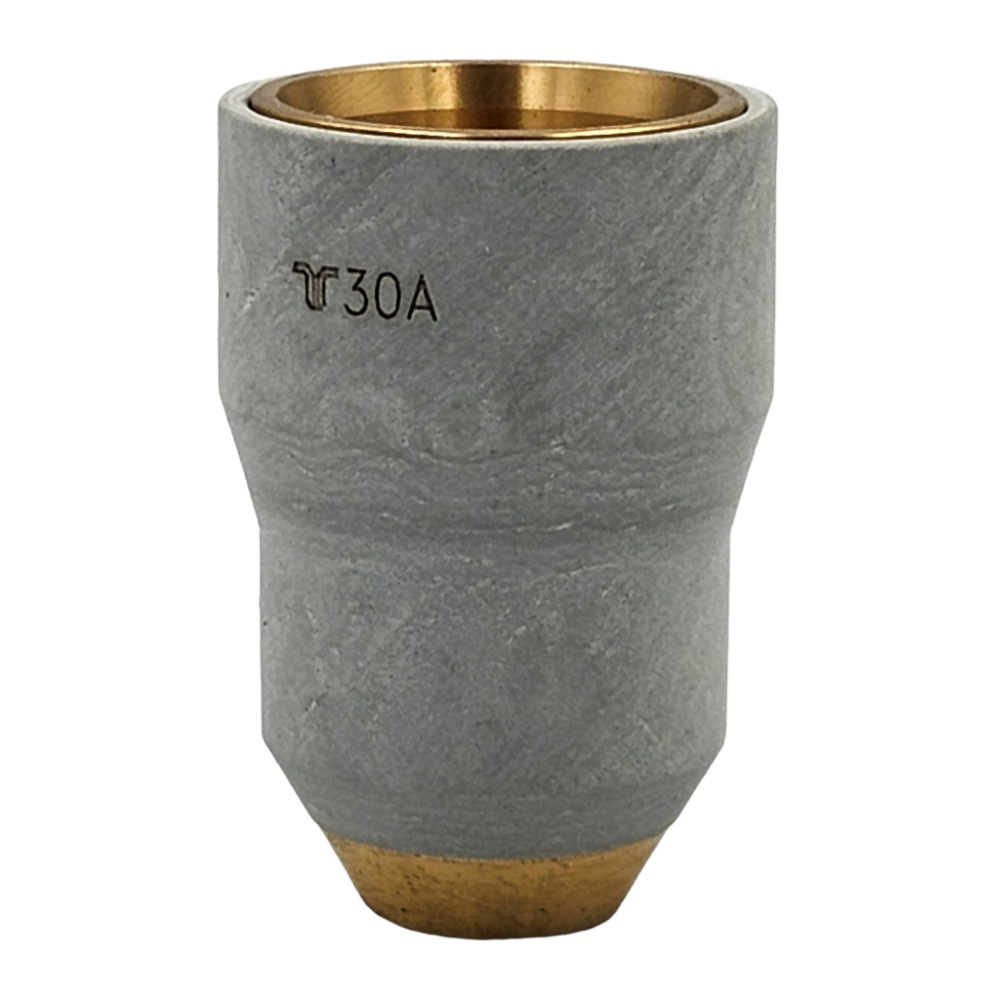

220483 Plasma Retaining Cap – Powermax 30/45 T30v/T45v Replacement

$39.00

CAD · Taxes and shipping calculated at checkout

  • Genuine-fit replacement retaining cap for Hypertherm® Powermax® 30 and 45 systems
  • Designed for T30v™ and T45v™ hand torches
  • Extremely durable construction that exceeds industry requirements
  • Keeps the swirl ring and nozzle correctly positioned

905 919 1177
  • Free standard shipping on orders $189+ (before taxes) – ships Canada-wide from Toronto
  • Free shipping $189+Canada-wide, tracked delivery to shops and job sites
  • Toronto showroomSee it in person, or collect at the counter
  • Expert supportTalk to people who weld, not a script
  • Secure checkoutEncrypted payment through Shopify

Overview

Thermacut 220483 Plasma Retaining Cap – Powermax 30/45 T30v/T45v Replacement

PART NUMBER
220483
SYSTEM
Powermax® 30/45
TORCH
T30v/T45v
TYPE
Retaining Cap
BRAND
Thermacut

The Thermacut 220483 Retaining Cap is a replacement part suitable for Hypertherm® Powermax® 30 and Powermax® 45 plasma cutting systems, specifically for the T30v™ and T45v™ hand torches. This extremely durable, long-lasting retaining cap exceeds industry requirements and is a crucial component that keeps the swirl ring and nozzle correctly positioned while managing coolant flow. The composite front of the cap ensures the shield is installed concentrically onto the nozzle orifice, which then directs secondary gas to the shield for consistent, reliable cutting. Keep your Powermax® 30/45 torch running right — order genuine-fit Thermacut 220483 retaining caps from MapleWeld today.

Key Features

  • Genuine-fit replacement retaining cap for Hypertherm® Powermax® 30 and 45 systems
  • Designed for T30v™ and T45v™ hand torches
  • Extremely durable construction that exceeds industry requirements
  • Keeps the swirl ring and nozzle correctly positioned
  • Manages coolant flow through the torch
  • Composite front ensures the shield installs concentrically onto the nozzle orifice
  • Directs secondary gas to the shield for consistent cutting

Technical Specifications

Part Number 220483
Component Type Retaining Cap
Compatible System Hypertherm® Powermax® 30 / 45
Compatible Torch T30v™ / T45v™ (hand torch)
Construction Composite front, exceeds industry durability requirements
Brand Thermacut (genuine-fit aftermarket)

Part Number & Size Reference

MW220483 — Retaining Cap (Powermax® 30/45, T30v/T45v)

Other Products

Thermacut 220948 Plasma Shield 45A, Ohmic, FineCut® | 120600 Retaining Cap | 120826 Nozzle 40A (5-Pack) | 120576 Swirl Ring (2-Pack)

Specifications

220483 Plasma Retaining Cap – Powermax 30/45 T30v/T45v Replacement - specifications
BrandThermacut
Product typePlasma Cutting
SKUMW220483

Frequently asked questions

What is the 220483 retaining cap used for?

It secures the swirl ring and nozzle in correct position inside the torch, manages coolant/secondary gas flow, and lets the shield seat concentrically onto the nozzle orifice. It's rated for a 15–30A operating range on the T30v and T45v/m torches.

Does 220483 cover the full amperage range of a Powermax 45?

No — this specific cap is rated 15–30A. It's the correct cap for the full range of a Powermax 30, and for lower-amperage cutting (up to 30A) on a Powermax 45. For full-range 45A cutting on a Powermax 45, a different retaining cap (rated 15–45A) is required.

What's the difference between 220483 and the 45A-rated Powermax 45 retaining cap?

220483 tops out at 30A, while Hypertherm's higher-amperage cap for the T45v/m torch is rated 15–45A and is the correct choice if you regularly cut at settings above 30A on a Powermax 45. Using the 30A-rated cap above its rated range isn't recommended.

Which torches use the 220483 retaining cap?

The T30v and T45v/m torches, used on Powermax 30 and Powermax 45 systems respectively.

How do I know if my Powermax 45 needs the 220483 cap or the higher-amperage version?

It comes down to what amperage you actually cut at. If you regularly run above 30A on your Powermax 45, the 15–45A-rated cap is the better match; if your work stays at or below 30A, 220483 is appropriate and commonly used.

What does the composite front of the retaining cap do?

It ensures the shield installs concentrically over the nozzle orifice, which keeps secondary gas flow even around the nozzle — uneven seating here can affect arc stability and cut quality.

How long does a retaining cap typically last compared to a nozzle or electrode?

It's generally a longer-lasting component than the nozzle or electrode since it isn't in the direct arc path, but it should still be inspected periodically for cracking, warping, or thread wear rather than assumed to be maintenance-free.

What other consumables work with the 220483 retaining cap?

It works with the swirl ring, nozzle, and shield rated for the same 15–30A range on T30v/T45v/m torches — using it with mismatched-amperage consumables isn't recommended.

Is 220483 sold individually?

Yes.

Can I use 220483 on a Powermax 65, 85, or 105 system?

No — it's specified for the T30v/T45v/m torches on Powermax 30/45 systems. Powermax 65/85/105 systems use different torches (such as Duramax) with their own retaining cap parts.
