Overview

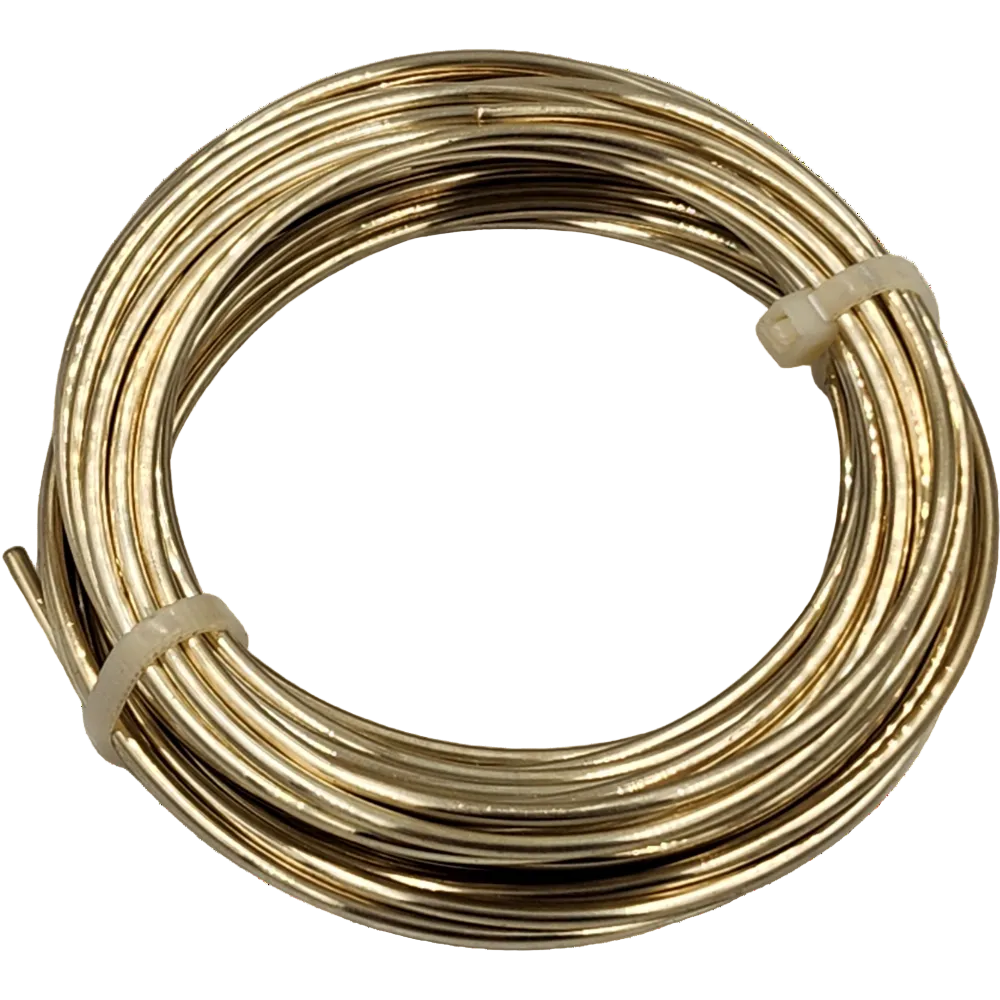

MapleWeld 45% Silver Brazing Wire BAg-5 Cadmium-Free
This 45% Silver Brazing Alloy Wire is an excellent general-purpose alloy highly valued for its performance in various applications. Its chemical composition of Ag 45% / Cu 30% / Zn 25% contributes to its superior characteristics, including good ductility and exceptional capillary flow, ensuring strong, tight joints. Specified as AWS BAg-5 with a Solidus of 1225°F and Liquidus of 1370°F. Flux paste is required.
Key Features
- Cadmium-free general-purpose silver brazing alloy
- Good ductility and exceptional capillary flow for strong, tight joints
- Controlled flow characteristics with a Fluidity Rating of 6.5
- Suitable for brazing copper, steel, stainless steel, and brass
- Flux paste required for all applications
Technical Specifications
| Chemical Composition | Ag 45% / Cu 30% / Zn 25% |
| AWS Classification | BAg-5 |
| Color | Silver to light yellow |
| Solidus | 1225°F |
| Liquidus | 1370°F |
| Fluidity Rating | 6.5 |
| Flux Required | Yes — flux paste required |
Part Number & Size Reference
| 1/16" (10 Troy Oz) – SKU MWSS4516 – $589.00 CAD |
| 3/32" (10 Troy Oz) – SKU MWSS4524 – $589.00 CAD |
Other Products
Stay-Silv 15% Brazing Alloy | 15% Silver Brazing Rods 1kg | Stay-Silv White Flux
Specifications
| Brand | MapleWeld |
|---|---|
| Product type | Copper Brazing |
| Varients | 1/16 inch 10 Troy Ounce, 3/32 inch 10 Troy Ounce |
Sizes & pricing
Every option with its part number and price. Select one to load it into the cart above.
| Option | SKU | Price | Select |
|---|---|---|---|
| 1/16 inch 10 Troy Ounce | MWSS4516 | $649.00 | |
| 3/32 inch 10 Troy Ounce | MWSS4524 | $629.00
|
Not sure this is the right part?
Tell us the machine, the material and the job. A welding specialist - not a call centre - will confirm fit and pricing, including volume and trade quotes.
You may also need
-

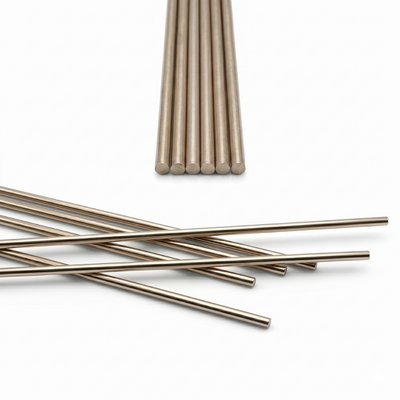

MapleWeldMapleWeld 15% Silver Brazing Rods BCuP-5
