Overview

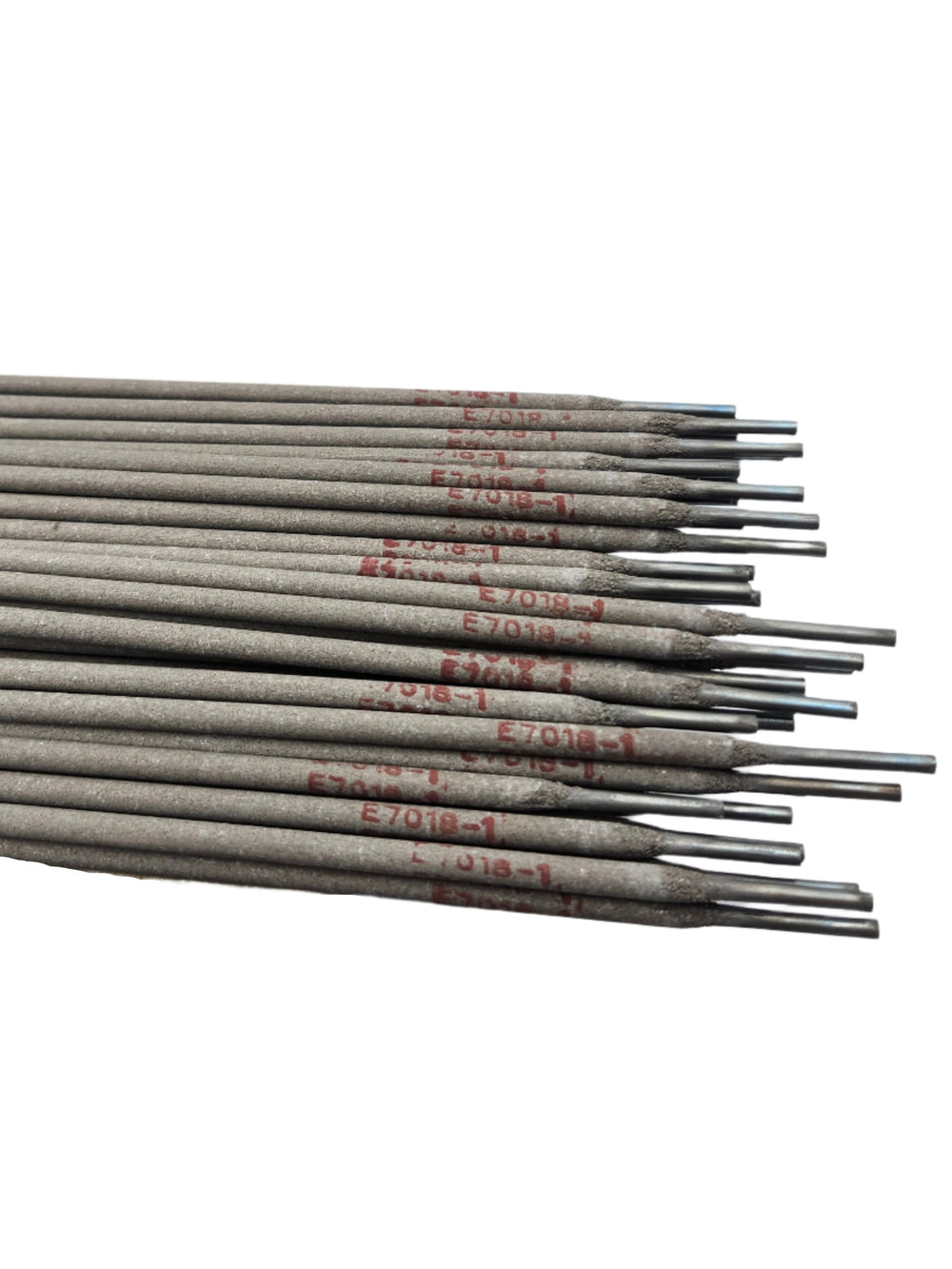

E7018 Low-Hydrogen Steel Stick Electrodes – 5/32" (4.0mm)
MapleWeld carries the 5/32" (4.0mm) E7018/E7018-1 low-hydrogen stick electrode, a coated electrode used across all industries for welding carbon and low alloy steels. It delivers excellent strength and toughness, a smooth and stable arc with minimal spatter, superior arc starting and re-strike, and easy slag removal for high-quality, X-ray quality welds. Choose from Atlantic, Executive, BÖHLER, Lincoln Electric, and Sorex in the pack size that suits your shop, shipped from our Toronto, ON warehouse across Canada.
Key Features
- Low-hydrogen coated electrode for carbon and low alloy steels
- Excellent strength and toughness for robust welds
- Smooth, stable arc with minimal spatter
- Superior arc starting and re-strike capability
- Easy slag removal
- Produces high-quality, X-ray quality welds
- Runs all-position on AC or DC reverse polarity current
- Recommended for medium-grade carbon steels without preheat
- Effective on cold-rolled steels prone to porosity with conventional electrodes
Technical Specifications
| AWS Classification | E7018 / E7018-1 |
| Diameter | 5/32" (4.0mm) |
| Coating Type | Low-hydrogen, iron powder |
| Current Type | AC or DC, reverse polarity |
| Welding Position | All positions |
| Preheat | Not required for medium-grade carbon steel |
| Weld Quality | X-ray quality |
| Typical Applications | Structural steel, general construction, pressure vessels, boilers, pipes, bridges, power plants, marine industry, offshore rigs, steel structures, tack welds for tubular wire |
Part Number & Size Reference
Other Products
E7018 Electrodes – 1/8" (3.2mm) | E7018 Electrodes – 3/32" (2.4mm) | E7018 Electrodes – 3/16" (4.8mm) | E6010 Electrodes – 5/32" | E6011 Electrodes – 5/32" | E6013 Electrodes – 5/32" | ER70S-6 MIG Welding Wire | ER70S-6 TIG Welding Rods
Specifications
| Product type | Steel Welding |
|---|---|
| Brand | Atlantic, Executive, BÖHLER, Lincoln Electric, Sorex |
| Pack Size | 5.0 kg (11.0 lbs.), 4.5 kg (10.0 lbs.), 5.9 kg (13.0 lbs.) |
Sizes & pricing
Every option with its part number and price. Select one to load it into the cart above.
| Option | SKU | Price | Select |
|---|---|---|---|
| Atlantic / 5.0 kg (11.0 lbs.) | MWA701840 | $38.90 | |
| Executive / 4.5 kg (10.0 lbs.) | MWEX701840 | $63.00 | |
| BÖHLER / 5.9 kg (13.0 lbs.) | MW7018115613BW | $99.00 | |
| Lincoln Electric / 5.0 kg (11.0 lbs.) | MW7018115620XLE | $89.00 | |
| Sorex / 5.0 kg (11.0 lbs.) | MWS7018532 | $37.90 |
