Overview

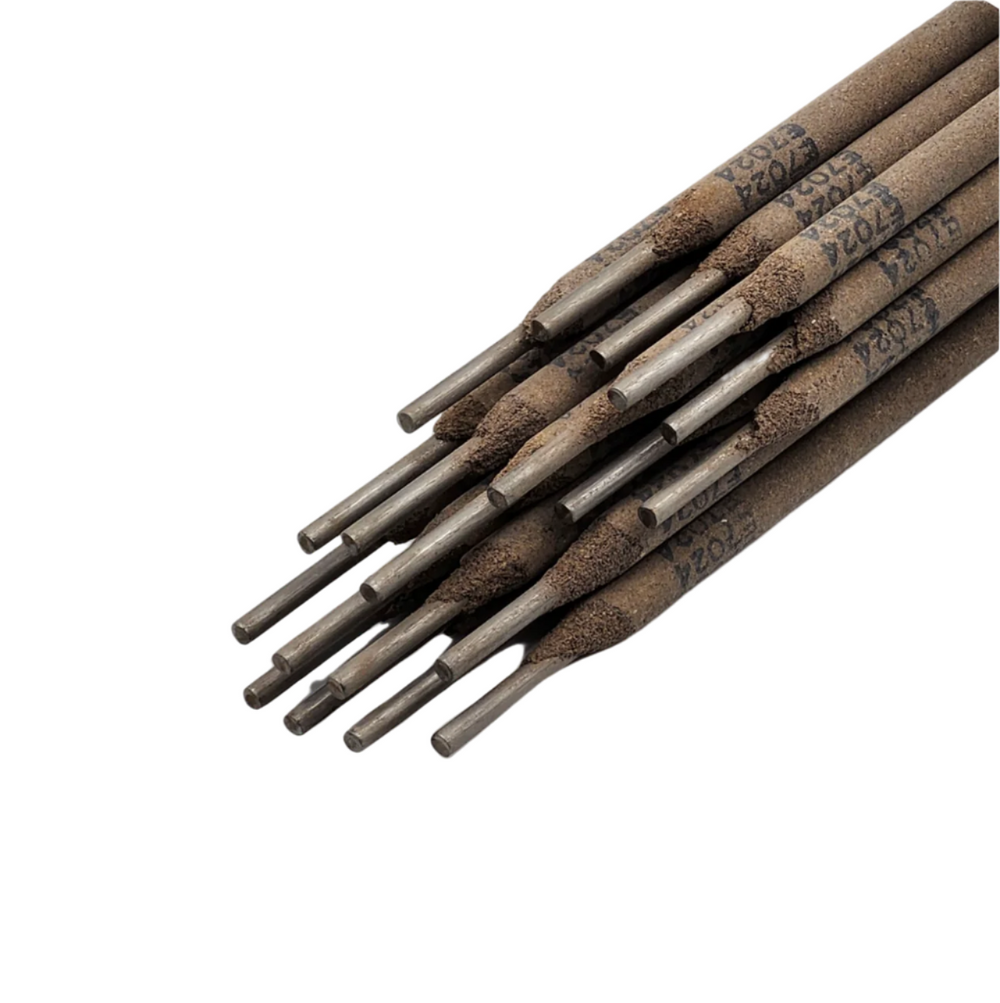

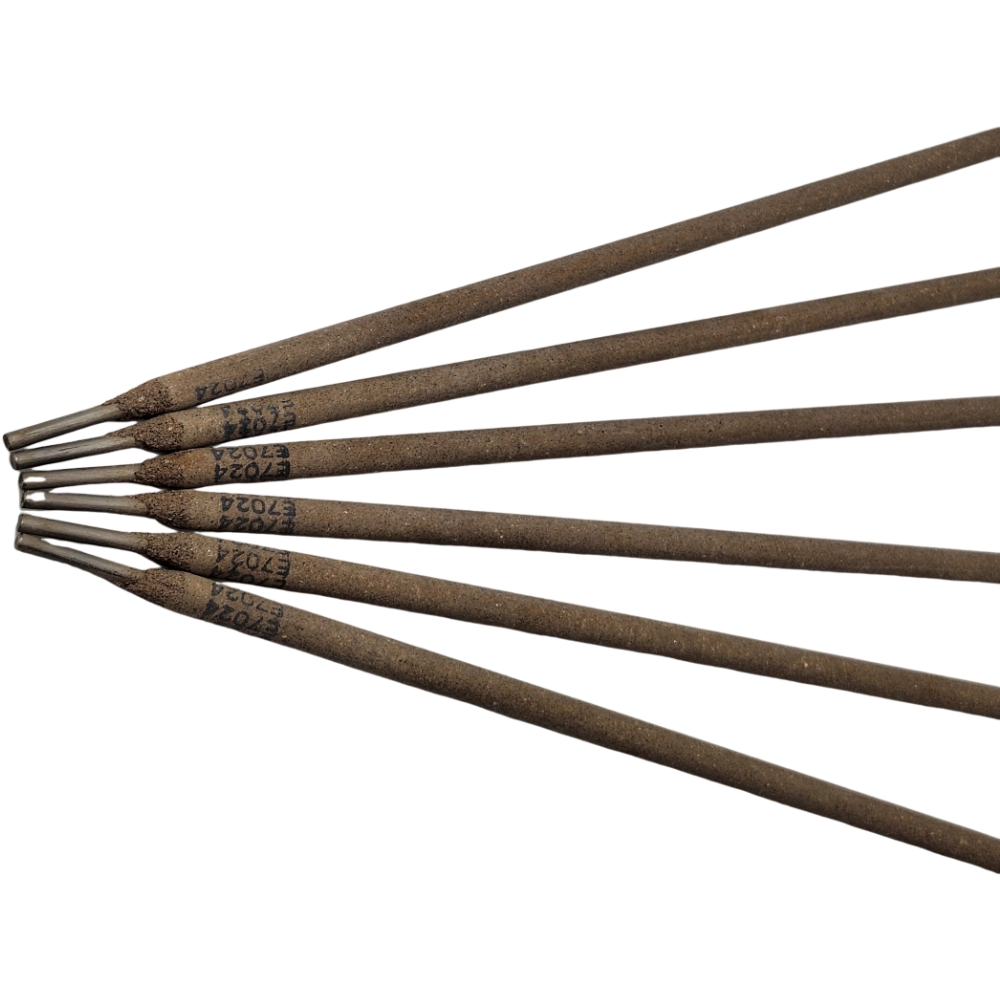

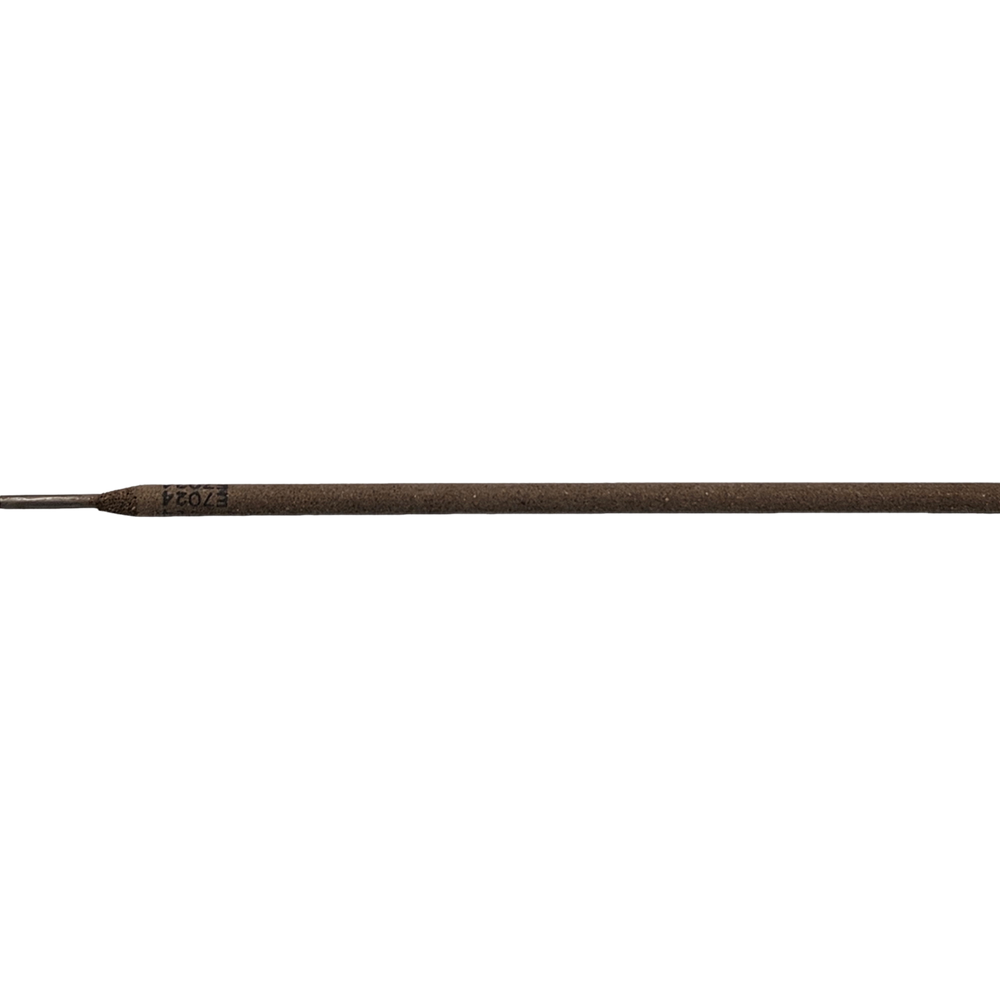

E7024 Steel Stick Electrodes
E7024 electrodes are expertly crafted for high-speed, efficient welding in heavy-duty construction environments. With a special iron powder, titania coating, these electrodes provide a high deposition rate for horizontal and downhand welding, making them a top choice for shipbuilding, bridge construction, and other structural steel applications. Self-cleaning slag and excellent bead appearance reduce work time and enhance the finish, ensuring each weld holds strong and looks clean and professional. Available in 1/8" and 5/32" diameters, both in 5 kg (11.0 lb.) packs.
Key Features
- Special iron powder, titania coating
- High deposition rate for horizontal and downhand welding
- Self-cleaning slag for faster clean-up
- Excellent bead appearance
- Reliable mechanical properties
- Top choice for shipbuilding, bridge construction, and structural steel work
Technical Specifications
| AWS Classification | E7024 |
| Coating Type | Iron powder, titania |
| Welding Position | Horizontal and downhand |
| Deposition Rate | High |
| Available Diameters | 1/8" (3.2mm), 5/32" (4.0mm) |
| Typical Applications | Shipbuilding, bridge construction, structural steel, heavy-duty construction |
Part Number & Size Reference
| 1/8" (3.2mm) – 5 kg (11.0 lbs.) – SKU MWA702418 |
| 5/32" (4.0mm) – 5 kg (11.0 lbs.) – SKU MWA7024532 |
Other Products
Specifications
| Brand | Atlantic |
|---|---|
| Product type | Steel Welding |
| Diameter | 1/8 inch (3.2mm), 5/32 inch (4.0mm) |
| Pack Size | 5 kg (11.0 lbs.) |
Sizes & pricing
Every option with its part number and price. Select one to load it into the cart above.
| Option | SKU | Price | Select |
|---|---|---|---|
| 1/8 inch (3.2mm) / 5 kg (11.0 lbs.) | MWA702418 | $56.16 | |
| 5/32 inch (4.0mm) / 5 kg (11.0 lbs.) | MWA7024532 | $55.82 |
