MapleWeldSafety Gear & EquipmentSKU MWPAPR-3BA

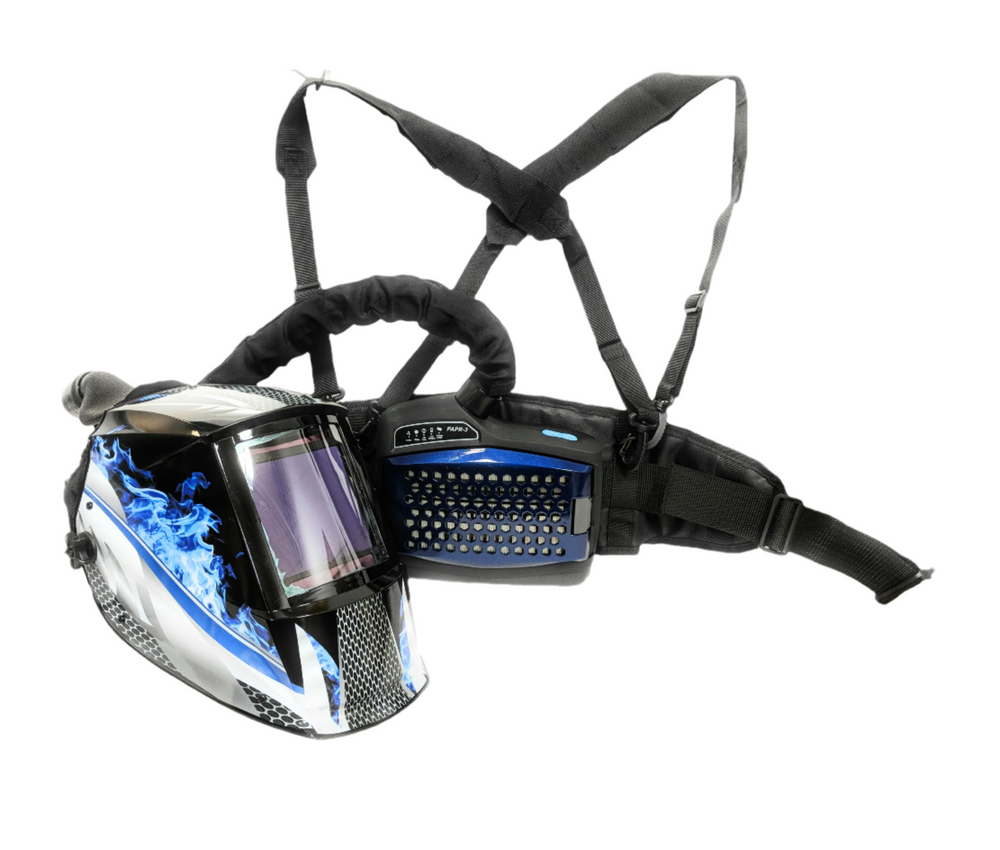

MapleWeld Blue Arc PAPR Auto-Darkening Welding Helmet – Powered Air Purifying Respirator Helmet

$1,049.30 $1,499.00 Save $449.70

30% OFFSurplus Inventory Sale · discount applied automatically at checkout

CAD · Taxes and shipping calculated at checkout

  • Purified Air Powered Respirator (PAPR) system for constant filtered airflow
  • Filtration precision of 0.3μm with 99.97% efficiency
  • Removable Li-ion battery with low/high speed settings
  • Audible, visible, and vibration warnings for low power, low air-flow, and blocked filters
Select Item: PAPR Helmet with EXTRA Battery and Filter

905 919 1177
  • Ships Canada-wide from our Toronto warehouse
  • Canada-wide shippingTracked delivery to shops and job sites
  • Toronto showroomSee it in person, or collect at the counter
  • Expert supportTalk to people who weld, not a script
  • Secure checkoutEncrypted payment through Shopify

Overview

MapleWeld Blue Arc PAPR Auto-Darkening Welding Helmet – Powered Air Purifying Respirator Helmet

FILTRATION
0.3µm / 99.97%
SHADE RANGE
DIN 5-9 / 9-13
OPTICAL RATING
1/1/1/1
POWER
Removable Li-ion Battery
CERTIFICATIONS
CSA Z94.3, ANSI Z87.1-2015

The MapleWeld Blue Arc PAPR Auto-Darkening Helmet is a groundbreaking solution merging respiratory protection with cutting-edge welding technology. Designed to shield against dust particles, solid and liquid aerosols, and smoke, this helmet features a Purified Air Powered Respirator (PAPR) system ensuring a constant flow of filtered air. Portable and lightweight, it's equipped with a removable Li-ion battery offering extended usage on low and high speeds, with audible, visible, and vibration warnings for low power, low air-flow, and blocked filters. With a robust filtration precision of 0.3μm and efficiency rating of 99.97%, it guarantees pristine air quality in any environment. A durable suspension system with belt and shoulder straps ensures optimal fit and stability, and rapid charging capabilities with long-lasting battery life ensure uninterrupted performance. The Ultra HD Quality Electro-optical technology from Germany delivers True Color vision and a 1/1/1/1 rating, with step-less sensitivity adjustment between Welding and Grinding modes, automatic power on/off via solar cell technology and a replaceable CR2450 lithium battery, UV/IR protection rated DIN 16, Light Shade DIN 3.5, and Dark Shade DIN 5-9, 9-13. Light-to-dark switching is a lightning-fast 1/30,000s, with dark-to-light delay steplessly adjustable from 0.1 to 1.0s, and four arc sensors prioritize your safety and comfort. Conforms to CSA Z94.3 and ANSI Z87.1-2015 standards.

Key Features

  • Purified Air Powered Respirator (PAPR) system for constant filtered airflow
  • Filtration precision of 0.3μm with 99.97% efficiency
  • Removable Li-ion battery with low/high speed settings
  • Audible, visible, and vibration warnings for low power, low air-flow, and blocked filters
  • Durable suspension system with belt and shoulder straps
  • Rapid charging with long-lasting battery life
  • True Color vision, 1/1/1/1 optical rating, Ultra HD Electro-optical technology (Germany)
  • Step-less Weld/Grind mode sensitivity adjustment
  • UV/IR protection rated DIN 16; Dark Shade DIN 5-9, 9-13
  • Light-to-dark switching in 1/30,000s; delay adjustable 0.1-1.0s
  • Conforms to CSA Z94.3 and ANSI Z87.1-2015 standards

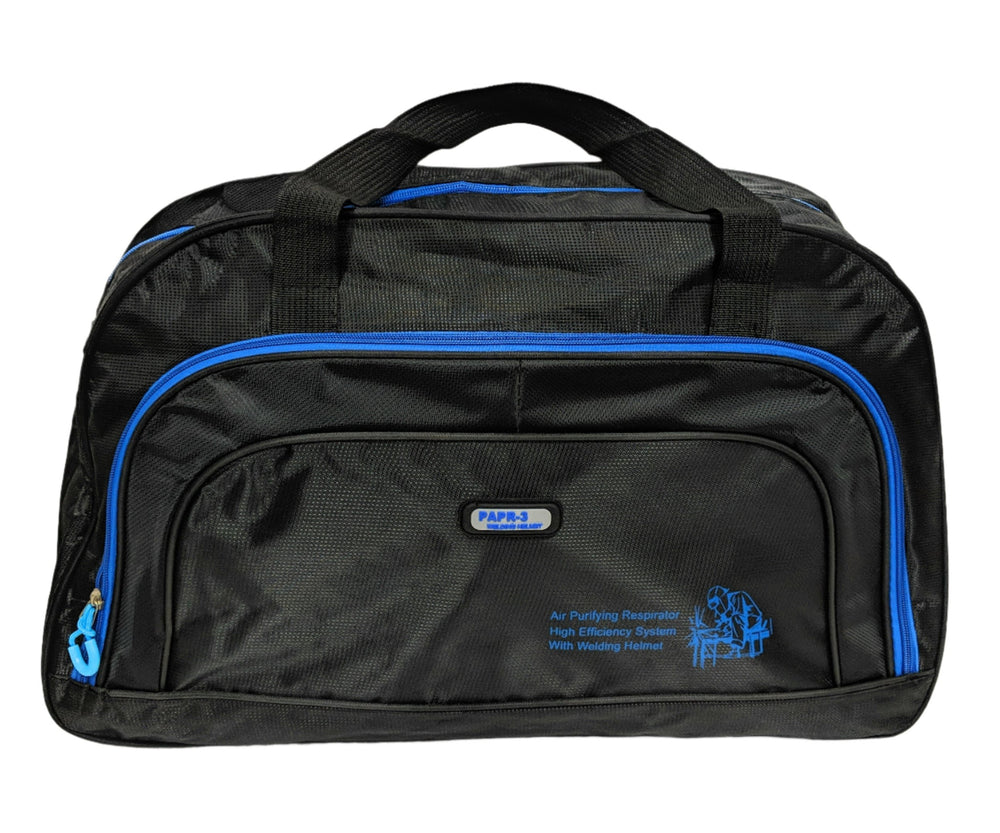

  • Includes carry bag and pair of additional clear safety plates

Technical Specifications

Respiratory System Purified Air Powered Respirator (PAPR)
Filtration 0.3μm precision, 99.97% efficiency
Battery Removable Li-ion, rapid charging
Warnings Audible, visible, vibration (low power, low airflow, blocked filter)
Optical Rating 1/1/1/1
Shade Range Light DIN 3.5; Dark DIN 5-9, 9-13
UV/IR Protection DIN 16
Switching Speed 1/30,000 second
Certifications CSA Z94.3, ANSI Z87.1-2015
Package Contents 1 PAPR helmet, 1 carry bag, 1 pair additional clear safety plates

Part Number & Size Reference

PAPR Helmet w/ Extra Battery & Filter MWPAPR-3BA $1,099.00 CAD

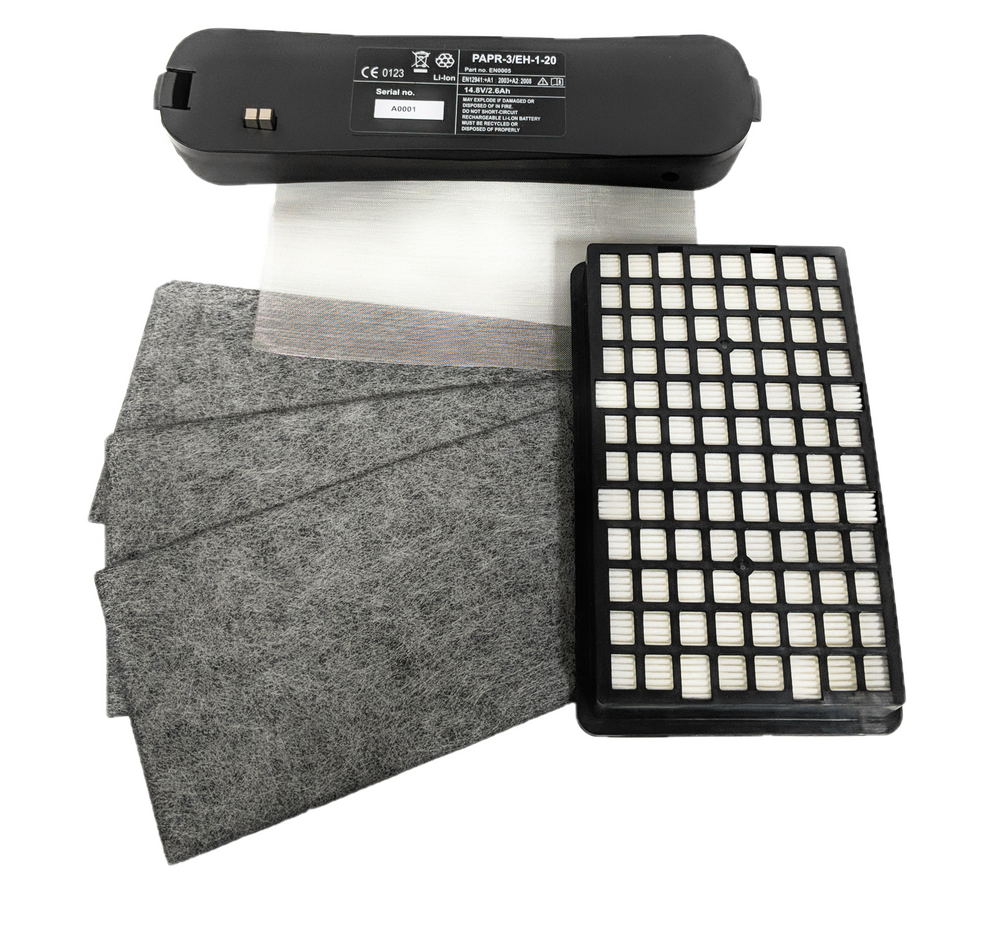

Primary Filter MWPAPR-3PF $9.99 CAD
High Efficiency Filter MWPAPR-3HE $69.00 CAD
Lithium Battery Board MWPAPR-3BB $159.00 CAD

Other Products

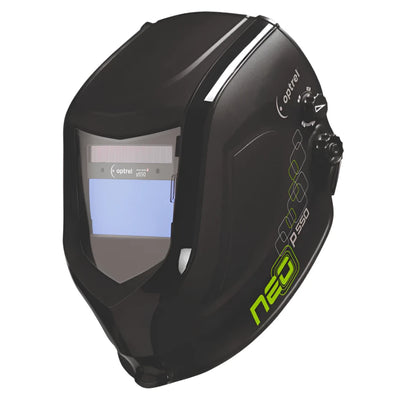

Optrel NEO P550 Auto-Darkening Welding Helmet | PowerWeld Expert Series Auto-Darkening Welding Helmet | MapleWeld VisionGuard Series Auto-Darkening Helmet

Specifications

MapleWeld Blue Arc PAPR Auto-Darkening Welding Helmet – Powered Air Purifying Respirator Helmet - specifications
BrandMapleWeld
Product typeSafety Gear & Equipment
Select ItemPAPR Helmet with EXTRA Battery and Filter, Primary filter, High efficiency filter, Lithium battery board

Sizes & pricing

Every option with its part number and price. Select one to load it into the cart above.

Option SKU PriceSelect
PAPR Helmet with EXTRA Battery and Filter MWPAPR-3BA$1,049.30 $1,499.00
Primary filter MWPAPR-3PF$14.00 $19.99
High efficiency filter MWPAPR-3HE$62.30 $89.00
Lithium battery board MWPAPR-3BB$139.30 $199.00

Not sure this is the right part?

Tell us the machine, the material and the job. A welding specialist - not a call centre - will confirm fit and pricing, including volume and trade quotes.

905 919 1177
