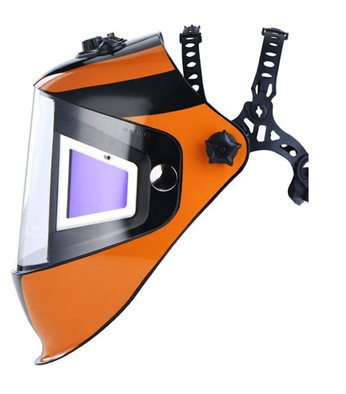

Maple Eagle Auto-Darkening Welding Helmet – Triple LCD True Color Welding Helmet
- Free standard shipping on orders $189+ (before taxes) – ships Canada-wide from Toronto
- Free shipping $189+Canada-wide, tracked delivery to shops and job sites
- Toronto showroomSee it in person, or collect at the counter
- Expert supportTalk to people who weld, not a script
- Secure checkoutEncrypted payment through Shopify
Maple Industrial Products Inc.
Request a Quotation
Volume pricing, freight, and lead times for Canadian trade accounts. We reply within one business day.
Overview

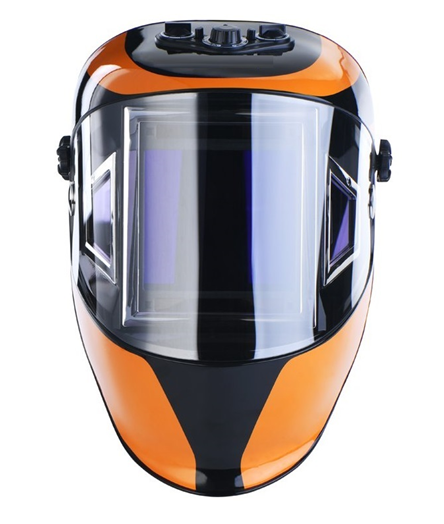

MapleWeld Maple Eagle Auto-Darkening Welding Helmet – Triple LCD True Color Welding Helmet
The MapleWeld Maple Eagle Auto-Darkening Welding Helmet is a professional welding helmet designed for welders who need a wide field of view, accurate colour recognition, fast auto-darkening response, and dependable protection across demanding welding applications. Its triple-LCD lens system, 1/1/1/1 optical clarity, True Color technology, and four arc sensors provide a clear, responsive view of the workpiece before, during, and after welding.
With a large 3.98" × 3.70" viewing area plus side windows, the Maple Eagle provides enhanced peripheral visibility for positioning, fit-up, welding, and inspection. The auto-darkening filter switches from light to dark in as little as 1/30,000 second, while adjustable shade, sensitivity, and delay controls allow the helmet to be configured for different welding conditions and work environments.
Why Choose the MapleWeld Maple Eagle?
- Triple independent LCD screens work together to provide a broad, unobstructed viewing experience.
- 1/1/1/1 optical clarity rating provides high-quality optical performance for detailed welding work.
- True Color Ultra HD viewing helps maintain a more natural view of the weld area and surrounding workpiece.
- Large 3.98" × 3.70" viewing area provides excellent visibility of the weld zone.
- Additional side windows improve peripheral awareness while working.
- Four arc sensors provide reliable arc detection across a wide range of welding positions.
- Ultra-fast 1/30,000-second switching automatically transitions the lens from light to dark when an arc is detected.
- Variable shade adjustment supports dark shades from DIN 5–9 and DIN 9–13.
- Weld and Grind modes provide flexibility for welding and non-welding applications.
- Adjustable delay control from 0.1 to 1.0 seconds allows the darkening recovery time to be customized.
- Solar cell technology plus replaceable CR2450 lithium batteries provides a practical power system for regular use.
- UV/IR protection to DIN 16 provides continuous protection from harmful ultraviolet and infrared radiation.
True Color Triple-LCD Viewing System
The Maple Eagle uses three independently operating LCD screens synchronized as a single viewing system. This design provides a wide field of vision while maintaining consistent auto-darkening performance across the lens assembly.
The True Color Ultra HD viewing system is designed to provide a more natural representation of the welding environment compared with traditional green-tinted auto-darkening lenses. This can make it easier to distinguish the weld pool, joint, electrode, filler material, and surrounding workpiece during welding and inspection.
Fast Auto-Darkening Performance
When an arc is detected, the Maple Eagle auto-darkening filter switches to the selected dark shade in as little as 1/30,000 second. Four arc sensors help detect the welding arc, while adjustable sensitivity and delay controls allow the helmet to be tuned to the application and surrounding lighting conditions.
The adjustable delay range of 0.1–1.0 seconds gives the operator control over how quickly the lens returns to its light state after welding stops. The helmet also includes dedicated Weld/Grind modes for added versatility.
Large Viewing Area & Peripheral Visibility
A 3.98" × 3.70" primary viewing area gives the operator a broad view of the weld zone without constantly repositioning the helmet. Integrated side windows provide additional peripheral visibility, helping the operator maintain greater awareness of the surrounding work area.
Professional Welding Applications
The MapleWeld Maple Eagle is suitable for a wide range of welding and fabrication environments, including:
- MIG and wire-feed welding
- Stick / SMAW welding
- TIG welding
- Flux-cored arc welding
- Metal fabrication and repair
- Automotive and equipment repair
- Maintenance welding
- Shop and field fabrication
- General industrial welding applications
Technical Specifications
| Product | MapleWeld Maple Eagle Auto-Darkening Welding Helmet |
| Viewing Area | 3.98" × 3.70", plus side windows |
| LCD System | 3 independent synchronized LCD screens |
| Optical Rating | 1/1/1/1 |
| Technology | True Color Ultra HD / electro-optical technology |
| Light Shade | DIN 5 |
| Dark Shade Range | DIN 5–9 / DIN 9–13 |
| UV/IR Protection | DIN 16 |
| Switching Speed | Up to 1/30,000 second |
| Delay Adjustment | 0.1–1.0 seconds |
| Arc Sensors | 4 |
| Operating Modes | Weld / Grind |
| Power | Solar cell + 3 replaceable CR2450 lithium batteries |
| Standards | CSA Z94.3; ANSI Z87.1-2015 |
| Package Contents | 1 welding helmet, 1 carry bag, 1 pair additional clear safety plates |
Replacement Lens & Part Number Reference
| Maple Eagle Helmet | MWEH302A-1 |
| Replacement Lens Pack | MWMEL |
Related MapleWeld Welding Helmets
MapleWeld Red Maple Auto-Darkening Welding Helmet | MapleWeld VisionGuard Series Auto-Darkening Helmet | MapleWeld Blue Arc PAPR Auto-Darkening Helmet
Specifications
| Brand | MapleWeld |
|---|---|
| Product type | Safety Gear & Equipment |
| Select Item | Maple Eagle Helmet, Lens Pack |
Sizes & pricing
Every option with its part number and price. Select one to load it into the cart above.
| Option | SKU | Price | Select |
|---|---|---|---|
| Maple Eagle Helmet | MWEH302A-1 | $207.20 | |
| Lens Pack | MWMEL | $20.92 |
