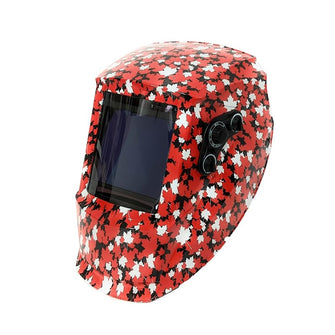

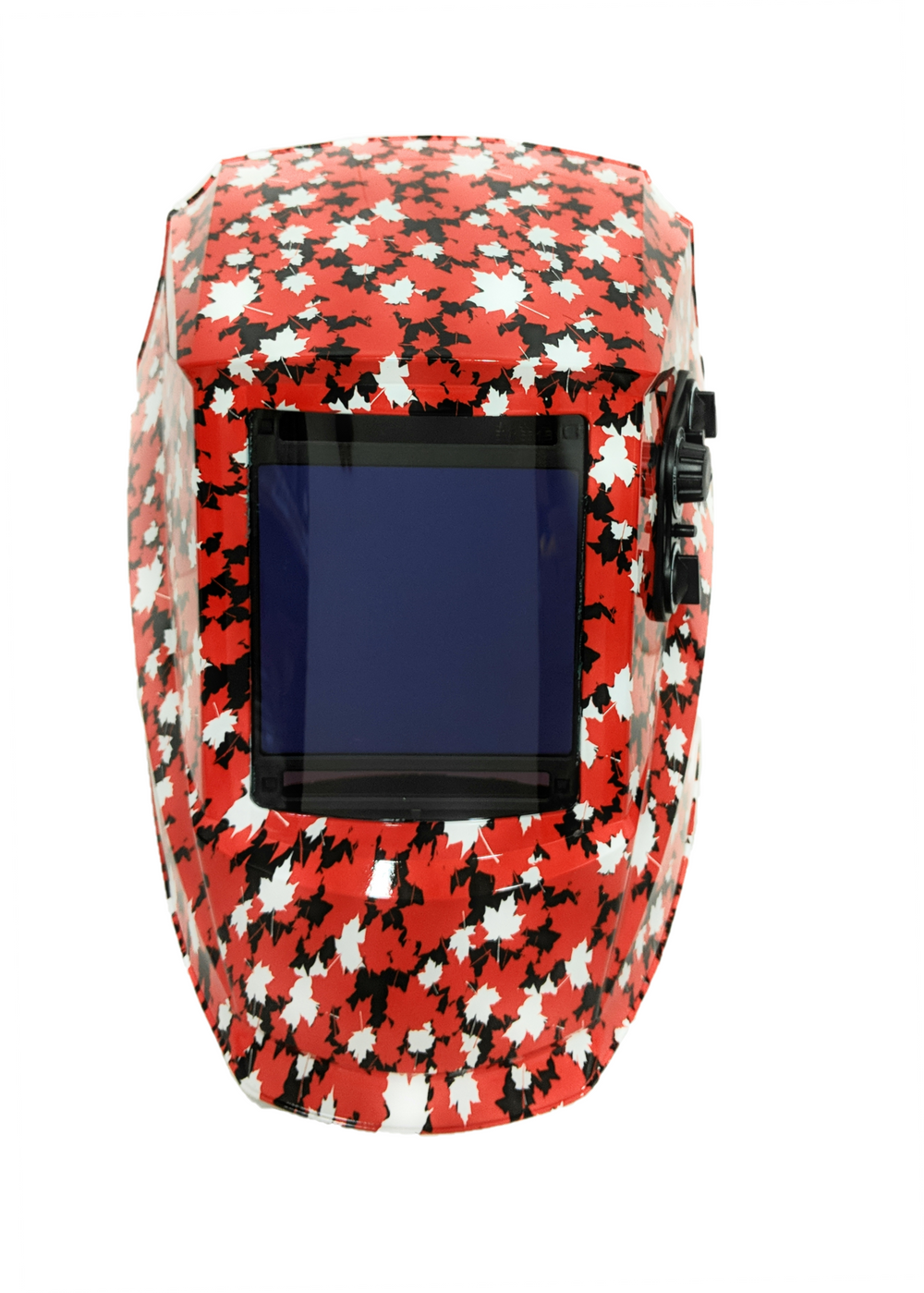

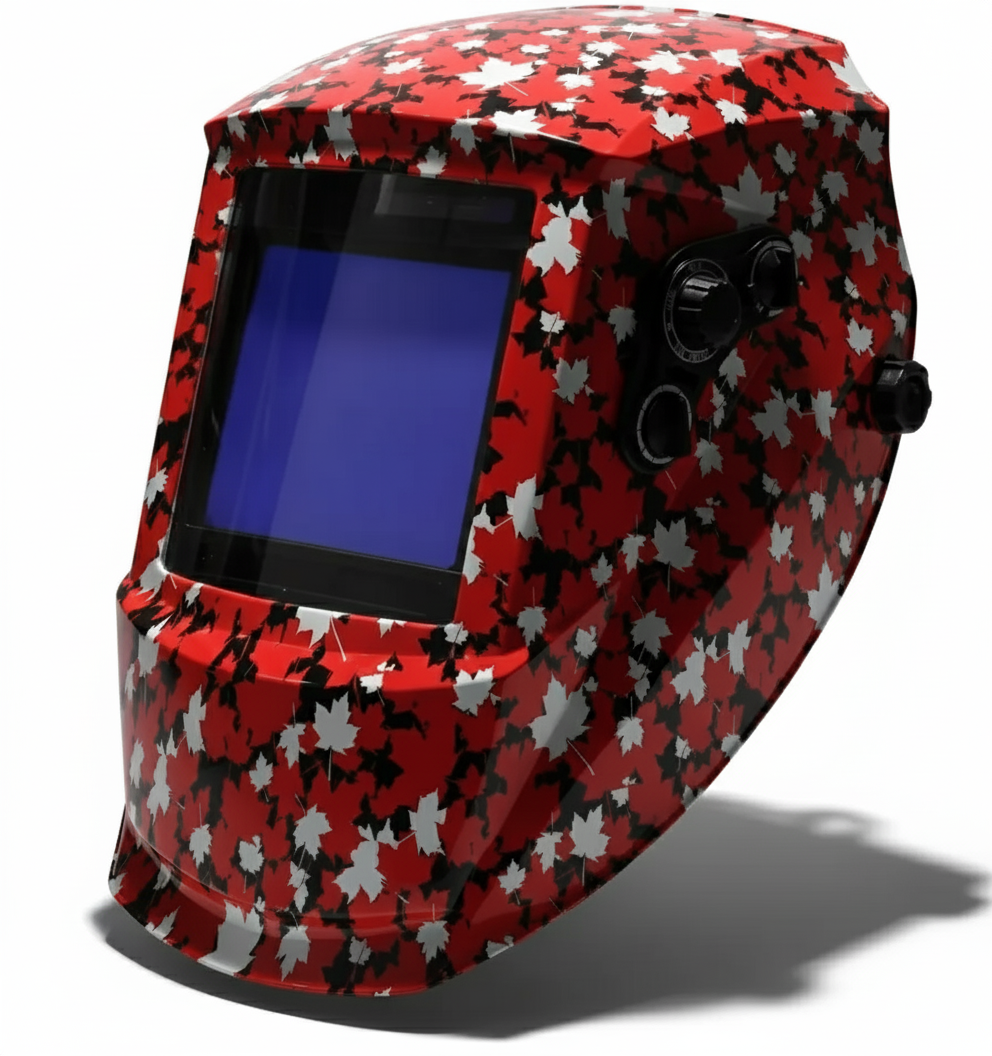

MapleWeld Red Maple Auto-Darkening Welding Helmet – True Color Auto-Darkening Helmet Shade 5-9/9-13

VIEWING AREA

3.98" x 3.70"

OPTICAL CLASS

1/1/1/1

SHADE RANGE

DIN 5-9 / 9-13

SWITCHING SPEED

1/30,000s

SENSORS

4 Arc Sensors

The MapleWeld Red Maple Auto-Darkening Welding Helmet delivers advanced comfort, clarity, and safety on site. Its 3.98" x 3.70" viewing area and Ultra HD Quality Electro-optical technology from Germany provide True Color vision with a 1/1/1/1 optical rating. Switch step-lessly between Welding and Grinding modes with adjustable sensitivity from low to high, and rely on automatic power on/off powered by solar cell technology plus a replaceable CR2450 lithium battery for hassle-free operation. UV/IR protection is rated DIN 16, with a Light Shade of DIN 3.5 and Dark Shades of DIN 5-9 and 9-13. Light-to-dark switching is a lightning-fast 1/30,000s, and dark-to-light delay is steplessly adjustable from 0.1 to 1.0s. Four arc sensors and a twilight function help protect your safety and comfort, and the helmet conforms to CSA Z94.3 and ANSI Z87.1-2015 standards.

Key Features

3.98" x 3.70" viewing area for precise visibility
Ultra HD Electro-optical technology (Germany) with True Color vision, 1/1/1/1 rating

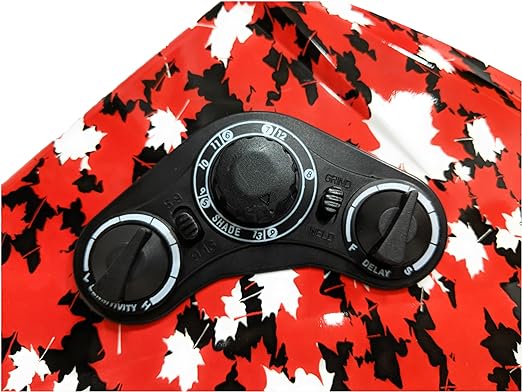

Step-less sensitivity adjustment, Weld/Grind mode switching

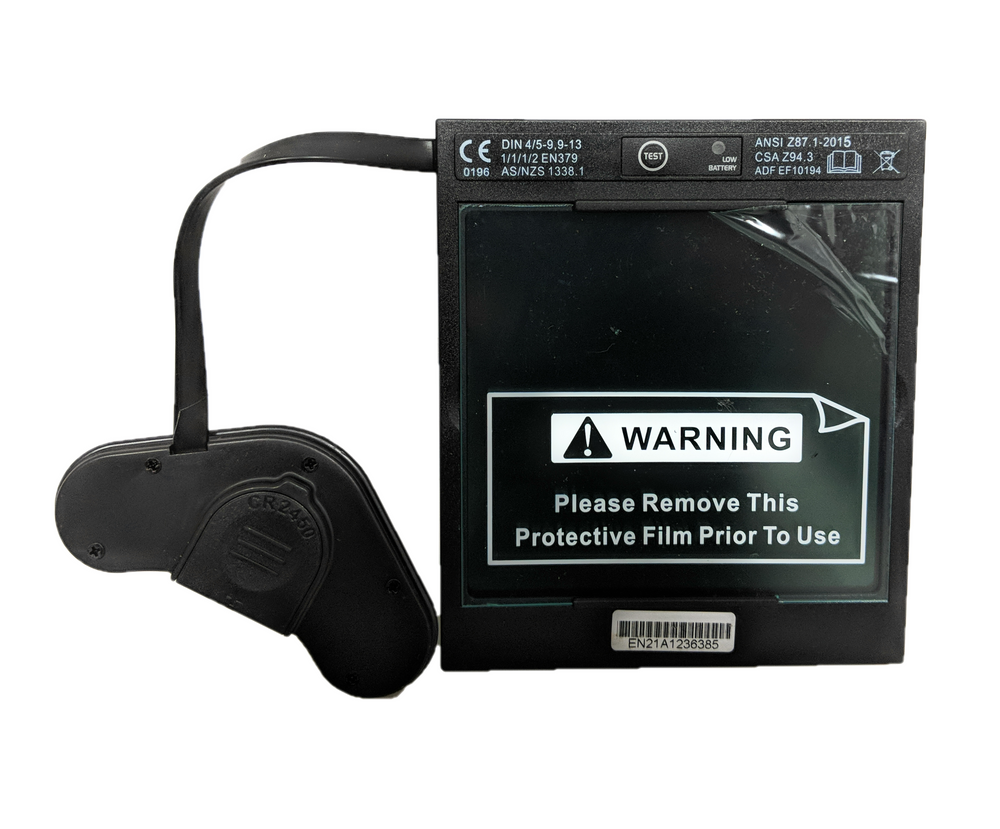

Solar cell technology plus replaceable CR2450 lithium battery, automatic on/off
UV/IR protection rated DIN 16; Light Shade DIN 3.5; Dark Shade DIN 5-9, 9-13
Light-to-dark switching in 1/30,000s; dark-to-light delay adjustable 0.1-1.0s
Four arc sensors plus twilight function
Conforms to CSA Z94.3 and ANSI Z87.1-2015 standards
Includes carry bag and one pair of additional clear safety plates (inside and outside)

Technical Specifications

Viewing Area	3.98" x 3.70"
Optical Rating	1/1/1/1
Shade Range	Light DIN 3.5; Dark DIN 5-9, 9-13
UV/IR Protection	DIN 16
Switching Speed	1/30,000 second (light to dark)
Delay Adjustment	0.1 to 1.0s (dark to light)
Power	Solar cell + replaceable CR2450 lithium battery
Sensors	4 arc sensors, twilight function
Certifications	CSA Z94.3, ANSI Z87.1-2015
Package Contains	1 helmet, 1 carry bag, 1 pair additional clear safety plates

Part Number & Size Reference

Red Maple

MWEH929RM

Other Products

MapleWeld VisionGuard Series Auto-Darkening Helmet | MapleWeld Maple Eagle Auto-Darkening Helmet | MapleWeld Blue Arc PAPR Auto-Darkening Helmet

Specifications

Red Maple Auto-Darkening Welding Helmet – True Color Auto-Darkening Helmet Shade 5-9/9-13 - specifications
Brand	MapleWeld
Product type	All products
Color	Red Maple
