Overview

PowerWeld 101C Carbon Dioxide Flowmeter - CGA-320

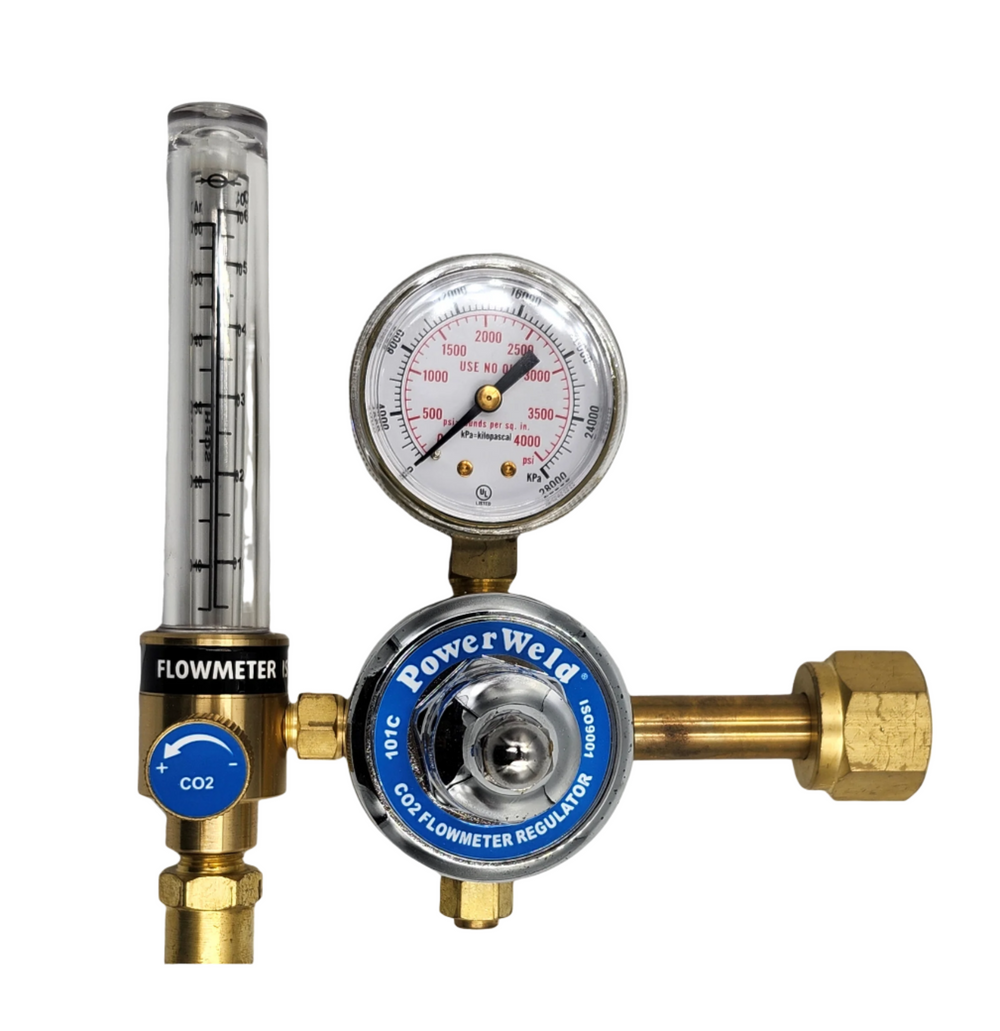

The PowerWeld 101C carbon dioxide flowmeter is a robust, single-stage meter designed for precise gas flow management. It features a 0-60 Standard Cubic Feet per Hour (SCFH) flow rate capability, making it suitable for various applications requiring accurate CO2 measurement. The flowmeter is preset at a stable outlet pressure of 50 PSIG, ensuring consistent performance. It includes a CGA-320 inlet connection and a 5/8"-18 RH female outlet connection, accommodating standard fittings. The device is equipped with a large 2-inch gauge that clearly displays pressure up to 4000 PSI, with a maximum inlet pressure tolerance of 3000 PSI, highlighting its durability and reliability in high-pressure applications.

Key Features

Single-stage design for precise CO2 flow management
0-60 SCFH flow rate capability
Preset outlet pressure of 50 PSIG
Large 2-inch gauge displays pressure up to 4000 PSI
CGA-320 inlet and 5/8"-18 RH female outlet connections

Technical Specifications

Gas	Carbon dioxide (CO2)
Stage	Single-stage
Flow Range	0-60 SCFH
Preset Outlet Pressure	50 PSIG
Max Inlet Pressure	3000 PSI
Gauge	2", reads to 4000 PSI
Inlet Connection	CGA-320
Outlet Connection	5/8"-18 RH (Female)

Part Number & Size Reference

Part# MW101C

Other Products

R15 Carbon Dioxide CO2 Regulator | Nitrogen Purging Regulator | 101A Argon Flowmeter

Specifications

101C Carbon Dioxide Flowmeter - CGA-320 - specifications
Brand	PowerWeld
Product type	Gas Equipment
SKU	MW101C
