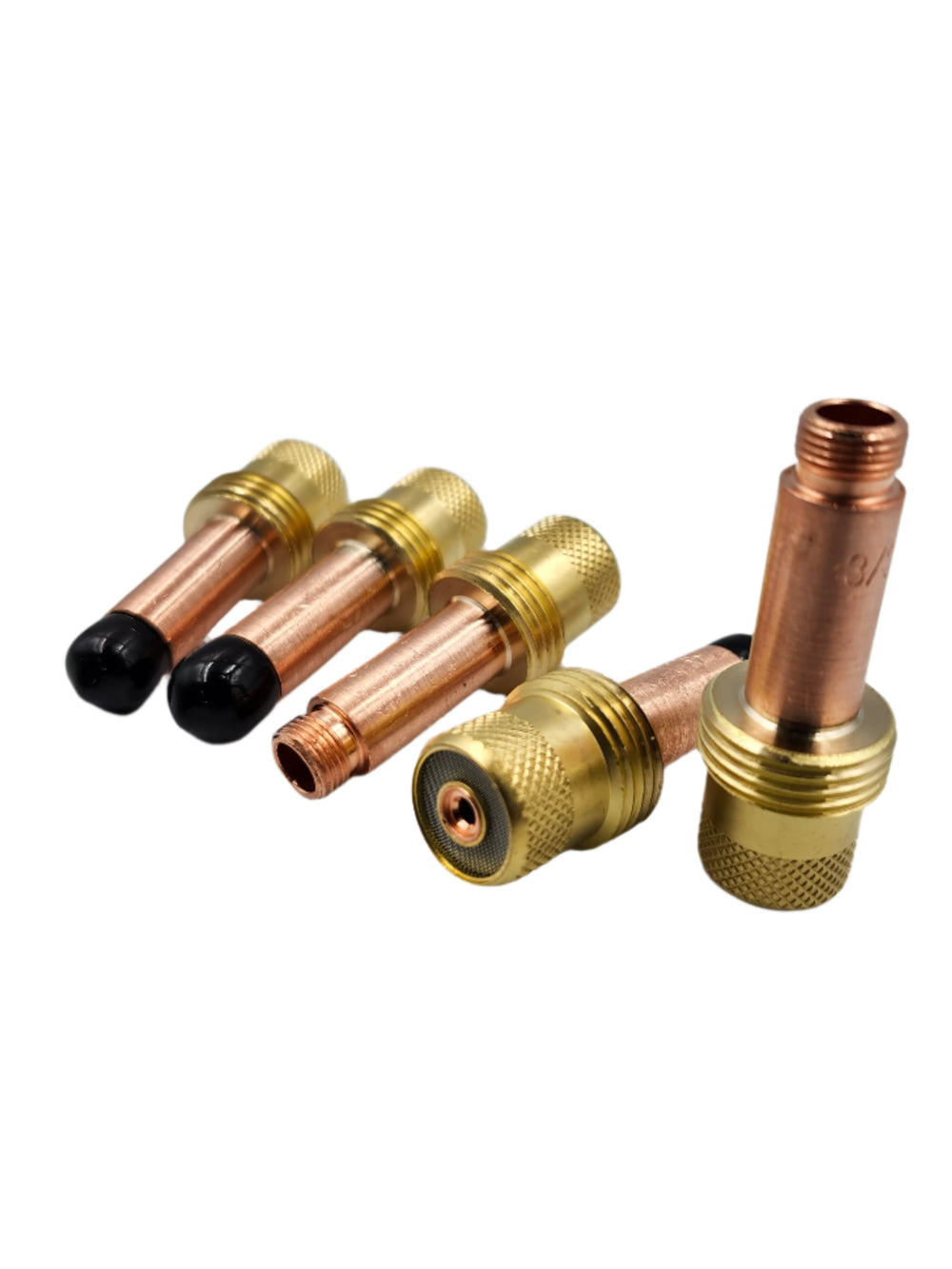

Parker Gas Lens Collet Body 45V-series for TIG Welding Torch 17-18-26
| QTY | Discount |
|---|---|
| 2+ | 3% |
| 10+ | 5% |
| 20+ | 7% |
Categories:
45V Series Gas Lens Collet Body for TIG Torch 17, 18 & 26 (Pack of 5) — Overview
The 45V Series Gas Lens Collet Body is designed for use with 17, 18, and 26 series TIG welding torches. Paired with 54N gas lens ceramic cups and 10N collets, this collet body forms a gas lens setup that produces a more uniform, stable shielding gas flow compared to a standard collet body — reducing turbulence, minimizing oxidation and contamination, and allowing longer tungsten electrode stick-out for access in tight or confined weld areas. Rated for 150A–350A on air-cooled and water-cooled systems. Pack of 5. Ships across Canada from North York, Ontario.
Key Features
- Gas lens design — uniform, stable shielding gas flow around the electrode
- Reduces turbulence and minimizes oxidation vs. standard collet body setup
- Allows longer tungsten electrode stick-out for confined weld area access
- Reduces spatter and overall shielding gas consumption
- Compatible with 54N gas lens ceramic cups and 10N collets
- Pack of 5 | Weight: 180 g
Technical Specifications
| Specification | Value |
|---|---|
| Compatible Torch Series | 17, 18, 26 |
| Compatible Cups | 54N gas lens ceramic cups |
| Compatible Collets | 10N collets |
| Amperage Range | 150A–350A |
| Cooling Type | Air-cooled and water-cooled |
| Pack Quantity | 5 collet bodies |
| Setup Type | Gas Lens |
| Weight | 180 g |
Part Number & Electrode Size Reference
| Part Number | Electrode Diameter | SKU |
|---|---|---|
| 45V25 | 1/16 inch | MW45V25 |
| 45V26 | 3/32 inch | MW45V26 |
| 45V27 | 1/8 inch | MW45V27 |
