Overview

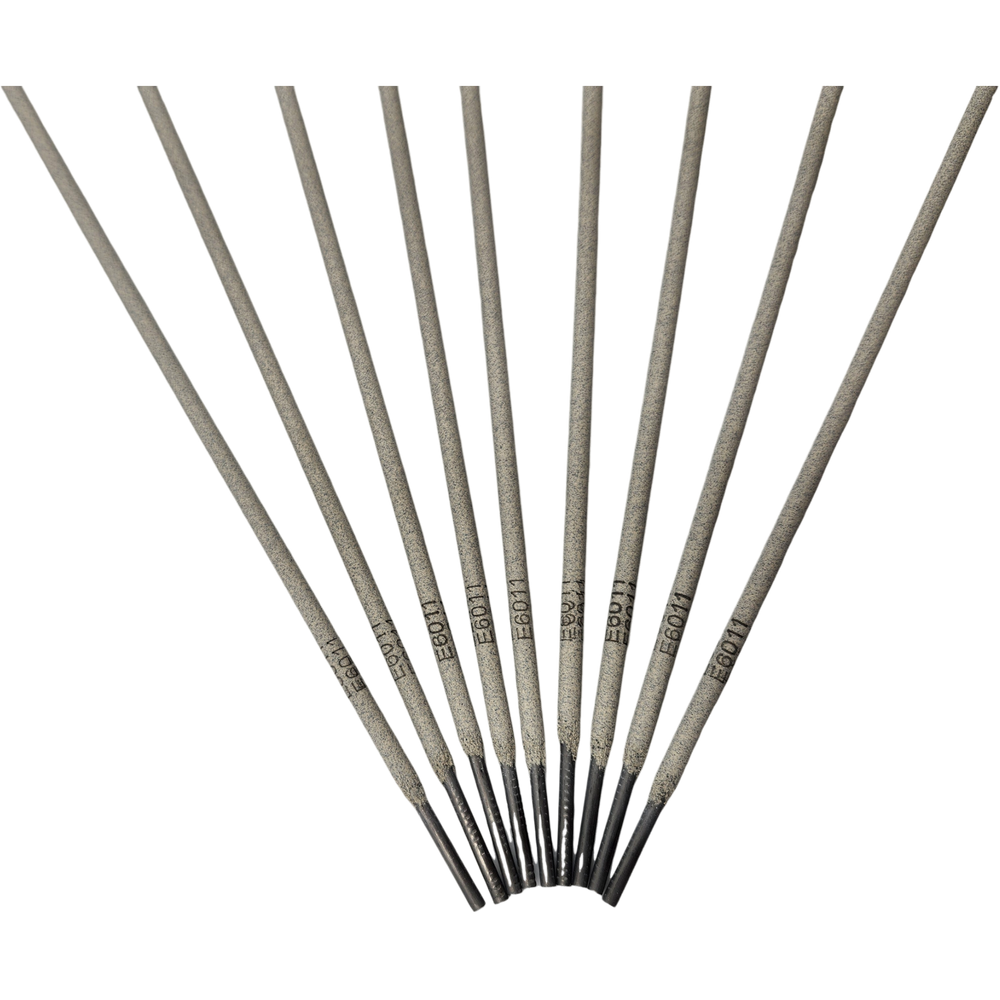

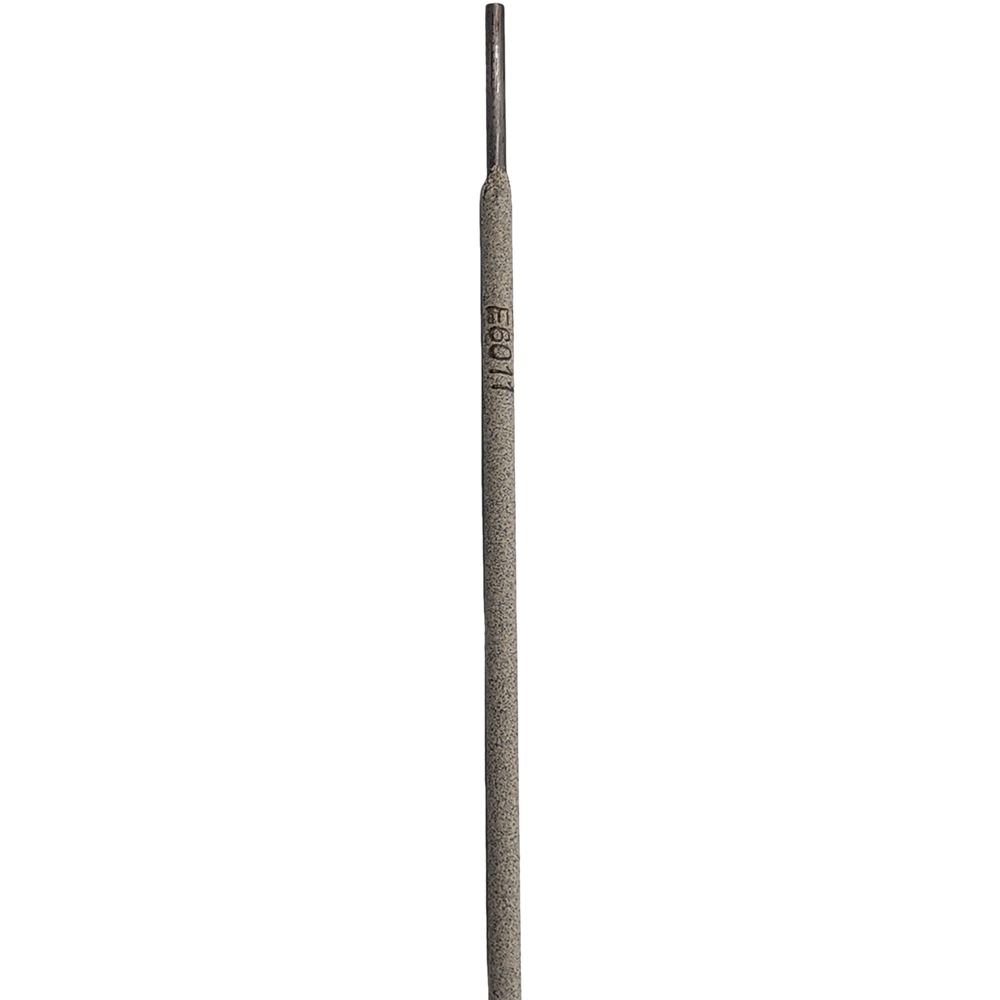

E6011 Steel Stick Electrodes – 1/8" (3.2mm)
MapleWeld's 1/8" (3.2mm) E6011 stick electrode delivers robust arc force for deep penetration and fine spray transfer, appealing to operators seeking precision and efficiency. Versatile from general fabrication to shipbuilding, it welds mild steels, galvanized steel, and certain low alloy steels for sturdy weld joints. Designed for all-position welding, including vertical and overhead, it delivers fast-freezing, reliable welds on challenging surfaces and runs on AC or DC with minimal surface preparation required. Available from PowerWeld, Atlantic, Sorex, BonArc, and InWeld.
Key Features
- Robust arc force for deep penetration and fine spray transfer
- Versatile: general fabrication to shipbuilding
- Welds mild steels, galvanized steel, and certain low alloy steels
- Produces sturdy weld joints
- All-position welding, including vertical and overhead
- Fast-freezing, reliable welds on challenging surfaces
- Runs on AC or DC with minimal surface preparation required
Technical Specifications
| AWS Classification | E6011 |
| Diameter | 1/8" (3.2mm) |
| Current Type | AC or DC |
| Arc Characteristics | Deep penetration, fine spray transfer |
| Welding Position | All positions, including vertical & overhead |
| Base Materials | Mild steel, galvanized steel, some low alloy steels |
| Surface Preparation | Minimal required |
Part Number & Size Reference
Other Products
E6011 Electrodes – 3/32" | E6011 Electrodes – 5/32" | E6010 Electrodes – 1/8" | E7018 Electrodes – 1/8" | E6013 Electrodes – 1/8"
Specifications
| Product type | Steel Welding |
|---|---|
| Brand | PowerWeld, Atlantic, Sorex, BonArc, InWeld |
| Pack Size | 2.0 kg (4.4 lbs.), 5.0 kg (11.0 lbs.), 4.5 kg (10.0 lbs.) |
Sizes & pricing
Every option with its part number and price. Select one to load it into the cart above.
| Option | SKU | Price | Select |
|---|---|---|---|
| PowerWeld / 2.0 kg (4.4 lbs.) | MW601132 | $18.48 | |
| Atlantic / 5.0 kg (11.0 lbs.) | MWA601132 | $45.90 | |
| Sorex / 5.0 kg (11.0 lbs.) | MWS601118 | $44.90 | |
| BonArc / 4.5 kg (10.0 lbs.) | MWBA601132 | $44.90 | |
| InWeld / 4.5 kg (10.0 lbs.) | - | $47.90 |
Not sure this is the right part?
Tell us the machine, the material and the job. A welding specialist - not a call centre - will confirm fit and pricing, including volume and trade quotes.
You may also need
-
E7018 Low-Hydrogen Steel Stick Electrodes – 1/8" (3.2mm)
From $15.99
-
E7024 Steel Stick Electrodes
From $55.82
-
E7018 Low-Hydrogen Steel Stick Electrodes – 5/32" (4.0mm)
From $37.90
-
E7018 Low-Hydrogen Steel Stick Electrodes – 3/32" (2.4mm)
From $17.99
-

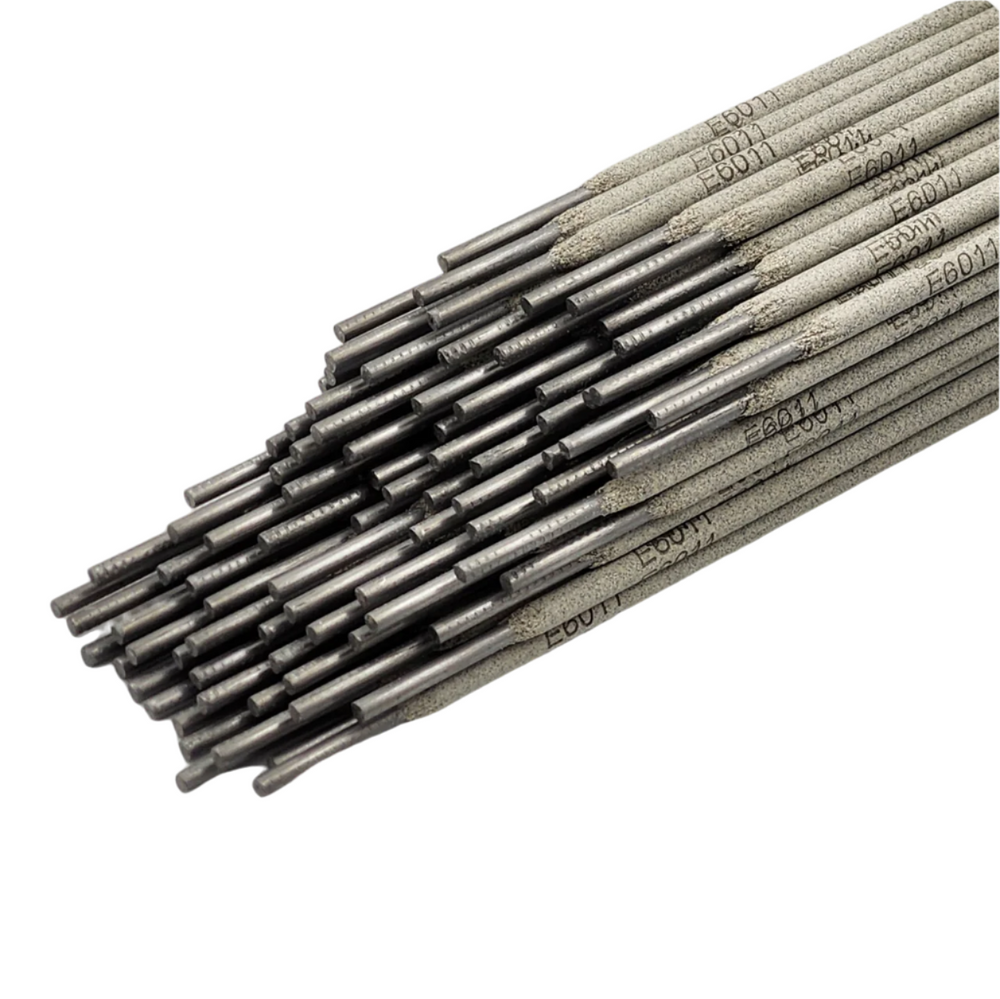

E6011 Steel Stick Electrodes – 3/32" (2.4mm)
