Overview

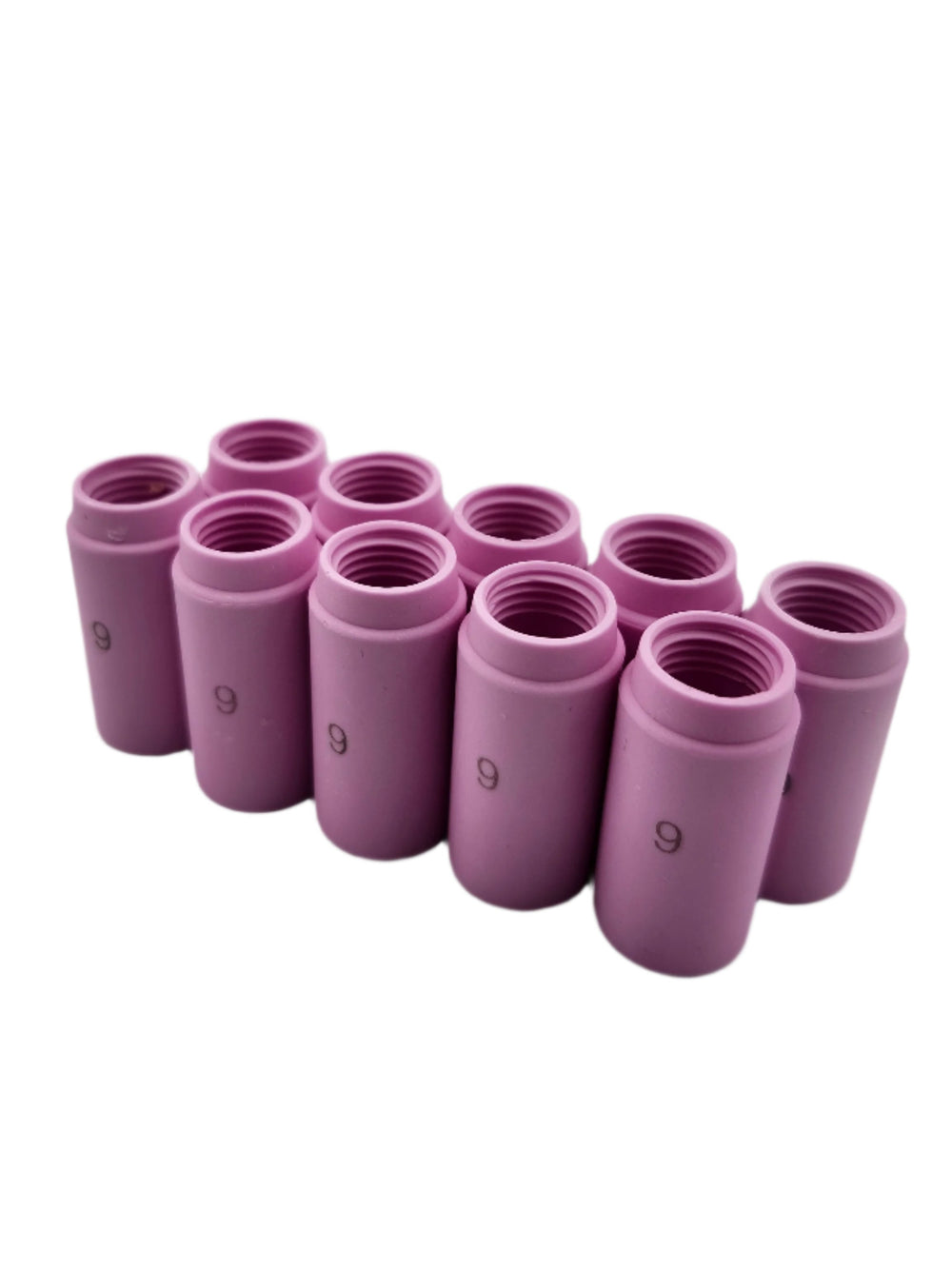

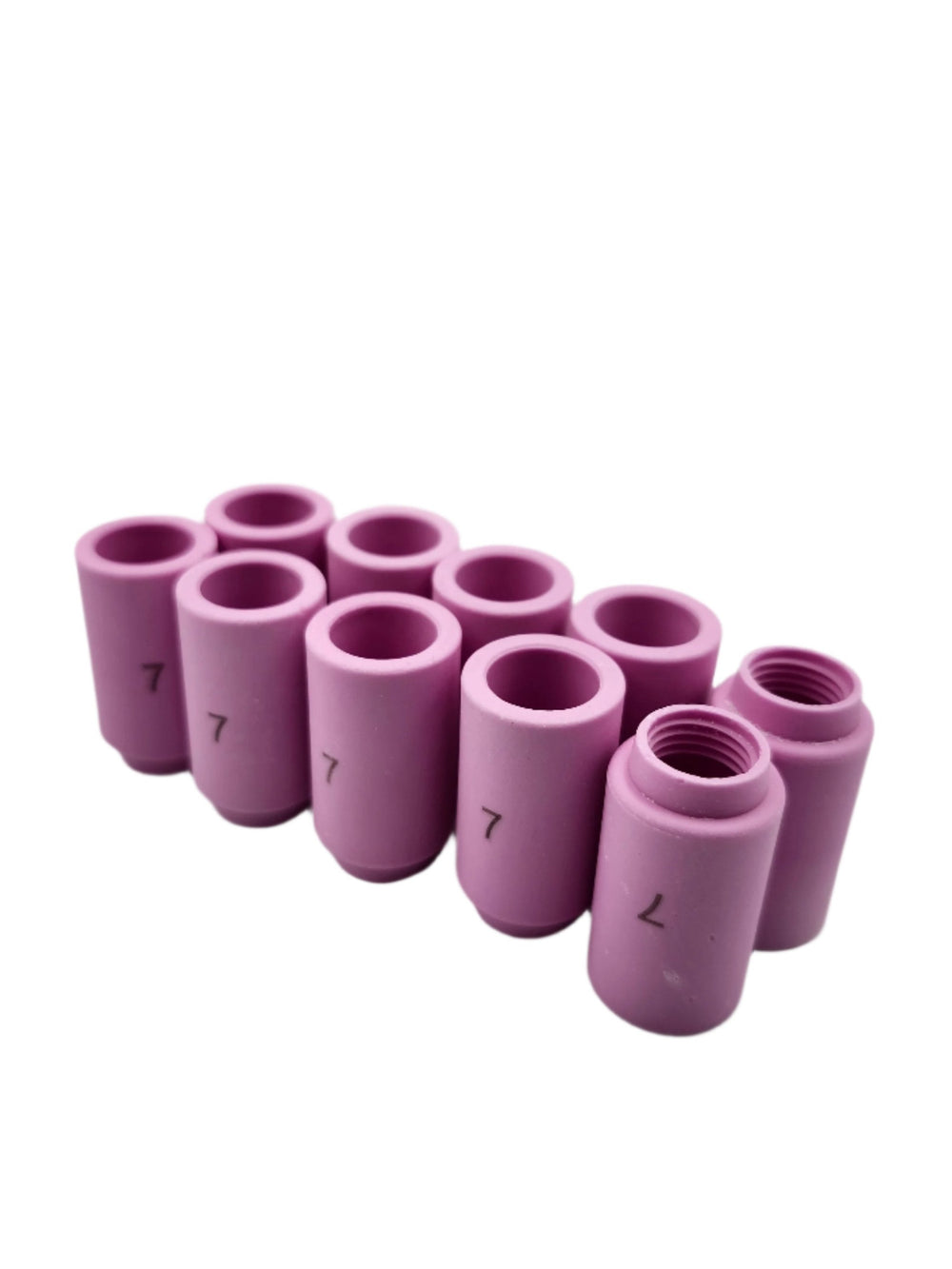

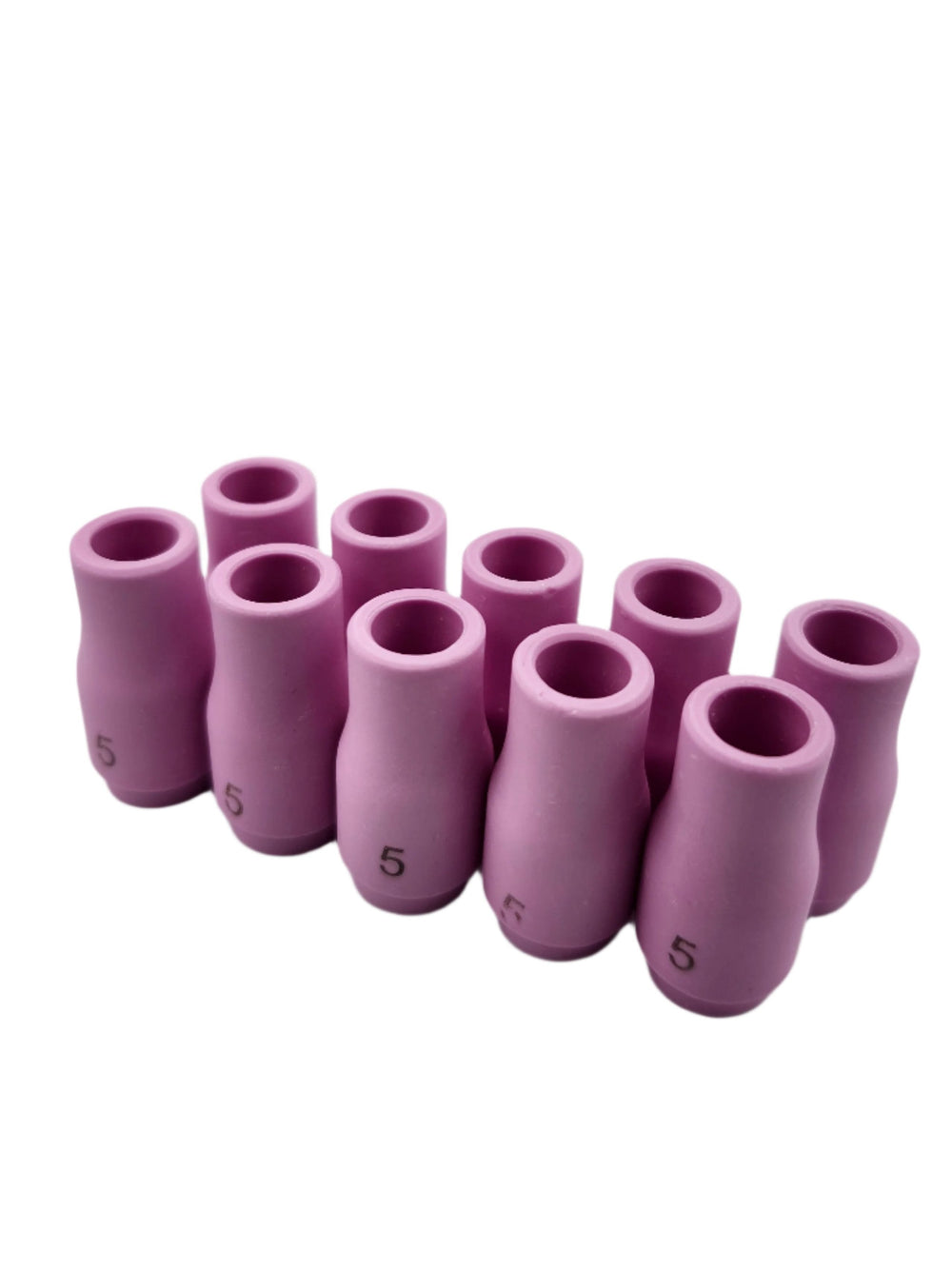

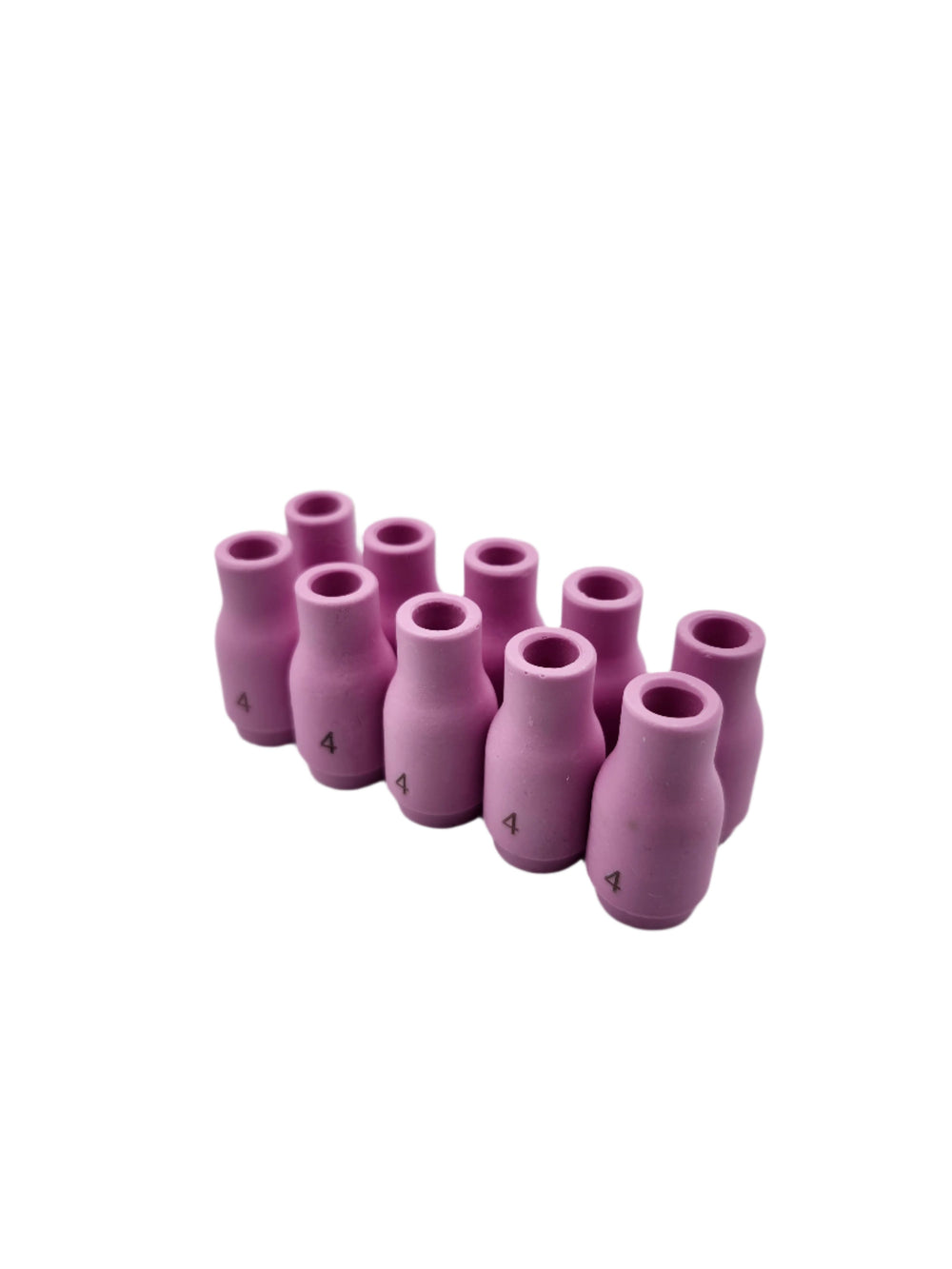

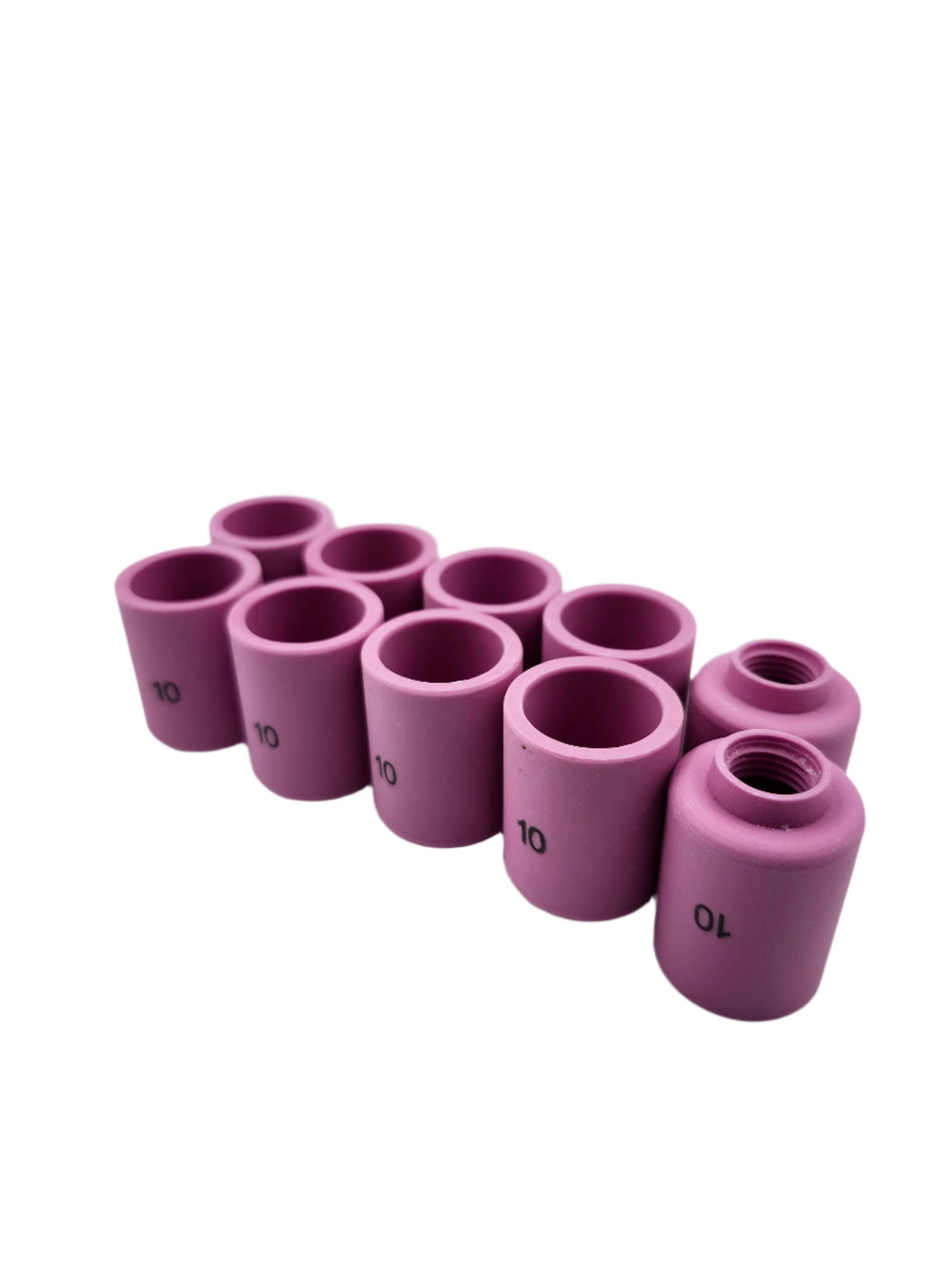

Parker Alumina Ceramic Cup 13N-series for TIG Welding Torch 9-20-25
13N Series Alumina Ceramic Cup for 9, 20, and 25 series TIG torches in a standard setup. Compatible with 13N collet body. Directs and controls shielding gas flow around the tungsten electrode. Rated 125A–250A. Pack of 10, available from #4 to #10 orifice diameter.
Key Features
- For 9, 20, and 25 series TIG torches (standard setup)
- Compatible with 13N collet body
- Directs and controls shielding gas flow around tungsten
- Rated 125A–250A on air-cooled and water-cooled systems
- Pack of 10 — available #4 to #10 orifice sizes
Technical Specifications
| Compatible Torch Series | 9, 20, 25 |
| Collet Body | 13N (standard setup) |
| Amperage Range | 125A–250A |
| Pack Quantity | 10 cups |
| Available Sizes | #4 (1/4") to #10 (5/8") |
Part Number & Size Reference
| MW13N08 — #4 (1/4") |
| MW13N09 — #5 (5/16") |
| MW13N10 — #6 (3/8") |
| MW13N11 — #7 (7/16") |
| MW13N12 — #8 (1/2") |
| MW13N13 — #10 (5/8") |
Other Products
Parker Collet 13N — Torch 9-20-25 | Parker Collet Body 13N — Torch 9-20-25 | Parker Gas Lens Collet Body 45V — Torch 9-20-25 | Parker Alumina Cup 13N — Torch 9-20-25 | Parker Gas Lens Cup 53N — Torch 9-20-25 | Parker Back Cap 41V — Torch 9-20-25 | Parker TIG Torch Body | Parker WLD Ribbed TIG Torch | Parker Suregrip Ergo TIG Torches
Specifications
| Brand | Parker |
|---|---|
| Product type | TIG Accessories |
| Size | 13N08 #4 (1/4 inch), 13N09 #5 (5/16 inch), 13N10 #6 (3/8 inch), 13N11 #7 (7/16 inch), 13N12 #8 (1/2 inch), 13N13 #10 (5/8 inch) |
Sizes & pricing
Every option with its part number and price. Select one to load it into the cart above.
| Option | SKU | Price | Select |
|---|---|---|---|
| 13N08 #4 (1/4 inch) | MW13N08 | $19.90 | |
| 13N09 #5 (5/16 inch) | MW13N09 | $19.90 | |
| 13N10 #6 (3/8 inch) | MW13N10 | $19.90 | |
| 13N11 #7 (7/16 inch) | MW13N11 | $19.90 | |
| 13N12 #8 (1/2 inch) | MW13N12 | $19.90 | |
| 13N13 #10 (5/8 inch) | MW13N13 | $19.90 |
Not sure this is the right part?
Tell us the machine, the material and the job. A welding specialist - not a call centre - will confirm fit and pricing, including volume and trade quotes.
You may also need
-
Back Cap 57Y02 (Long) 300M (Medium) 57Y04 (Short) Pack of 5 for TIG Welding Torch 17-18-26
From $12.45
-
10N Series Alumina Ceramic TIG Cups
$19.90
-

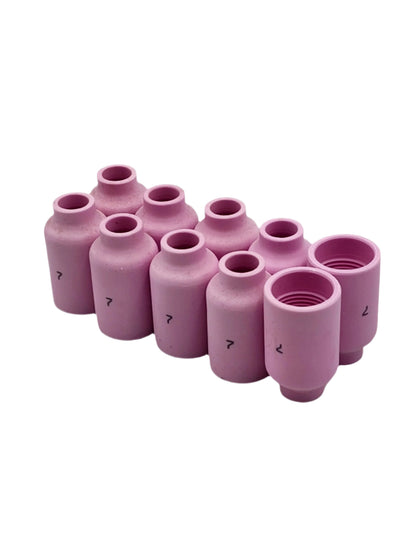

Gas Lens Alumina Ceramic Cup 54N-series for TIG Welding Torch 17-18-26
$19.90
-

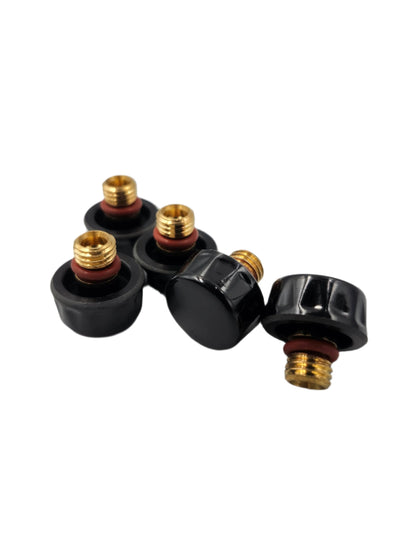

41V Series TIG Torch Back Caps
$12.45
-

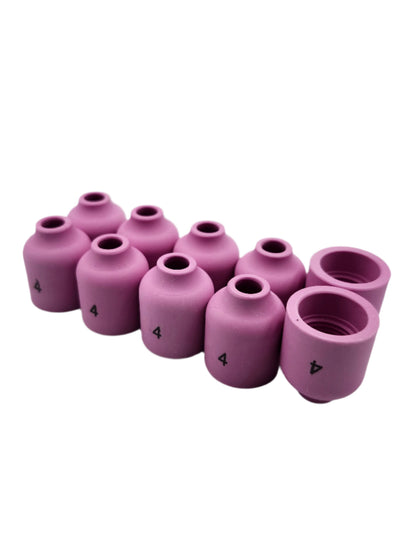

Gas Lens Alumina Ceramic Cup 53N-series for TIG Welding Torch 9-20-25
