ParkerTIG AccessoriesSKU MW53N58

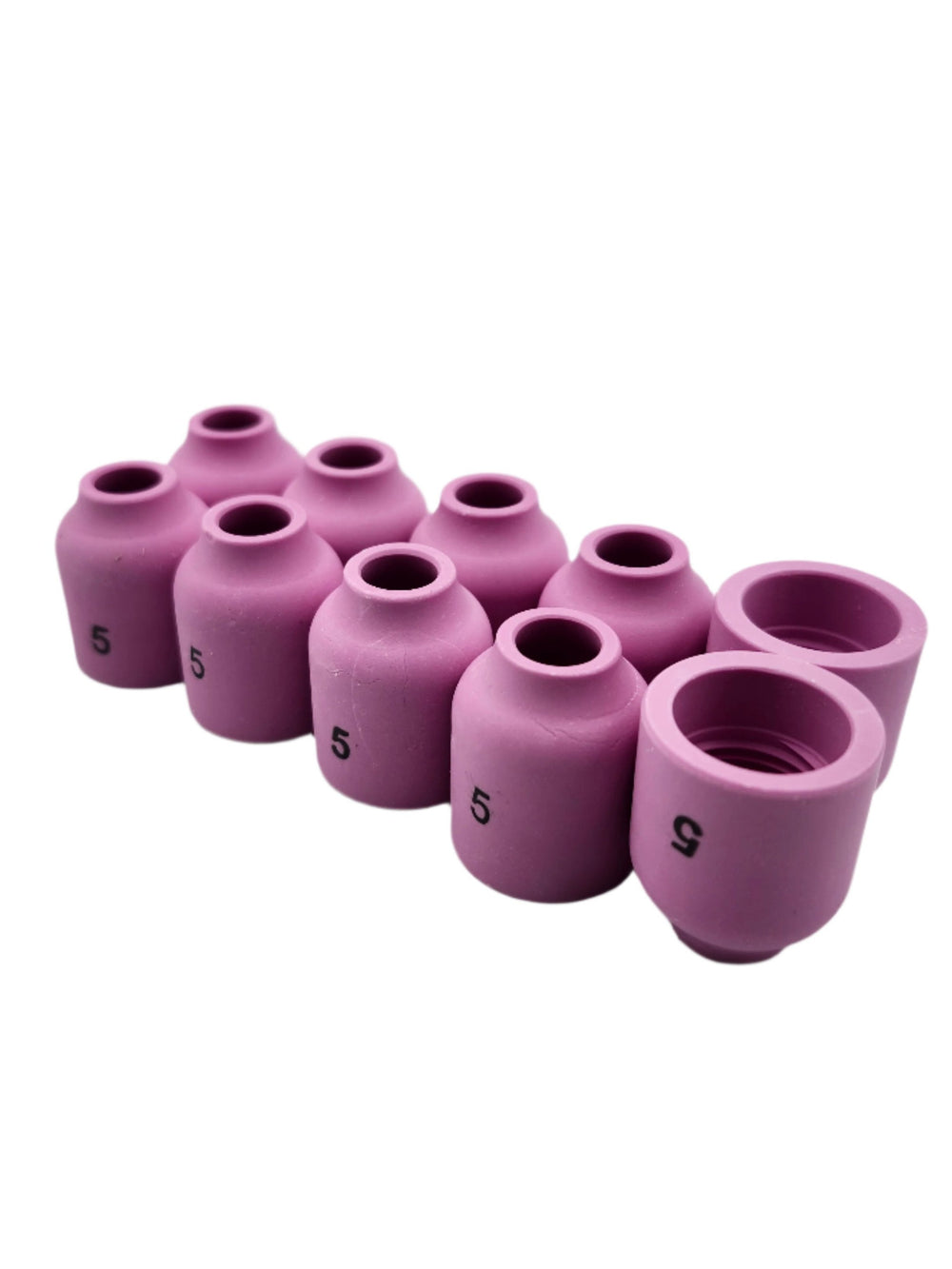

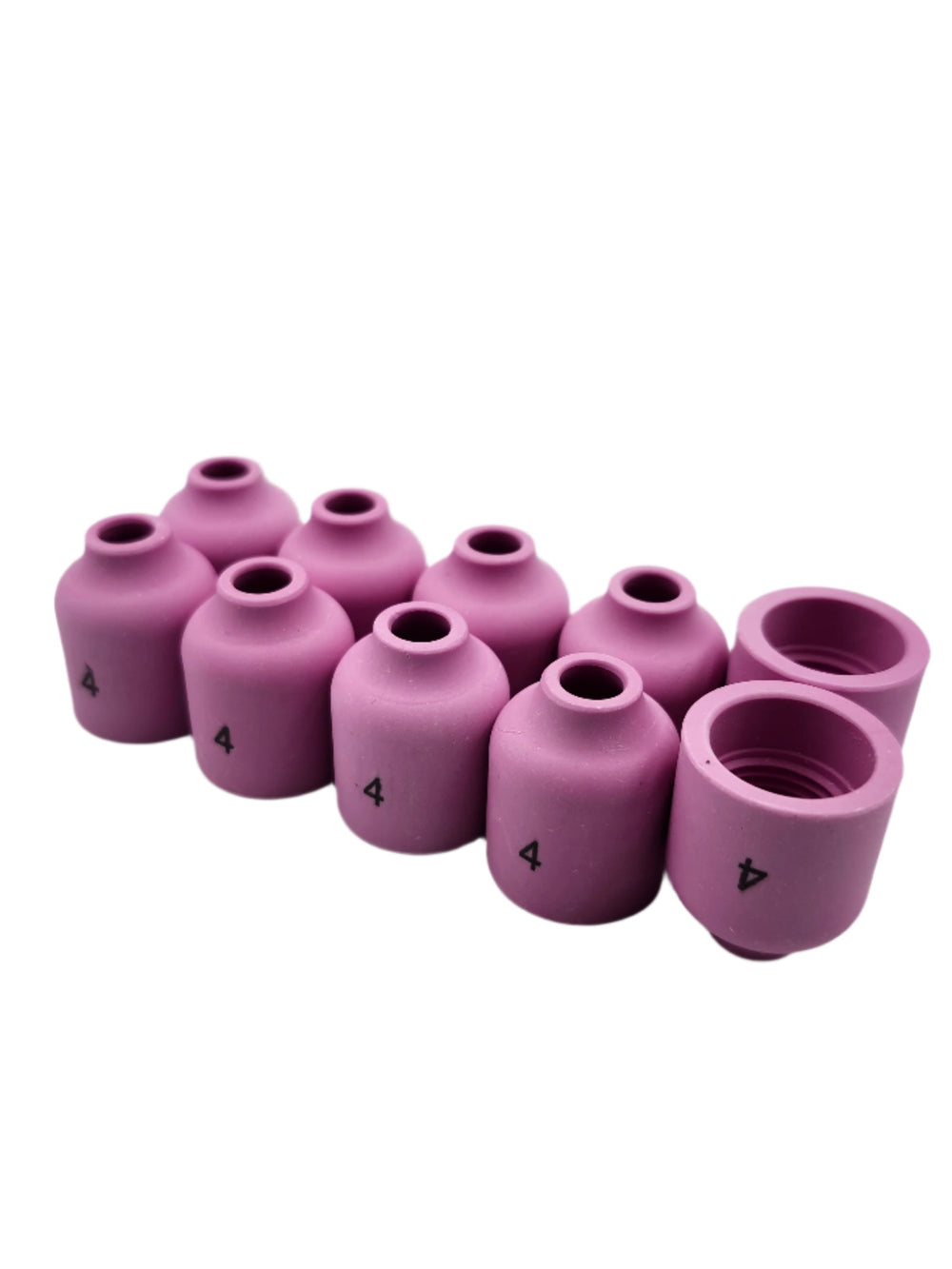

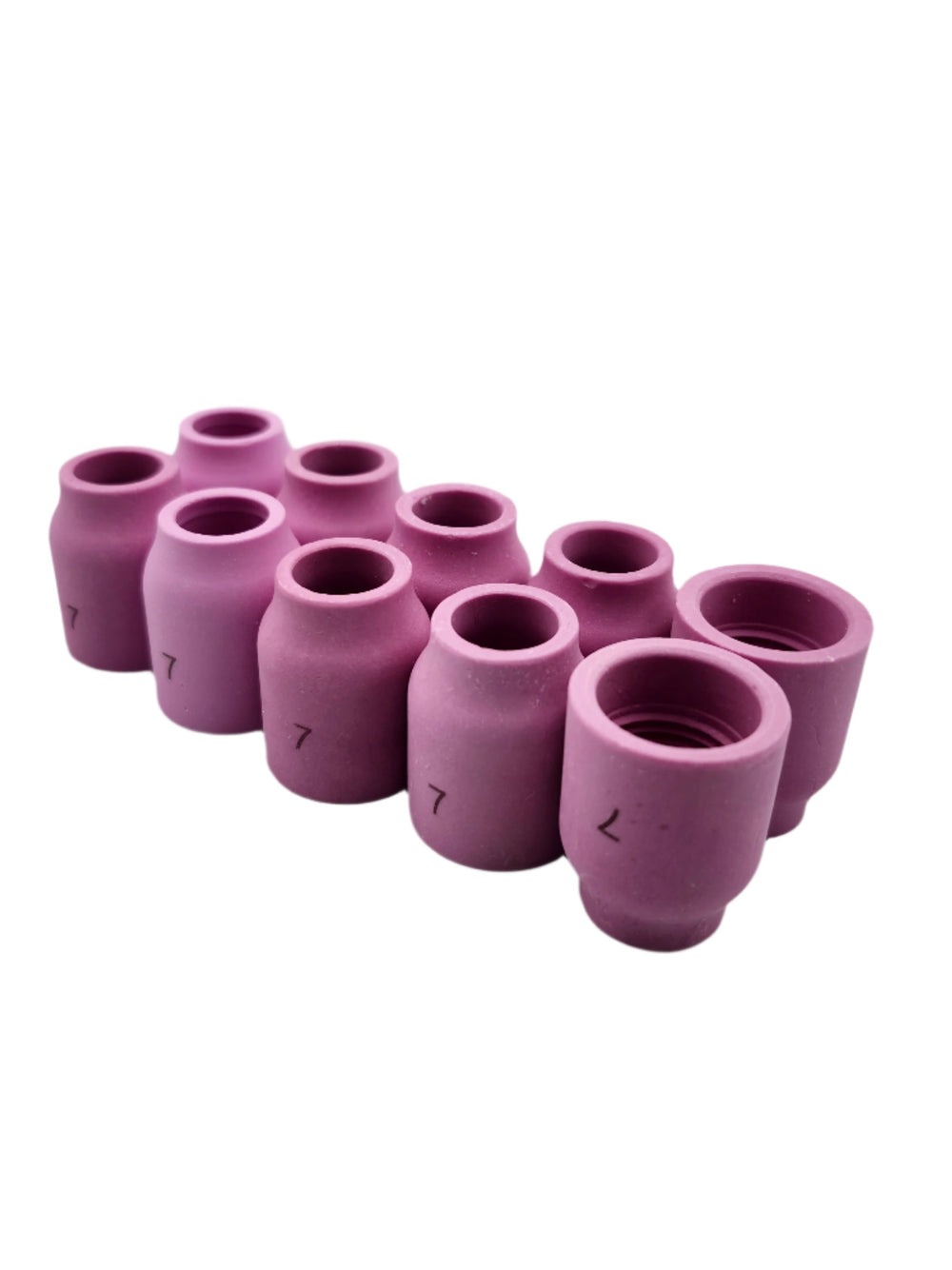

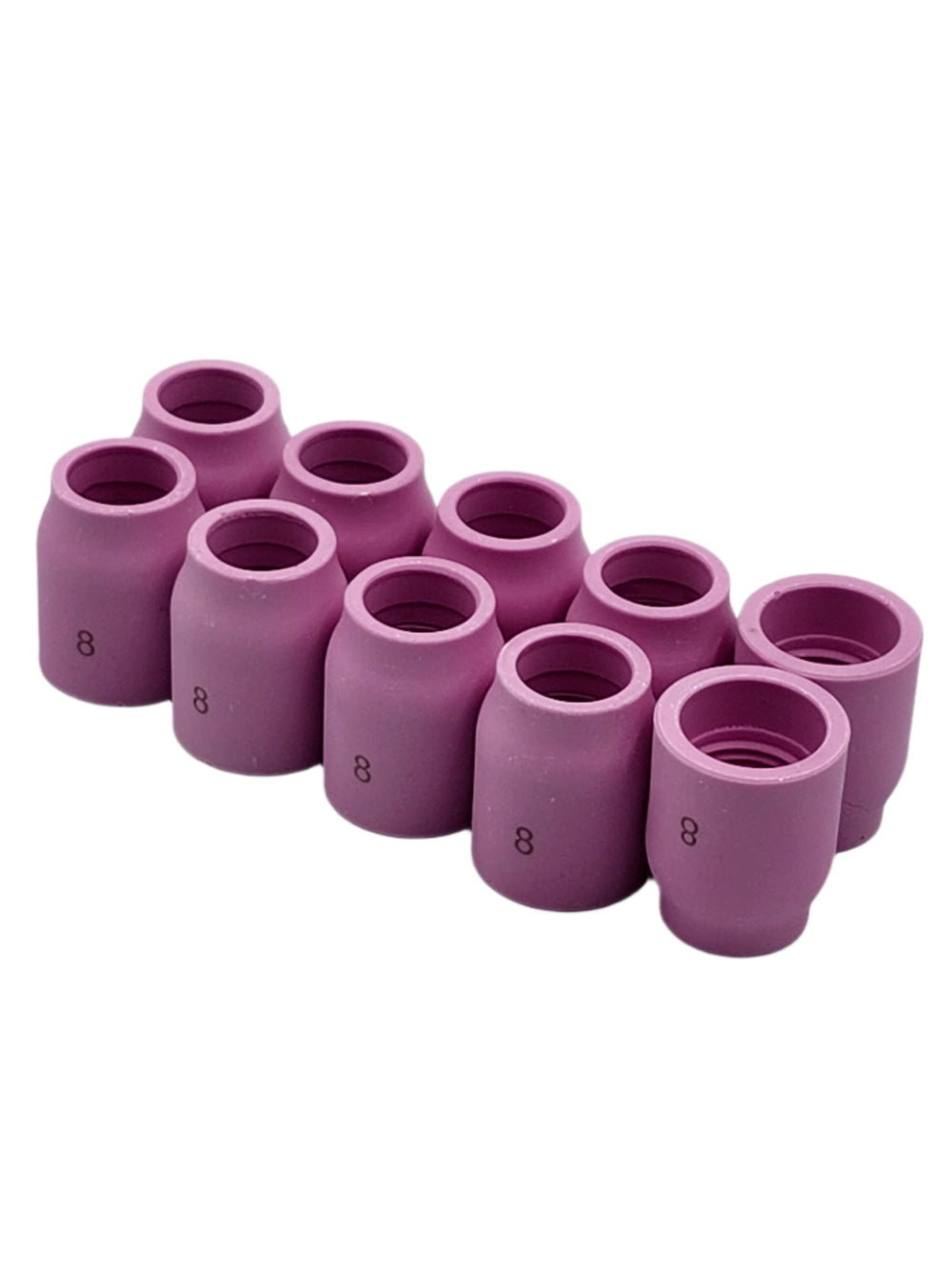

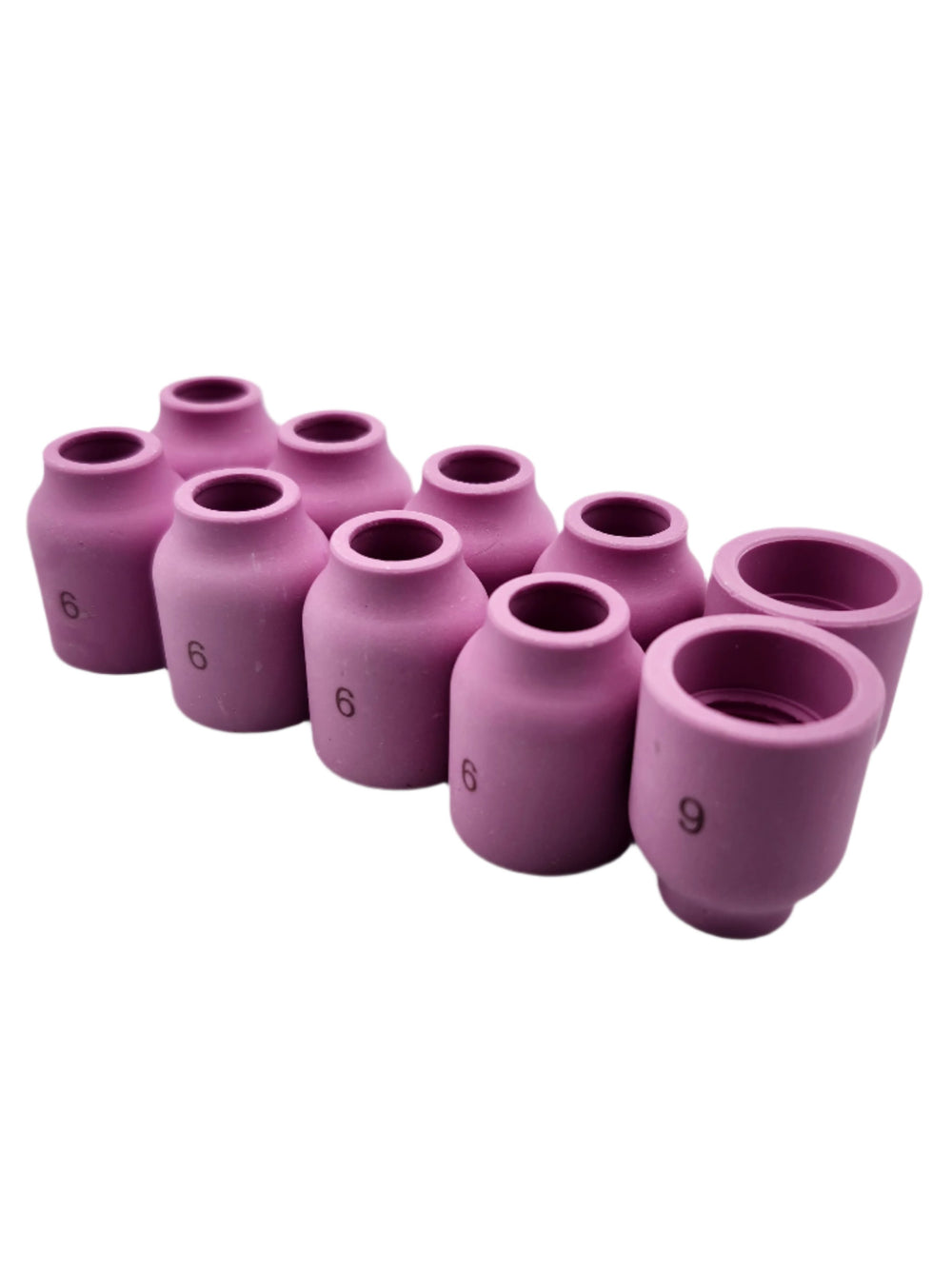

Gas Lens Alumina Ceramic Cup 53N-series for TIG Welding Torch 9-20-25

$20.90

CAD · Taxes and shipping calculated at checkout

  • For 9, 20, and 25 series TIG torches (gas lens setup)
  • Paired with 45V gas lens collet body
  • More stable and uniform shielding gas flow vs. standard setup
  • Allows greater tungsten stick-out for confined weld areas
Size: 53N58 #4 (1/4 inch)

905 919 1177
  • Free standard shipping on orders $189+ (before taxes) – ships Canada-wide from Toronto
  • Free shipping $189+Canada-wide, tracked delivery to shops and job sites
  • Toronto showroomSee it in person, or collect at the counter
  • Expert supportTalk to people who weld, not a script
  • Secure checkoutEncrypted payment through Shopify

Overview

Parker Gas Lens Alumina Ceramic Cup 53N-series for TIG Welding Torch 9-20-25

53N Series Gas Lens Alumina Ceramic Cup for 9, 20, and 25 series TIG torches in a gas lens setup. Paired with a 45V gas lens collet body, delivers more stable and uniform shielding gas flow — reducing turbulence, minimizing oxidation, and allowing greater tungsten stick-out.

Key Features

  • For 9, 20, and 25 series TIG torches (gas lens setup)
  • Paired with 45V gas lens collet body
  • More stable and uniform shielding gas flow vs. standard setup
  • Allows greater tungsten stick-out for confined weld areas
  • Pack of 10; rated 125A–250A

Technical Specifications

Compatible Torch Series 9, 20, 25
Setup Type Gas Lens
Compatible Collet Body 45V gas lens
Amperage Range 125A–250A
Pack Quantity 10 cups
Available Sizes #4 (1/4") to #7S (7/16" Short)
Weight 130 g

Part Number & Size Reference

MW53N58 — #4 (1/4")
MW53N59 — #5 (5/16")
MW53N60 — #6 (3/8")
MW53N61 — #7 (7/16")
MW53N61S — #7S (7/16" Short)

Other Products

Parker Collet 13N — Torch 9-20-25 | Parker Collet Body 13N — Torch 9-20-25 | Parker Gas Lens Collet Body 45V — Torch 9-20-25 | Parker Alumina Cup 13N — Torch 9-20-25 | Parker Gas Lens Cup 53N — Torch 9-20-25 | Parker Back Cap 41V — Torch 9-20-25 | Parker TIG Torch Body | Parker WLD Ribbed TIG Torch | Parker Suregrip Ergo TIG Torches

Specifications

Gas Lens Alumina Ceramic Cup 53N-series for TIG Welding Torch 9-20-25 - specifications
BrandParker
Product typeTIG Accessories
Size53N58 #4 (1/4 inch), 53N59 #5 (5/16 inch), 53N60 #6 (3/8 inch), 53N61 #7 (7/16 inch), 53N61S #8 (1/2 inch)

Sizes & pricing

Every option with its part number and price. Select one to load it into the cart above.

Option SKU PriceSelect
53N58 #4 (1/4 inch) MW53N58$20.90
53N59 #5 (5/16 inch) MW53N59$20.90
53N60 #6 (3/8 inch) MW53N60$20.90
53N61 #7 (7/16 inch) MW53N61$20.90
53N61S #8 (1/2 inch) MW53N61S$20.90
