Abicor BinzelMIG AccessoriesSKU MW081.9085.US

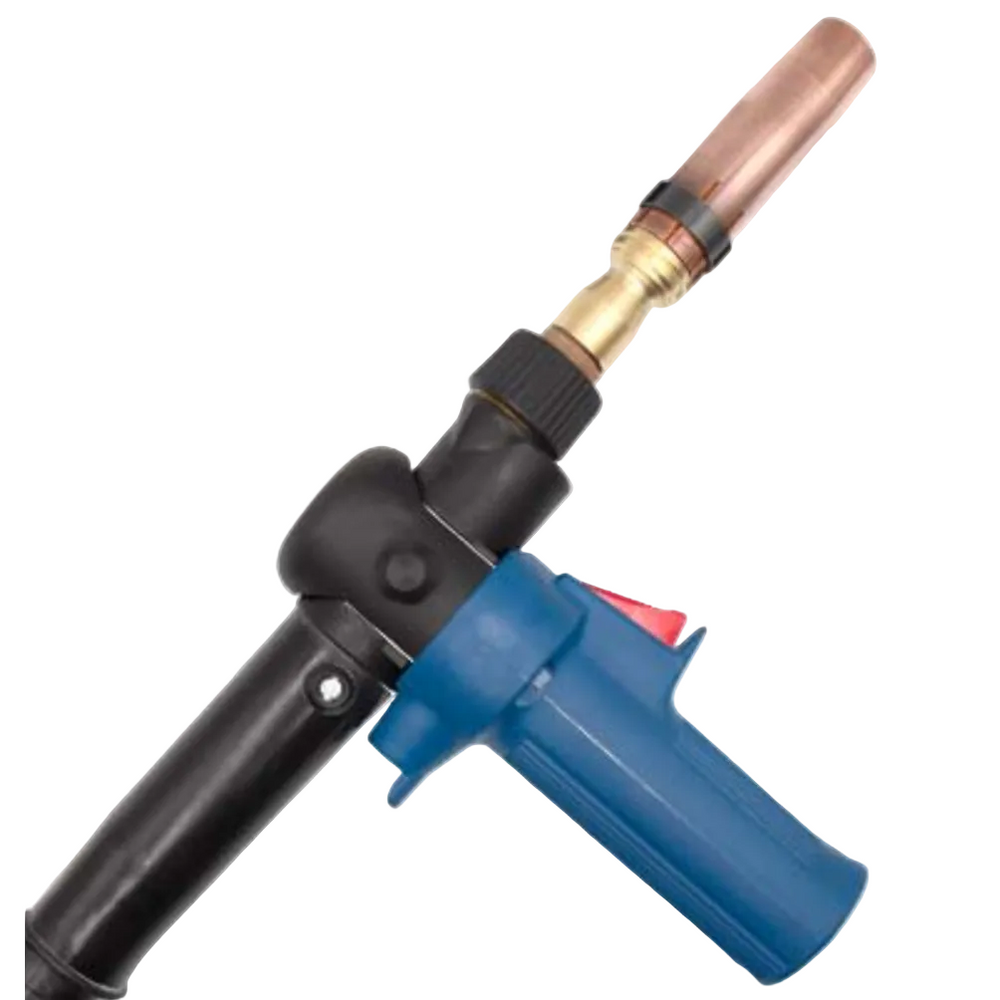

Binzel PPG26KD Push Pull Gun 25' Air-Cooled 180D

$5,868.43

CAD · Taxes and shipping calculated at checkout

  • 081.0033) is a high-performance welding solution specifically designed for consistent wire feeding over long distances, making it ideal for soft wires like aluminum.
  • This 25-foot model features a 180-degree (straight) swan neck and a robust pistol grip handle, providing ergonomic control and reducing operator fatigue during extended use.
  • Rated for a 60% duty cycle, it delivers 240 Amperes with CO2 gas and 220 Amperes with mixed gases, accommodating wire sizes ranging from .024 to .062 inch (0.6 to 1.6 mm).
Variants: Push Pull Gun 25ft

905 919 1177
  • Free standard shipping on orders $189+ (before taxes) – ships Canada-wide from Toronto
  • Free shipping $189+Canada-wide, tracked delivery to shops and job sites
  • Toronto showroomSee it in person, or collect at the counter
  • Expert supportTalk to people who weld, not a script
  • Secure checkoutEncrypted payment through Shopify

Overview

PPG26KD Push Pull Gun 25ft Air-Cooled 180D

The PPG 26 KD Push-Pull Gas-Cooled Torch (Part No. 081.0033) is a high-performance welding solution specifically designed for consistent wire feeding over long distances, making it ideal for soft wires like aluminum. This 25-foot model features a 180-degree (straight) swan neck and a robust pistol grip handle, providing ergonomic control and reducing operator fatigue during extended use. Rated for a 60% duty cycle, it delivers 240 Amperes with CO2 gas and 220 Amperes with mixed gases, accommodating wire sizes ranging from .024 to .062 inch (0.6 to 1.6 mm). Equipped with a 7-pin Amphenol connector, utilizing the Bikox cable system for optimum cooling and flexibility.

Key Features

  • 081.0033) is a high-performance welding solution specifically designed for consistent wire feeding over long distances, making it ideal for soft wires like aluminum.
  • This 25-foot model features a 180-degree (straight) swan neck and a robust pistol grip handle, providing ergonomic control and reducing operator fatigue during extended use.
  • Rated for a 60% duty cycle, it delivers 240 Amperes with CO2 gas and 220 Amperes with mixed gases, accommodating wire sizes ranging from .024 to .062 inch (0.6 to 1.6 mm).

Technical Specifications

Wire Diameter .035", .045"
Duty Cycle 60%
Available Lengths 25ft, 28ft, 17ft

Part Number & Size Reference

Part Number / SKU Size / Description
MW081.9085.US Push Pull Gun 25ft
MW14.0095 45D Swanneck
MW80.0048 Drive Roll .035 inch
MW80.0022 Drive Roll .045 inch
MW18.0116 DIFFUSOR 26 inch
MW128.9038 Hi Life Liner 030-045 inch 28ft
MW128.9039 Hi Life Liner 052-062 inch 28ft
MW128.9040 Hi Life Liner 030-045 inch 17ft
MW128.9041 Hi Life Liner 052-062 inch 17ft
MW81.9071 Guide Wire 45D
MW125.9003 PTFE Liner 052-062 inch
MW120.0041 Brass Liner 040-062 inch BULK

Other Products

ABIMIG 15ft MIG Gun Air-Cooled | ABIMIG W Water-Cooled MIG Gun WT440 | Aluminum Liner for ABIMIG Binzel MIG Gun | M6 Binzel Contact Tips (25-Pack) | M8 Binzel Contact Tips (25-Pack) | M8 Heavy Duty CuCrZr Binzel Contact Tips (25-Pack) | MB Series Air-Cooled MIG Guns 15' MB36KD | MIG Gas Diffusers for ABIMIG Binzel Guns (5-Pack) | MIG Gun Stand with Magnetic Base | MIG Nozzles 5/8" for MB Binzel Guns (10-Pack) | MIG Nozzles for ABIMIG Binzel Guns (5-Pack) | MIG Nozzles for Push-Pull Binzel Guns (10-Pack)

Specifications

Binzel PPG26KD Push Pull Gun 25' Air-Cooled 180D - specifications
BrandAbicor Binzel
Product typeMIG Accessories
VariantsPush Pull Gun 25ft, 45D Swanneck, Drive Roll .035 inch, Drive Roll .045 inch, DIFFUSOR 26 inch, Hi Life Liner 030-045 inch 28', Hi Life Liner 052-062 inch 28', Hi Life Liner 030-045 inch 17', Hi Life Liner 052-062 inch 17', Guide Wire 45D, PTFE Liner 052-062 inch, Brass Liner 040 inch -062 inch BULK

Sizes & pricing

Every option with its part number and price. Select one to load it into the cart above.

Option SKU PriceSelect
Push Pull Gun 25ft MW081.9085.US$5,868.43
45D Swanneck MW14.0095$477.28
Drive Roll .035 inch MW80.0048$150.89
Drive Roll .045 inch MW80.0022$150.89
DIFFUSOR 26 inch MW18.0116$14.66
Hi Life Liner 030-045 inch 28' MW128.9038$170.13
Hi Life Liner 052-062 inch 28' MW128.9039$170.13
Hi Life Liner 030-045 inch 17' MW128.9040$102.30
Hi Life Liner 052-062 inch 17' MW128.9041$102.30
Guide Wire 45D MW81.9071$53.95
PTFE Liner 052-062 inch MW125.9003$10.27
Brass Liner 040 inch -062 inch BULK MW120.0041$105.92

Not sure this is the right part?

Tell us the machine, the material and the job. A welding specialist - not a call centre - will confirm fit and pricing, including volume and trade quotes.
