Abicor BinzelMIG AccessoriesSKU MW145.D243

Binzel ABIMIG AT 415 Threaded MIG Nozzles (5-Pack) – 145.D243, 145.D244, 145.D245

$295.00

CAD · Taxes and shipping calculated at checkout

  • Threaded nozzle for ABIMIG AT 415 and DELTA-MIG 4.
  • Fits the H4T-8-C tip holder / gas diffuser.
  • Concentric threaded fit keeps the tip centred and stops gas leaks.
  • Nickel-plated finish for spatter resistance.
Bore: 145.D243 – 1/2 in (13 mm) Recessed

905 919 1177
  • Free shipping from $100–$250 depending on your province (before taxes) – ships Canada-wide from Toronto
  • Free shipping from $100Province-based flat rates, tracked delivery to shops and job sites
  • Toronto showroomSee it in person, or collect at the counter
  • Expert supportTalk to people who know, not a script
  • Secure checkoutEncrypted payment through Shopify

Overview

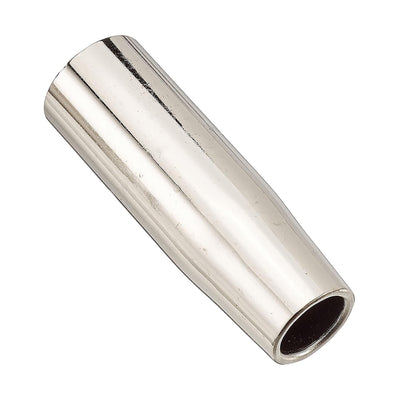

Binzel ABIMIG AT 415 Threaded MIG Nozzles (5-Pack)

Abicor Binzel threaded gas nozzles for ABIMIG AT 415 air-cooled MIG guns and DELTA-MIG 4 (400A CO2 / 355A mixed gas, 60% duty cycle). The nozzle threads on securely and concentrically, keeping the contact tip centred and the shielding gas flowing straight into the weld pool. The nickel-plated finish resists spatter build-up and makes cleaning faster.

Pick the bore for the job: a smaller bore gives better access and visibility in tight joints, while a larger bore gives wider gas coverage for higher amperage and spray transfer. 145.D244 is the factory-standard AT 415 nozzle. Use with the H4T-8-C tip holder. Sold in packs of 5.

Key Features

  • Threaded nozzle for ABIMIG AT 415 and DELTA-MIG 4.
  • Fits the H4T-8-C tip holder / gas diffuser.
  • Concentric threaded fit keeps the tip centred and stops gas leaks.
  • Nickel-plated finish for spatter resistance.
  • Sold in packs of 5.

Technical Specifications

Gun ABIMIG AT 415 and DELTA-MIG 4
Rating (60% duty cycle) 400A CO2 / 355A mixed gas
Compatible Tip Holder H4T-8-C
Mounting Threaded
Pack Size 5

Part Number & Size Reference

Part Number / SKU Size / Description
MW145.D243 145.D243 – 1/2 in (13 mm), recessed
MW145.D244 145.D244 – 5/8 in (16 mm), recessed
MW145.D243 145.D245 – 3/4 in (19 mm), recessed

Other Products

Binzel M6 Contact Tips (25-Pack) | Binzel M8 Contact Tips (25-Pack) | Binzel M8 Heavy-Duty CuCrZr Contact Tips (25-Pack) | H2T-6-C Tip Holder / Gas Diffuser – ABIMIG AT 255 | H3T-6-C & H3T-8-C Tip Holder / Gas Diffuser – ABIMIG AT 355 | H4T-8-C Tip Holder / Gas Diffuser – ABIMIG AT 415 | ABIMIG AT 255 Threaded MIG Nozzles | ABIMIG AT 355 Threaded MIG Nozzles | ABIMIG AT 355 Tapered Pipe Welding Consumables | ABIMIG 15ft MIG Gun Air-Cooled | Aluminum Liner for ABIMIG MIG Gun | Steel Liner for Binzel MIG Gun SI-3545, SI4-5262

Specifications

Binzel ABIMIG AT 415 Threaded MIG Nozzles (5-Pack) – 145.D243, 145.D244, 145.D245 - specifications
BrandAbicor Binzel
Product typeMIG Accessories
Bore145.D243 – 1/2 in (13 mm) Recessed, 145.D244 – 5/8 in (16 mm) Recessed, 145.D245 – 3/4 in (19 mm) Recessed

Sizes & pricing

Every option with its part number and price. Select one to load it into the cart above.

Option SKU PriceSelect
145.D243 – 1/2 in (13 mm) Recessed MW145.D243$295.00
145.D244 – 5/8 in (16 mm) Recessed MW145.D244$295.00
145.D245 – 3/4 in (19 mm) Recessed MW145.D243$295.00

Not sure this is the right part?

Tell us the machine, the material and the job. A welding specialist - not a call centre - will confirm fit and pricing, including volume and trade quotes.

905 919 1177
