What Size MIG Gun Do I Need? 200A vs 300A vs 400A and Cable Length Guide

200 A vs 300 A vs 400 A MIG guns at a glance

The amp class tells you roughly how much heat a gun can carry. It does not make every gun in a class the same: duty cycle, gas basis, cooling, connector and wire range all vary by model.

These are general selection guidelines, not universal product specifications. The maker's rated current, duty cycle, gas basis, cooling method and your operating conditions decide whether a gun suits the job. Wire ranges also vary by connector and cable length within one gun line.

Size the gun to the work, not the machine's maximum

A MIG gun's amp rating is a heat limit, not a breaking point. The rating marks the temperature at which the handle or cable becomes uncomfortably warm, not the point where the gun is damaged.

Most welders are not arc-on as much as they think. Gun makers put typical manual arc-on time at about half the working time or less: under 5 minutes in a 10-minute period, or about 30 minutes in an hour. That is why a gun rated below your peak current often does the job.

Four things decide the size you need: the current you weld at, how long each weld lasts, the shielding gas, and the transfer mode. Short-circuit transfer runs at lower current than spray transfer, and spray needs an argon-rich mix, which heats the gun more. A shop running spray transfer on argon mix needs a bigger gun than one running short-circuit on CO2 with the same wire.

Is a higher-amperage MIG gun always better?

No. Higher-amp air-cooled guns carry larger cables, connections and handles. That makes them heavier, less flexible and more expensive, and an oversized gun adds fatigue and can cut productivity. Gun makers recommend the smallest, lightest gun that covers the work.

What happens if your gun is undersized?

The gun runs past its temperature limit. The handle and the back of the cable get too hot to hold comfortably, and sustained heat weakens connections and the power cable and shortens the gun's life. The extra heat also wears components faster, so the gun and its consumables need replacing sooner.

What the amp rating on a MIG gun means

Every gun rating has three parts: a current, a duty cycle and a shielding gas. A rating that leaves out the duty cycle or the gas can't be compared with another gun's rating.

Duty cycle is the share of a 10-minute period a gun can weld at its rated current without overheating. A gun rated at 60% duty cycle can weld for 6 minutes in every 10. A gun rated at 100% can weld continuously. Welding machines carry a duty cycle too, and it is often lower than the gun's.

Swipe sideways to see the whole drawing.

Shielding gas changes the rating because it changes the heat. An argon-rich mix gives a hotter arc than pure CO2, so a gun reaches its temperature limit at a lower current on mixed gas. Many gun ratings are based on 100% CO2, so a gun rated for CO2 runs hotter on a 75% argon, 25% CO2 mix. Check which gas a rating is based on before you compare guns.

Can you run a gun above its rating?

For short welds, yes. A 300 A gun can typically weld at 400 A or more for a limited time. The question is how long. Heat in a cable rises with the square of the current, so the standard duty-cycle calculation for welding equipment gives a working estimate:

Estimated duty cycle = rated duty cycle × (rated current ÷ actual current)²

• 300 A gun rated 60%, welding at 400 A: 60 × (300 ÷ 400)² = about 34%, or roughly 3.4 minutes in 10.
• 400 A gun rated 60%, welding at 250 A: 60 × (400 ÷ 250)² = over 100%, so it can weld continuously at that current.
• Check against published guidance: gun makers say a 300 A gun can run at 400 A at around 50% duty cycle, and that one rated at 100% may suit 400 A work. For a gun rated at 100%, the calculation gives about 56% at 400 A.

Swipe sideways to see the whole chart.

Is a 200 A gun enough for .030, .035 and .045 in. wire?

Usually, yes, for short-circuit transfer. Wire diameter is only one factor: the current you run and the transfer mode decide the gun size. The same .045 in. wire runs at about 145 to 200 A in short-circuit transfer and about 285 to 340 A in spray transfer, according to one wire maker's published procedures for ER70S-6 solid steel wire.

Current figures are one wire maker's typical operating procedures for ER70S-6 solid steel wire. Your machine's settings chart and the job decide the actual values. The gun class column is our sizing guidance, based on typical mixed-gas gun ratings.

What about .023 in. wire? It runs at the bottom of the range, so any 200 A gun can carry the current. The question is fit: not every gun lists .023 in. wire, and you need a liner and contact tips sized for it. Some liner ranges, for example, use a separate liner for .023 to .030 in. wire.

Does thicker wire always need a bigger gun? Not for the current alone, as the .045 in. short-circuit row shows. But makers build larger wire into larger guns. One major gun line, for example, lists its 200 A gun for wire up to 1/16 in. and its 300 and 400 A guns up to 5/64 in. Check that the gun, liner and tips are listed for your wire.

Match the gun to your machine

On most small and mid-size machines, the machine's own duty cycle runs out before the gun's. Compare the two at the current you weld at.

• A 200 A machine rated 25% at 200 A: at full output the machine allows 2.5 minutes in 10. A 200 A gun rated 60% on CO2 allows 6. The machine is the limit, so a 200 A gun is enough.
• A 250 A machine rated 25% at 250 A: at 250 A the estimate for a 200 A, 60% gun is about 38%, still above the machine's 25%. A 200 A gun covers it on CO2. Choose 300 A if you will run long seams near 250 A on argon mix, or plan to move up to a bigger machine.

Can you use a higher-amperage gun on a lower-amperage machine? Yes, if the rear connector, trigger plug and gas connection fit. A bigger gun will not hurt the machine or the weld, and it will never see more current than the machine delivers. You pay in weight, stiffness and price, and its consumables cost more.

Will a 300 A or 400 A gun fit my welding machine?

The amp class has little to do with fit. Check these five points before you order:

1. Power pin: the rear connector must match the machine or feeder's gun receiver. Connectors come in several families, and most machines use one of a few common types, including the Euro connector. One gun line can be offered with several power-pin versions, so match the pin, not just the gun.
2. Trigger connection: the trigger plug or leads must match the machine's control socket. Spool guns and push-pull guns also need a matching multi-pin control plug, such as a 7-pin plug.
3. Gas connection: some connector types carry gas through the power pin, others use a separate gas hose. Check which type your machine uses.
4. Feeder hardware: some feeders need a receiver bushing for a larger gun. Check the feeder's manual before you order.
5. Liner and drive rolls: the liner must suit your wire diameter and cable length. Drive rolls in the feeder follow the wire, not the gun, so a bigger gun does not change them.

Adapters and “universal” guns. No MIG gun fits every machine out of the box. Guns sold as universal use interchangeable connector kits or adapters. Connector kits swap a gun's rear connector to suit a different feeder, and adapter kits let a gun with one connector type run on a feeder built for another. The trigger plug still has to match.

Match the gun to the consumables you stock

Every MIG gun is built around one consumable system: one family of contact tips, diffusers and nozzles. The gun takes that system for its whole life, and it tells you nothing about the rear connector, so confirm both. If you already keep one system's tips and nozzles in stock, pick a gun that uses them. Our MIG contact tip and nozzle compatibility chart lists the parts for each system.

What to send us when you order a replacement gun

• The machine or feeder's make and model, and a photo of its rating plate.
• A photo of your current gun's rear connector and trigger plug.
• Your wire type and diameter, and your shielding gas.
• The current you usually weld at and how long your welds run.
• The cable length you need.
• The tips and nozzles you already stock, with part numbers if you have them.

With those, we can match the gun or quote a custom build through Build Your MIG Gun. Moving up from a 200 A gun to a 300 A or 400 A gun usually works on the same feeder, provided the new gun's connector and trigger plug fit it.

MIG gun cable length: 10 ft vs 15 ft vs 25 ft

Use the shortest cable that reaches the work. Gun makers give the same rule: a longer cable is more likely to coil or loop and upset wire feeding. 15 ft is the most common length, because most welding booths keep everything within about 15 ft of the machine.

Major gun makers offer air-cooled guns in 10, 15, 20 and 25 ft, and some lines add 8 or 12 ft.

Wire diameter sets the practical limit. Small wire such as .035 in. can lack the stiffness to push through a 20 ft cable without bending or snagging. Makers build that into their ranges: some small guns are listed only for wire up to .035 in., and only in 10, 12 and 15 ft lengths.

Is 15 ft better than 10 ft? Only if you need the reach. A 10 ft gun is lighter and feeds small wire more easily. A 15 ft gun saves moving the machine in a typical shop.

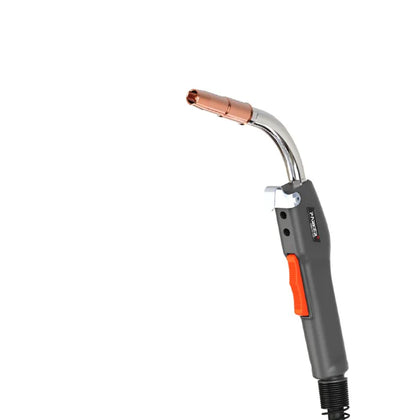

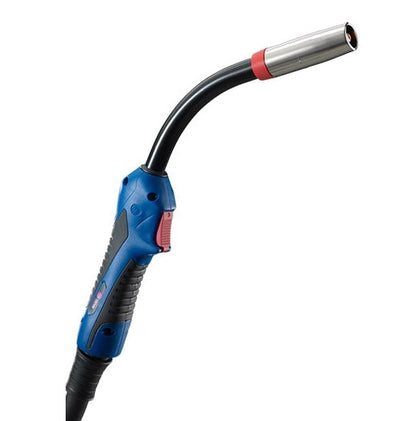

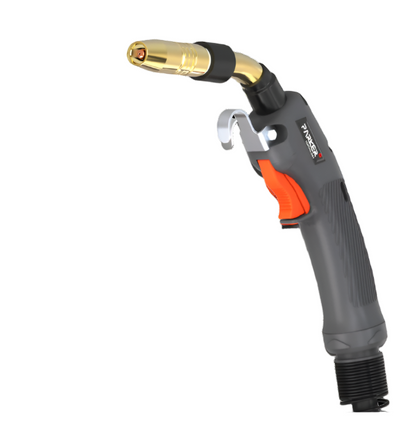

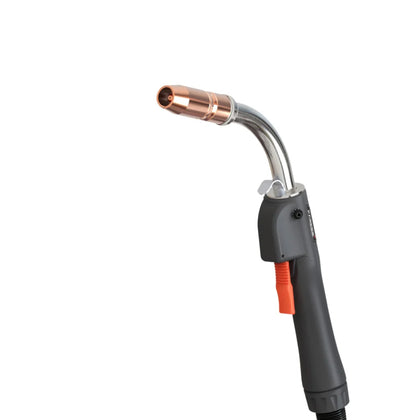

MapleWeld stocks its standard air-cooled guns in 15 ft. For 10, 20 or 25 ft, or a different connector, send your spec through Build Your MIG Gun and we will quote it.

Does a longer MIG gun cable cause voltage drop?

A little. More copper means more resistance, so a 25 ft cable loses slightly more voltage than a 10 ft cable of the same size. In a gun sized for its rating, the bigger risks are poor connections and wire drag. Loose or dirty feeder connections build heat and cause voltage drop.

Cable length matters more in the welding leads back to the power source. Welding cables are sized by current and their combined length. One maker's chart for a portable wire feeder, for example, calls for 2 AWG cable at 200 A and 60% duty cycle up to 150 ft of combined length, 1 AWG to 200 ft and 1/0 to 250 ft.

Longer gun, or move the wire feeder?

To reach well beyond 15 ft, take the wire to the work instead of pushing it further. A portable wire feeder on longer weld cables keeps the gun short. Some feeder systems built for this extend the work area up to 40 ft from the welder. For aluminum, or for steel at a distance from a small machine, a spool gun does the same job. Choose a longer gun only for a few extra feet of reach.

Swipe sideways to see the whole drawing.

Aluminum wire needs a shorter push

Soft aluminum wire buckles when it is pushed too far. Aluminum welding specialists recommend keeping a push gun's cable to 12 ft or less for aluminum. At 3/64 in., 5356 wire feeds better than 4043, and .035 in. aluminum wire needs a push-pull feeder. Soft wire pushed 10 or 15 ft through a regular gun is prone to feeding problems.

• Spool gun: a small spool rides on the gun, so the wire travels only a few inches. It only works on a machine built to take one, so check that yours has a spool-gun connection before you buy.
• Push-pull gun: a motor in the handle pulls the wire while the feeder pushes, so long cables work. See our push-pull guns.

Match the liner to the cable and the wire

The liner runs the full length of the cable, so it is sold by cable length as well as wire size. Fit the liner made for your gun's length and wire diameter, then trim the front end to the length your diffuser calls for. Gun makers publish the trim length for each diffuser or retaining head. Our steel and aluminum liners for the common gun systems are in Necks & Liners.

Air-cooled or water-cooled?

Most shops need an air-cooled gun. Air-cooled guns are made from about 150 A up to 600 A, and water-cooled guns generally start at about 300 A. Air-cooled guns are simpler, cheaper and better suited to field work.

Water-cooled guns pump coolant from a radiator through the cable to the handle and neck. They carry more current for their size and run their consumables cooler. One maker, for example, rates a water-cooled gun at 500 A on CO2 at 100% duty cycle, against 400 A at 60% for one of its air-cooled guns.

The trade-off is equipment and upkeep. You need a cooling unit and specially treated coolant, not tap water, which can grow algae or scale. A water-cooled gun makes sense for sustained high-current production, for helium mixes, which run hotter, and for high-amp pulsed welding. For sheet metal welded a few minutes an hour, it doesn't.

When to upgrade: signs your gun is too small

Three signs point to an overheating gun:

• Heat at the back of the gun and in the cable: usually a sign you are past its duty cycle.
• Blue or discoloured liner end: oxidation from heat, sometimes caused by resistance elsewhere in the gun.
• Handle chatter: the handle vibrates and the arc length changes rapidly.

Before you buy a bigger gun, rule out the other common causes: loose consumables, consumables sitting too close to the weld pool, and a poor or distant work clamp. Try these first:

1. Tighten the neck, diffuser and contact tip so every joint seats firmly.
2. Lengthen stickout slightly, raising wire feed speed and voltage to suit. Even a small increase lowers tip and gun temperature.
3. At high current, use a nozzle that recesses the tip by 1/8 to 1/4 in. instead of a flush one.
4. Clamp the work lead close to the weld on clean metal.
5. Switch to heavy-duty consumables.

Upgrade from 200 A to 300 A, or 300 A to 400 A, when the gun still runs hot on every long weld after those fixes, or when you move to spray transfer, larger wire or longer arc-on time.

Frequently asked questions

The short version

• Size to your work: the current you weld at, your arc-on time, gas and transfer mode, not the machine's maximum.
• Read the whole rating: current, duty cycle and gas. Step up a class for long welds on argon mix.
• Keep the cable short: 15 ft for most shops, 12 ft or less for aluminum on a push gun.
• Match both ends: the connector and trigger plug for your machine, the consumables you already stock.
