Plasma Cutter Troubleshooting: Bad Cuts, Dross, and Lost Arc

Plasma Cutter Won’t Cut All the Way Through

Every plasma cutter and torch has two thickness ratings from the manufacturer, not one: a Clean Cut rating (the thickness it cuts with a smooth, quality edge at full working speed) and a Severance or Max Cut rating (it will cut through, but slower and rougher — often close to double the Clean Cut number). If you’re working right at or past the severance rating for your machine, no technique adjustment fixes an incomplete cut; you need a higher-output machine or a thinner-gauge job.

If you’re well within your machine’s rated capacity and still not cutting through, check three things before assuming the machine is underpowered: a worn electrode or nozzle (both erode with use and increase resistance in the arc), standoff distance held too high above the work, and cut speed set faster than the amperage supports. A quick test cut on scrap at a slower travel speed isolates whether it’s a settings problem or a worn-parts problem.

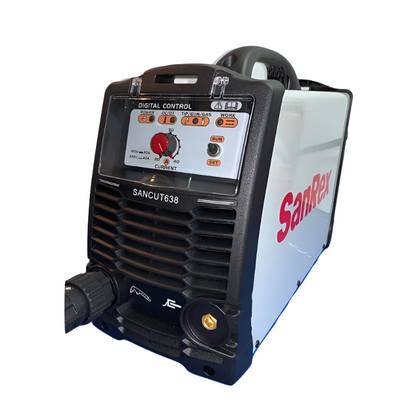

SanRex SanCut638 Plasma Cutting Machine

5–40A output, 3/8 in (9.5 mm) clean cut, 3/4 in (19 mm) max/severance cut, dual-voltage 120/240V input. If you’re consistently working past your current machine’s severance rating, this is the fix — not another consumable swap.

View SanCut638

Excessive Dross and Rough-Cut Edges

Dross is the re-solidified molten metal that clings to the bottom (or top) edge of a plasma cut. Where it forms tells you what to fix. Bottom dross (a hard bead stuck to the underside of the cut) usually means the cut speed is too fast or the amperage is slightly too low for the thickness — the arc isn’t fully piercing before it moves on. Top dross or heavy spatter on the top surface usually means the opposite: speed too slow or amperage too high, over-melting the entry edge. A rounded top edge with a slight bevel is often just standoff distance held too far from the work.

Before adjusting amperage, try adjusting speed first — it’s the variable most cutters get wrong, and it’s free. If dross persists after a speed correction on a fresh test cut, the nozzle orifice is likely worn oversized or off-round, which widens the arc and changes how cleanly it exits the material.

Arc Keeps Cutting Out or Won’t Start

A pilot arc that won’t fire, or a cutting arc that drops out partway through a pass, is almost always one of four things: a worn or pitted electrode tip (it erodes with every start-stop cycle and eventually can’t sustain a stable pilot arc), air pressure below the machine’s spec, moisture in the air line disrupting the arc, or a poor work-clamp connection — a loose or corroded ground clamp is an easy thing to overlook when troubleshooting the torch itself.

Check your machine’s manual for its exact air pressure requirement; most shop and hobby plasma cutters call for clean, dry, oil-free air, commonly in the 60–90 PSI (4–6 bar) range depending on the model, and running below that spec is one of the most common causes of an unstable arc.

Double Arcing and Fast Consumable Wear

Double arcing happens when the arc jumps from the electrode to the inside of the nozzle instead of exiting cleanly through the orifice — it sounds like a sharp pop or crackle and destroys a nozzle in seconds. The usual causes are standoff distance held too close to the work, a nozzle orifice that’s already worn, damaged, or spatter-clogged, or contaminated air. Once a nozzle shows an enlarged, oval, or pitted orifice, replace it rather than continuing to cut — a damaged nozzle accelerates wear on the electrode and swirl ring behind it too.

Warping on Thin Sheet Metal

Warping on thin gauge material is a heat-input problem, not a cutting-technique problem. It happens when amperage or dwell time puts more heat into the sheet than it can dissipate before the next pass. Drop to the lowest amperage and fastest travel speed that still gives a clean cut for the gauge, clamp or weight the sheet to help conduct heat away, and on long or intricate cuts, break the path up so heat doesn’t concentrate in one area. If you’re fighting warping on every thin-sheet job, it’s often a sign the machine is set for a heavier gauge than what’s actually on the table.

Air Pressure and Moisture Problems

Plasma cutting runs on compressed air (or in some setups, other supplied gases) to both form the arc and blow the molten metal out of the kerf — so air quality is as much a consumable-life and cut-quality issue as it is an arc-stability one. Moisture in the line causes pitted, short-lived electrodes and inconsistent cuts; oil carried over from a poorly maintained compressor coats the nozzle and torch internals. An inline filter/regulator combo and a compressor that’s drained regularly go a long way toward solving problems that look, at first, like a bad torch or a bad batch of consumables.

Matching Consumables to Your Machine

Plasma torch consumables — electrode, nozzle, swirl ring, shield/retaining cap — are matched to your specific torch and amperage range, not universal across every machine. That said, many aftermarket parts cross-reference cleanly to the original manufacturer’s torch design, which is why you’ll see the same part fit several machine brands and models built around a shared torch platform — it’s common to find one nozzle or electrode listed as compatible with more than one system. Check your torch model and rated amperage (usually stamped on the torch body or in your machine’s manual) before ordering, and always replace electrode, nozzle, and swirl ring together when one shows wear — they wear as a set, and mixing a fresh nozzle with a worn electrode reintroduces the same arc problems.

Thermacut 220478 Plasma Electrode 30A (5-Pack)

A Powermax 30/45-compatible electrode — the part most likely to be the real cause of a weak pilot arc or a lost arc mid-cut. Replace it alongside your nozzle and swirl ring, not on its own.

View Electrode 5-Pack

Common Mistakes When Troubleshooting a Plasma Cutter

• Changing amperage before checking cut speed — speed is the more common culprit for both top and bottom dross.
• Replacing only the nozzle after double arcing, without checking the electrode and swirl ring behind it for matching damage.
• Running on a compressor with no inline filter/dryer, then troubleshooting the torch for problems that are actually moisture in the air line.
• Assuming a machine is broken when it’s simply being asked to sever material past its rated severance thickness.
• Holding standoff distance by eye instead of using a torch guide or drag shield built for the consumable set in use.

Consumable Cross-Reference by System

A snapshot of real, in-stock MapleWeld plasma consumables by compatible system and amperage — use it alongside the diagnostic table above to identify what you likely need, then confirm against your torch’s part number before ordering. Check each product page for current pricing and stock.

For current pricing on any product mentioned in this guide, check the product page — pricing is not listed here since it changes independently of this article.
