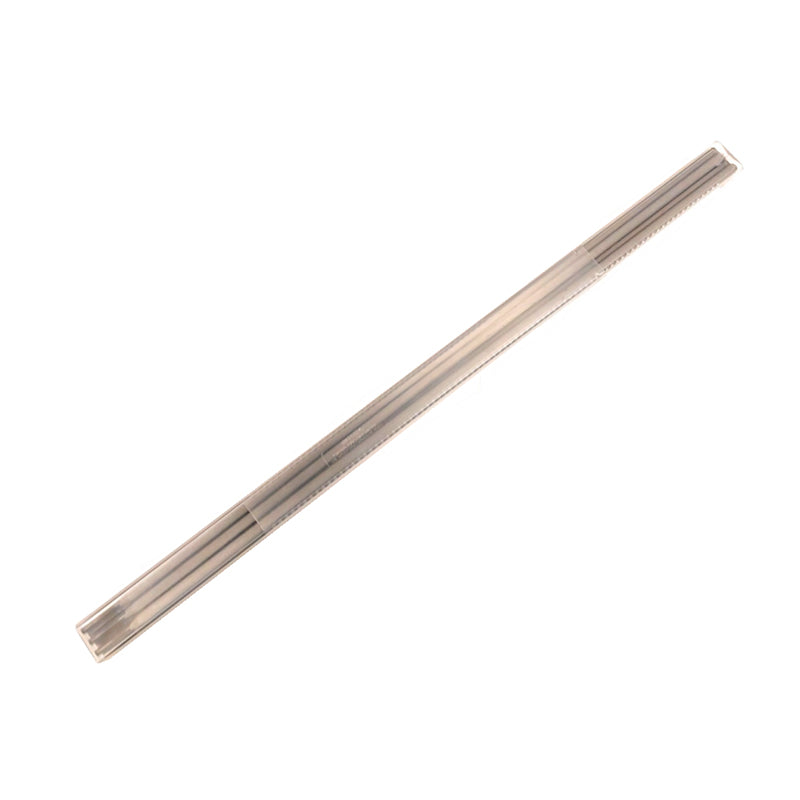

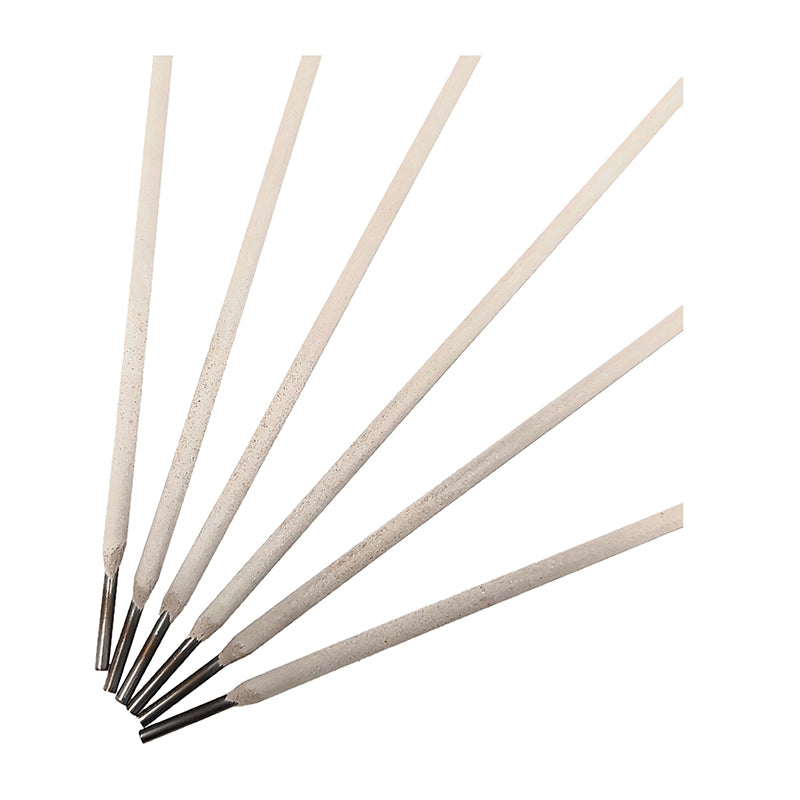

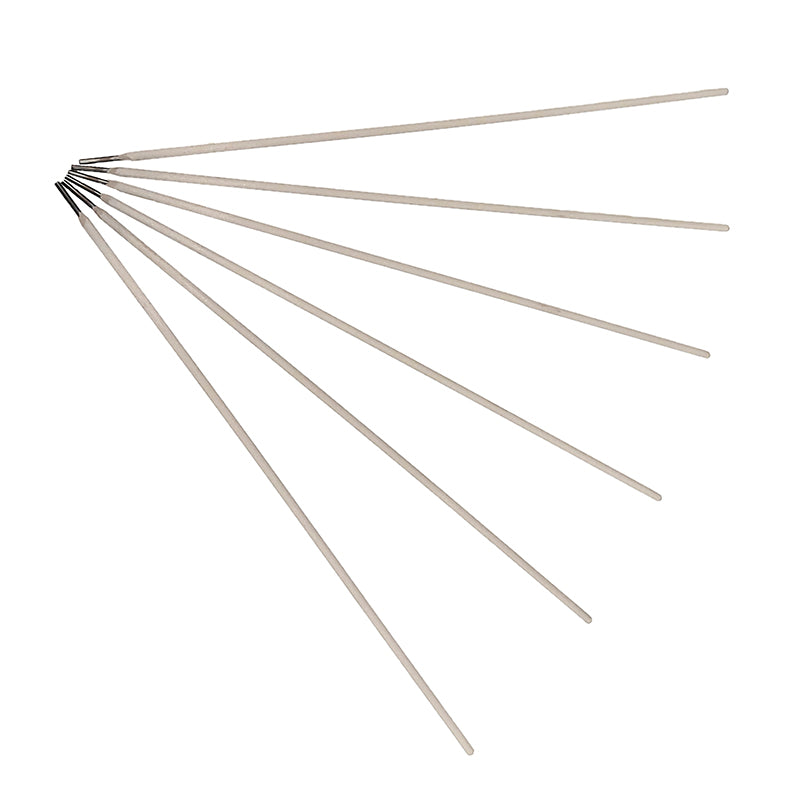

MapleWeld HF24 Earthmoving Equipment Hardfacing Stick Electrode 1/8"
MapleWeld HF24 is a high chromium-iron alloyed electrode designed for earthmoving equipment welding repair, built for applications subject to severe abrasion by sand, cement, mud, and similar materials. It provides a good bond on steel, cast steel, and manganese steel, with a smooth deposit and very low friction coefficient allowing long beads. Applications include repair of dredger teeth, grab jaws, stirring tools, mixers, wear plates, dredge pump parts, centrifugal pumps, augers, and tillage tools.
Key Features
- High chromium-iron alloy for severe abrasion resistance
- Good bond on steel, cast steel, and manganese steel
- Smooth deposit, very low friction coefficient, long beads
- Suited to dredger teeth, grab jaws, mixers, wear plates, pump parts, augers, tillage tools
- Use MapleWeld HF27 as base layer for thick layers
Technical Specifications
| Diameter | 1/8" (3.2mm) |
| Length | 14" |

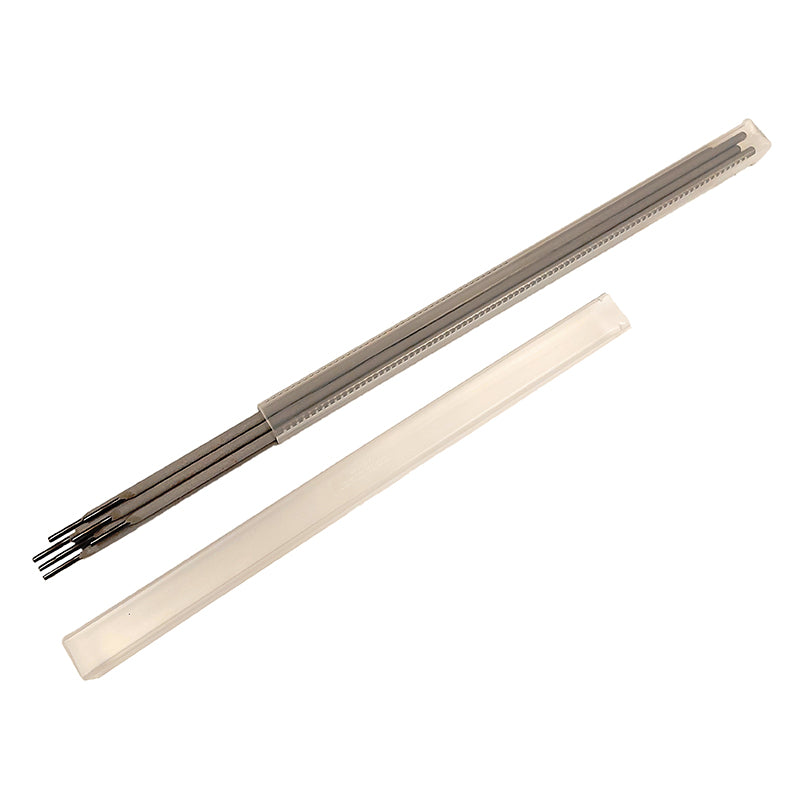

| Package | 1lb sleeve, approx. 8-9 rods |
| Polarity | AC or DC Reverse Polarity |
| Preheat for Crack-Free Coating | 500°C (930°F) |
Part Number & Size Reference
| HF24 1/8" x 14" 1lb Sleeve – $28.99 CAD |
Specifications
| Brand | MapleWeld |
|---|---|
| Product type | All products |
| SKU | MWHF2432 |
| Shipping weight | 0.48 kg |
Not sure this is the right part?
Tell us the machine, the material and the job. A welding specialist - not a call centre - will confirm fit and pricing, including volume and trade quotes.
