Binzel

Abicor Binzel MIG guns and consumables - ABIMIG air- and water-cooled guns, MB Series guns, PPI and PPG push-pull guns, liners, nozzles, diffusers and M6 and M8 contact tips.

Match the tip thread before anything else

Binzel tips come in two threads. M6 tips fit the lighter and mid-range necks; M8 tips fit heavy-duty necks. The two are not interchangeable. Check the thread on the tip you are replacing, then match wire diameter. Heavy-duty M8 tips carry more copper and run cooler in sustained high-amperage work.

Air-cooled or water-cooled

  • Air-cooled guns are simpler and lighter on the job site. Duty cycle drops quickly with mixed gas and high current.
  • Water-cooled guns, such as the ABIMIG W WT440, run longer at high amperage with a lighter handle - they need a cooler.

Aluminum needs the right feed system

Soft aluminum wire buckles in a long steel liner. Fit a dedicated aluminum liner, and for long runs or thin wire use a push-pull gun - the drive motor in the handle pulls wire through the cable instead of pushing it. See push-pull MIG guns.

Keep spatter off the nozzle

Binzel ceramic spray and the cone cap coat the nozzle so spatter does not bond to it. Spatter bridging between nozzle and tip disturbs gas flow and causes porosity.

Binzel parts by type: MIG guns, necks and liners, contact tips, nozzles and gas diffusers.

Trade and volume pricing: call 905-919-1177 or email orders@mapindpro.com.

Counter pickup in North York.

Abicor Binzel ceramic spray and cone cap for MIG gun nozzle protection - MapleWeld Canada Welding AccessoriesAbicor Binzel

Ceramic Spray and Cone Cap

$59.00 Abicor Binzel steel liner SI-3545, SI4-5262 coiled with red sleeve and steel spring MIG AccessoriesAbicor Binzel

Steel Liner for Binzel MIG Gun SI-3545, SI4-5262

$59.00 Binzel M6 thread MIG contact tips 25-pack, copper alloy, pile of tips MIG AccessoriesBinzel

Binzel M6 MIG Contact Tips (25-Pack) โ€“ 140.0169 .035, 140.0379 .045, 140.0516 .052

$94.75 Abicor Binzel ABIMIG W water-cooled MIG gun WT440 ET with blue handle and gooseneck, full view MIG AccessoriesAbicor Binzel

ABIMIGยฎ W Water-cooled MIG Gun WT440 ET 15' LN10 50D

$2,719.00 Binzel M8 MIG contact tips 25-pack, copper tips pile MIG AccessoriesBinzel

Binzel M8 MIG Contact Tips (25-Pack) โ€“ 140.0217 .035, 140.0445 .045, 140.1582 .052

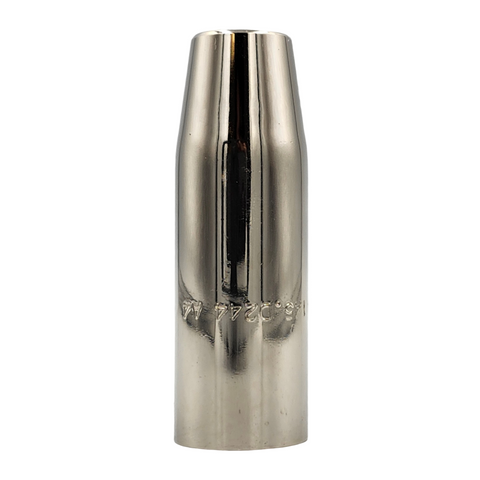

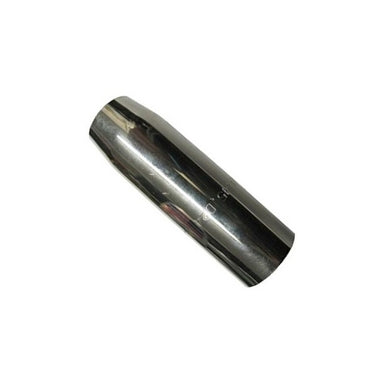

$224.75 Abicor Binzel ABIMIG slim MIG nozzle in dark polished finish, angled side view MIG AccessoriesAbicor Binzel

Binzel ABIMIG AT 415 Threaded MIG Nozzles (5-Pack) โ€“ 145.D243, 145.D244, 145.D245

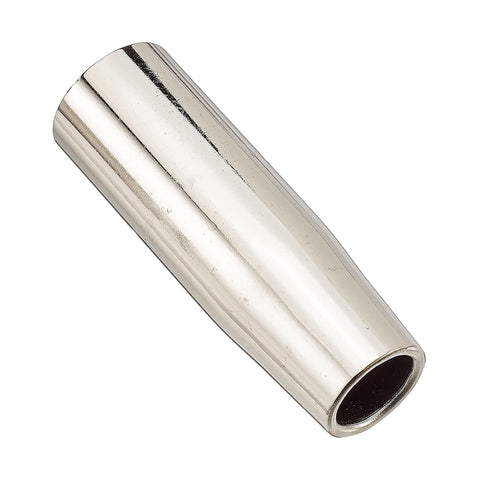

$295.00 Abicor Binzel ABIMIG MIG nozzle in 5-pack, front angled view of open end and bore MIG AccessoriesAbicor Binzel

Binzel ABIMIG AT 255 Threaded MIG Nozzles (5-Pack) โ€“ 145.D015, 145.D016

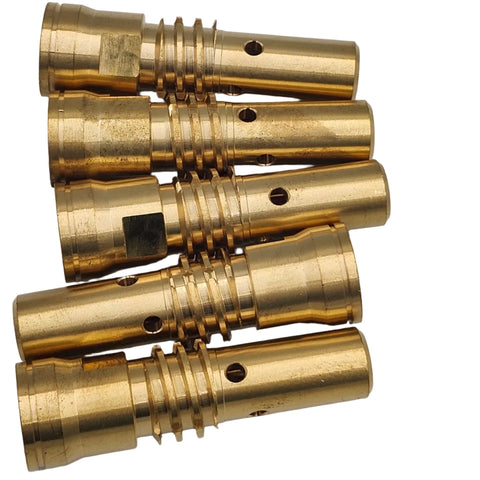

$199.00 Abicor Binzel ABIMIG brass MIG gas diffusers, pack of 5 stacked, showing threads and gas ports MIG AccessoriesAbicor Binzel

Binzel H4T-8-C Tip Holder / Gas Diffuser (5-Pack) โ€“ M8, ABIMIG AT 415

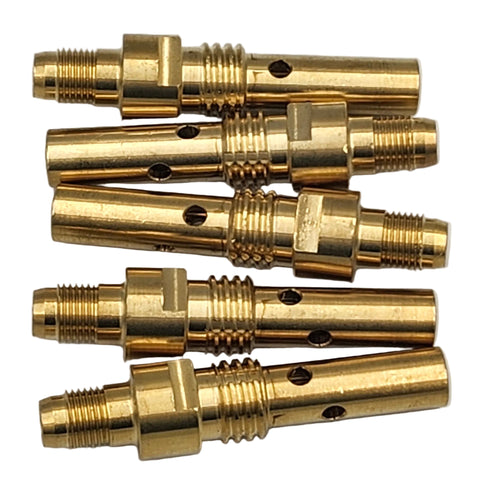

$123.10 Abicor Binzel ABIMIG MIG gas diffusers 5-pack, brass diffusers with threaded tips, side view MIG AccessoriesAbicor Binzel

Binzel H2T-6-C Tip Holder / Gas Diffuser (5-Pack) โ€“ M6, ABIMIG AT 255

$85.75 Binzel PPG26KD push-pull MIG gun 25 ft air-cooled 180D with blue trigger handle and copper contact tip MIG AccessoriesAbicor Binzel

Binzel PPG26KD Push Pull Gun 25' Air-Cooled 180D

$5,868.43 Abicor Binzel MB36KD ERGO 50D air-cooled MIG gun 15 ft with blue handle and curved neck MIG AccessoriesAbicor Binzel

MB Series Air-Cooled MIG Guns 15' ERGO 50D MB36KD

$879.00 Abicor Binzel ABIMIG aluminum MIG gun liner, coiled black liner with brass end fitting MIG AccessoriesAbicor Binzel

Aluminum Liner for ABIMIG Binzel MIG Gunย

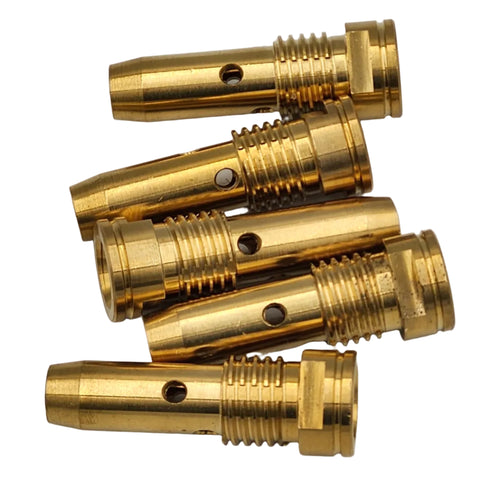

$179.00 Abicor Binzel ABIMIG MIG gas diffusers 5-pack, brass diffusers with side gas holes MIG AccessoriesAbicor Binzel

Binzel H3T-6-C & H3T-8-C Tip Holder / Gas Diffuser (5-Pack) โ€“ ABIMIG AT 355

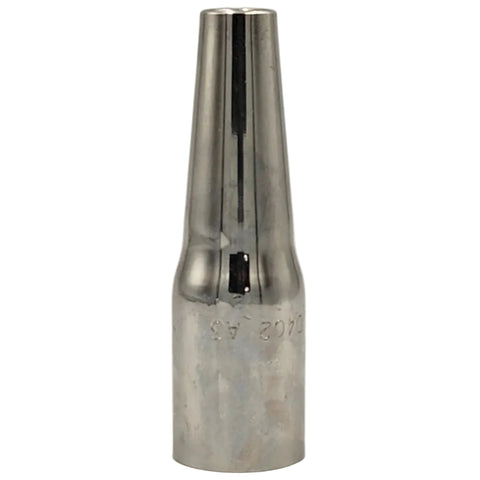

$140.30 Abicor Binzel ABIMIG pipe welding tapered MIG nozzle, narrow nickel-plated nozzle with slot MIG AccessoriesAbicor Binzel

Binzel ABIMIG AT 355 Tapered Pipe Welding Consumables โ€“ 145.D402 Nozzle, H3TP-6-C, 147.1609

$49.90 Abicor Binzel ABIMIG MIG nozzle 5-pack, nickel-plated standard nozzle with slot, side view MIG AccessoriesAbicor Binzel

Binzel ABIMIG AT 355 Threaded MIG Nozzles (5-Pack) โ€“ 145.D025, 145.D023, 145.D026, 145.D022

$229.00 Binzel PPI push-pull MIG gun 15 ft dual drive air cooled Lincoln 7-pin full view with curved neck and handle MIG AccessoriesAbicor Binzel

Binzel Push-Pull PPI Gun 15ft Dual Drive Air Cooled 60D Lincoln 7-PIN

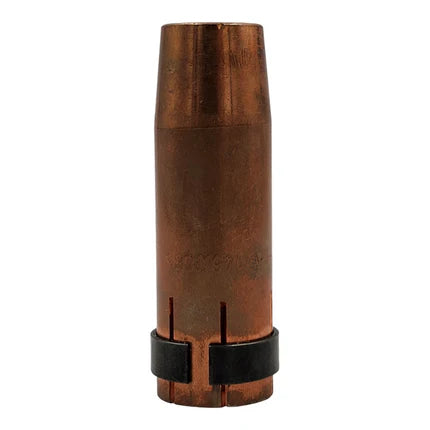

$4,769.00 Abicor Binzel 5/8 inch copper MIG nozzle for push-pull Binzel guns, with slotted base and black ring MIG NozzlesAbicor Binzel

MIG Nozzles 5/8" for Push-Pull Binzel Guns (10-Pack)

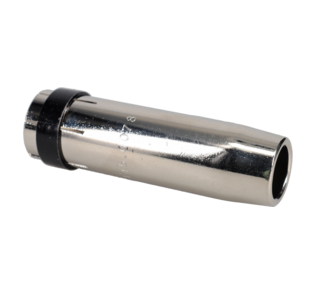

$199.00 Abicor Binzel 5/8 inch MIG nozzle for MB Binzel guns, nickel plated with black insulator ring MIG NozzlesAbicor Binzel

MIG Nozzles 5/8" for MBย Binzel Guns (10-Pack)ย

$199.00 Abicor Binzel ABIMIG 15 ft air-cooled MIG gun with blue handle and steel nozzle MIG AccessoriesAbicor Binzel

ABIMIG 15ft MIG Gun Air-Cooled

$699.00 Binzel M8 heavy duty MIG contact tips 25-pack, copper, pile of tips MIG AccessoriesBinzel

Binzel M8 Heavy-Duty CuCrZr MIG Contact Tips (25-Pack) โ€“ 140.0214, 140.0442, 140.0533

$149.75
