MapleWeldWelding HelmetsSKU MWCV80

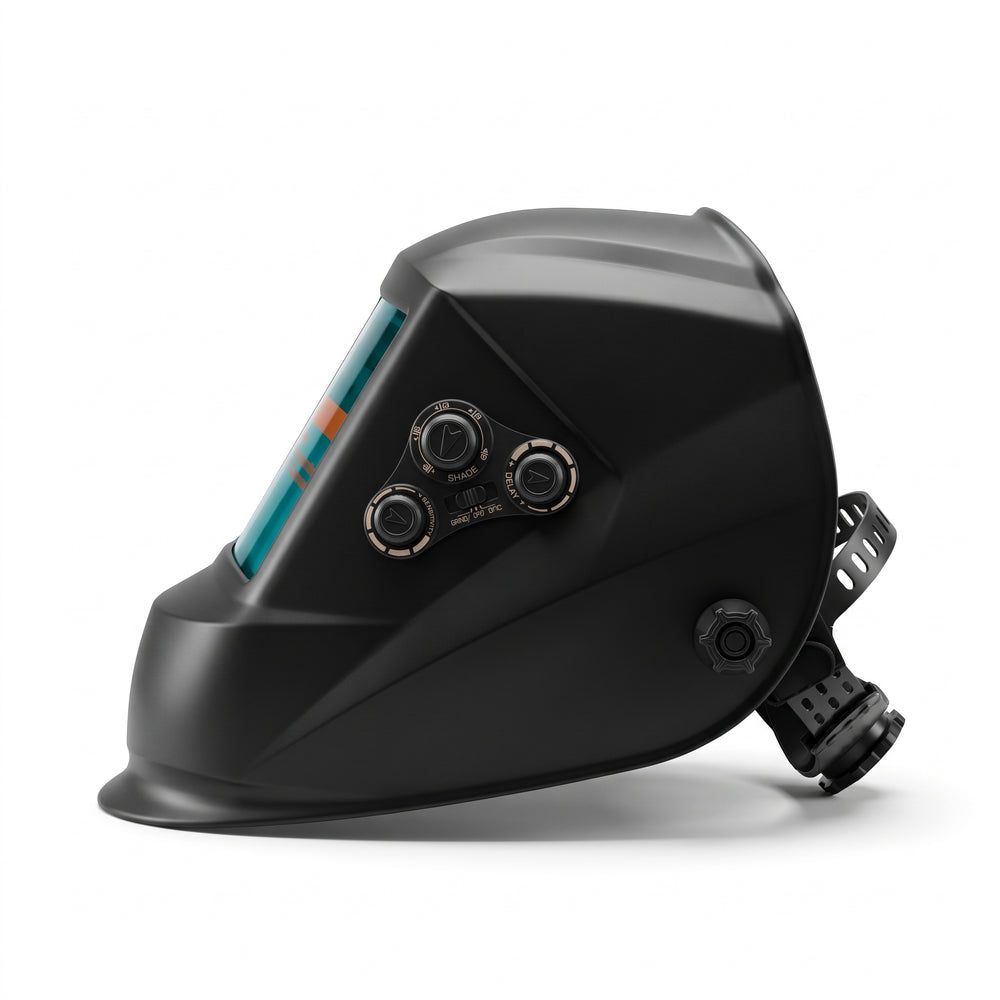

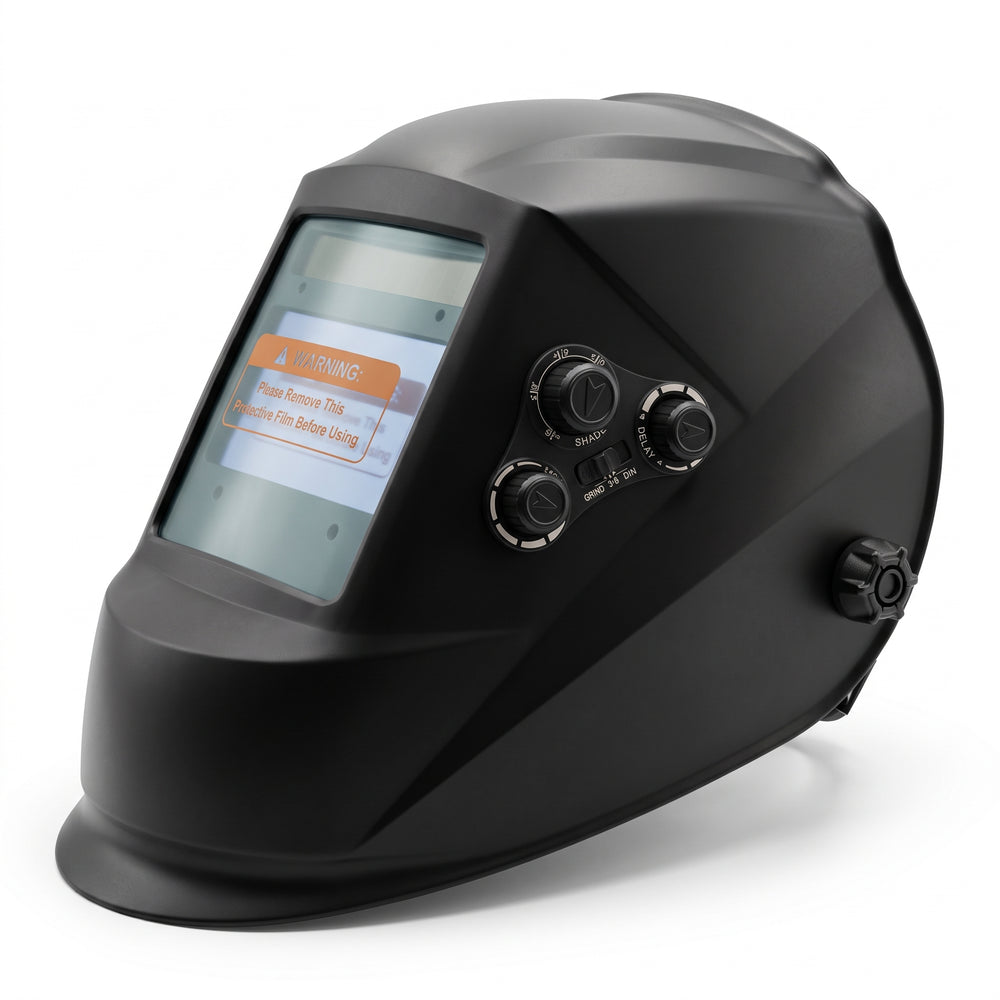

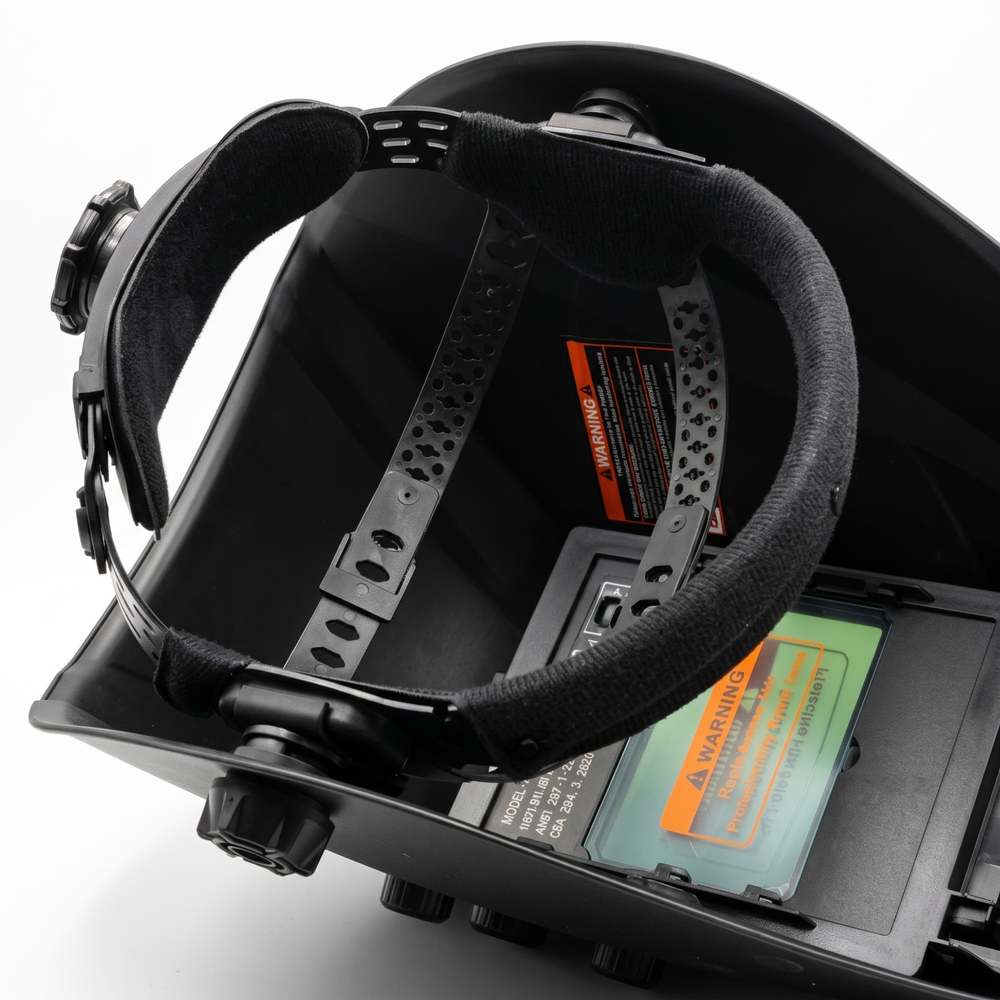

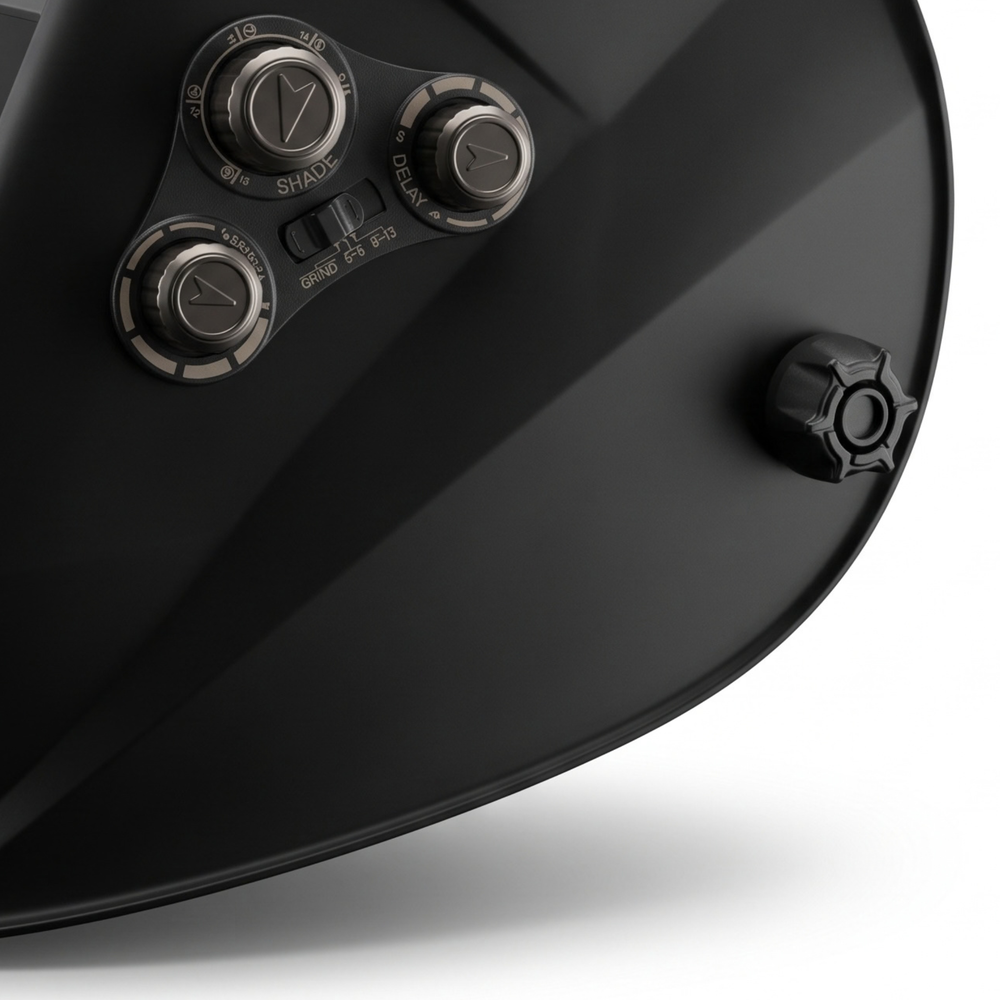

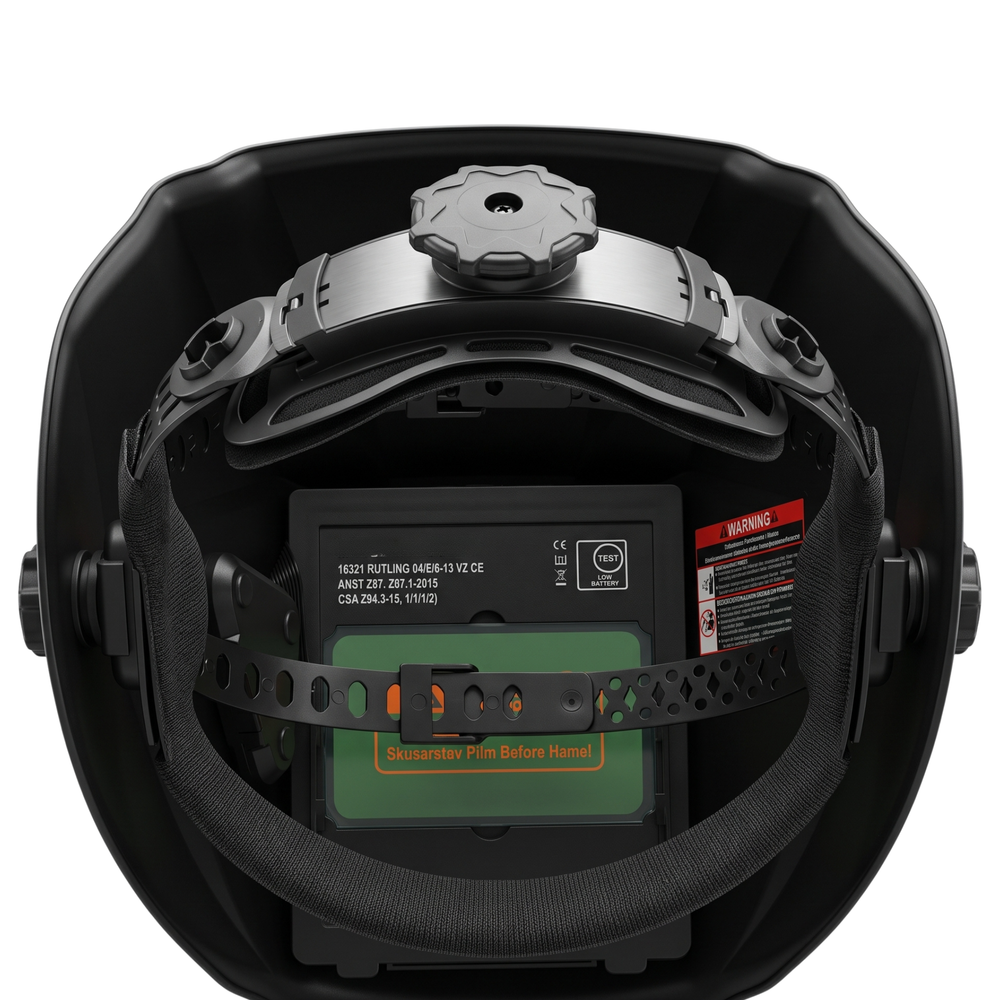

MapleWeld ClariView 80 Auto-Darkening Welding Helmet – Large 100x60 mm View, Variable Shade 5-9/9-13

$149.00

CAD · Taxes and shipping calculated at checkout

  • Large 100 × 60 mm viewing area: 6,000 mm² of view, about 1.9 times the AeroView 60 and 1.5 times the NovaSight 55, for better awareness on long or awkward joints.
  • Two variable shade ranges, DIN 5–9 and DIN 9–13: One helmet for plasma cutting and for MIG, TIG and Stick welding.
  • 0.2 ms light-to-dark switching: Fast arc detection keeps flash exposure to a minimum.
  • Continuously adjustable delay (0.1–0.8 s): Short for tacking, long for high-amperage welds where the puddle keeps glowing.

905 919 1177
  • Free shipping from $100–$250 depending on your province (before taxes) – ships Canada-wide from Toronto
  • Free shipping from $100Province-based flat rates, tracked delivery to shops and job sites
  • Toronto showroomSee it in person, or collect at the counter
  • Expert supportTalk to people who know, not a script
  • Secure checkoutEncrypted payment through Shopify

Overview

MapleWeld ClariView 80: Large-View Auto-Darkening Helmet for MIG, TIG, Stick & Plasma Cutting

The MapleWeld ClariView 80 is a large-view auto-darkening welding helmet with a 100 × 60 mm (3.94 × 2.36 in) window, 1/1/1/2 optical class and two variable shade ranges: DIN 5–9 for plasma cutting and DIN 9–13 for MIG, TIG and Stick welding. The filter switches from a DIN 4 light state to dark in 0.2 ms and blocks UV/IR radiation up to DIN 16 at all times.

With about 1.9 times the viewing area of the AeroView 60, you see the whole joint, your torch angle and the puddle without bobbing your head. A continuously adjustable 0.1–0.8 s delay, solar power backed by a replaceable CR2450 battery and a heavy-duty polypropylene shell make it a strong all-process helmet for fabrication shops, trades and serious DIY welders across Canada.

Key Features

  • Large 100 × 60 mm viewing area: 6,000 mm² of view, about 1.9 times the AeroView 60 and 1.5 times the NovaSight 55, for better awareness on long or awkward joints.
  • Two variable shade ranges, DIN 5–9 and DIN 9–13: One helmet for plasma cutting and for MIG, TIG and Stick welding.
  • 0.2 ms light-to-dark switching: Fast arc detection keeps flash exposure to a minimum.
  • Continuously adjustable delay (0.1–0.8 s): Short for tacking, long for high-amperage welds where the puddle keeps glowing.
  • 1/1/1/2 optical class: Clear, low-distortion view across the full window.
  • Solar power + replaceable CR2450 battery: Fully automatic on/off for long, uninterrupted service.
  • Permanent UV/IR protection: Up to DIN 16, even when the filter is switched off.
  • Heavy-duty polypropylene shell: Light enough for full-day wear; operates from -5°C to +55°C.

Technical Specifications

Brand / Model MapleWeld ClariView 80
Product type Auto-darkening welding helmet, dual variable shade
Recommended processes MIG/MAG, flux-core, Stick, TIG, plasma cutting
Light state DIN 4
Dark state DIN 5–9 / DIN 9–13, variable
Optical class 1/1/1/2
Viewing area 100 × 60 mm (3.94 × 2.36 in)
Filter cartridge size 133 × 114 × 10 mm (5.24 × 4.49 × 0.39 in)
Switching time (light to dark) 0.2 ms
Delay time (dark to light) 0.1–0.8 s, continuously adjustable
UV/IR protection Up to DIN 16, at all times
Power supply Solar cells + 1 × replaceable CR2450 lithium battery
Power on/off Fully automatic
Shell material Heavy-duty polypropylene (PP)
Operating temperature -5°C to +55°C
Storage temperature -10°C to +70°C

Shade Selection Guide

Recommended ClariView 80 settings for common welding and cutting jobs:

Process Current Suggested shade* ClariView 80 setting
Plasma cutting 20–40 A 5 DIN 5
Plasma cutting 40–80 A 6–8 DIN 6–8
Plasma cutting 80–300 A 9 DIN 9
TIG (GTAW) Under 50 A 10 DIN 9–10
TIG (GTAW) 50–150 A 12 DIN 12
MIG / flux-core 60–160 A 11 DIN 11
MIG / flux-core 160–250 A 12 DIN 12
Stick (SMAW) 60–160 A 10 DIN 10
Stick (SMAW) 160–250 A 12 DIN 12

*Suggested shades from the AWS F2.2 lens shade selector. Never use a shade lighter than the minimum for your process; start darker and go lighter until you can see the weld zone clearly. Follow your workplace welding safety program (CSA W117.2 in Canada).

Which MapleWeld Auto-Darkening Helmet Is Right for You?

Side-by-side specs for the MapleWeld AeroView, NovaSight, ClariView, ArcDuty and ProDuty auto-darkening welding helmets:

Model Dark shade (light state) Viewing area Switching speed Best for
MapleWeld AeroView 60 DIN 11 fixed (DIN 3) 90 × 35 mm 0.3 ms Budget MIG, flux-core & Stick
MapleWeld NovaSight 55 DIN 9–13 (DIN 4) 93 × 43 mm 0.04 ms MIG, Stick, TIG from 10 A; external dial, grind mode
ClariView 80 (this helmet) DIN 5–9 / 9–13 (DIN 4) 100 × 60 mm 0.2 ms Large view; plasma cutting + MIG, TIG, Stick
MapleWeld ArcDuty 90 DIN 5–9 / 9–13 (DIN 4) 100 × 60 mm 0.2 ms Large view, 3-step delay; plasma + MIG, TIG, Stick
MapleWeld ProDuty 94 DIN 5–8 / 9–13 (DIN 4) 100 × 50 mm 0.04 ms 4 sensors, grind mode, TIG from 5 A

Frequently Asked Questions

How big is the ClariView 80 viewing area?

100 × 60 mm (3.94 × 2.36 in), or 6,000 mm². That is about 1.9 times the viewing area of the AeroView 60 and 1.5 times the NovaSight 55.

Can I use the ClariView 80 for plasma cutting?

Yes. Its DIN 5–9 range covers the suggested plasma cutting shades from shade 5 at 20–40 A up to shade 9 at 80–300 A. Switch to the DIN 9–13 range for welding.

Is the ClariView 80 good for TIG welding?

Yes, for general TIG work: settings of DIN 9 to 12 cover the suggested shades from under 50 A up to 150 A. No minimum TIG amperage is published for this model; for very low-amp work, the ProDuty 94 is rated from 5 A.

What is the difference between the ClariView 80 and the ArcDuty 90?

Their filters share the same core specifications: 100 × 60 mm view, DIN 4 light state, DIN 5–9 and 9–13 dark ranges, 0.2 ms switching, 1/1/1/2 optical class and a CR2450 backup battery. The ClariView 80 has a continuously adjustable 0.1–0.8 s delay; the ArcDuty 90 uses three fixed delay steps (0.1, 0.4 and 0.8 s). Choose on shell styling and how you prefer to set the delay.

What delay setting should I use?

Use a short delay (about 0.1–0.3 s) for tack welding and production work so you see the next joint sooner, and a longer delay (0.6–0.8 s) for high-amperage MIG or Stick, where the hot puddle keeps glowing after the arc stops.

What battery does the ClariView 80 use?

Solar cells backed by one replaceable CR2450 lithium coin cell. The helmet turns on and off automatically.

Does the ClariView 80 work in cold weather?

It operates from -5°C to +55°C and stores from -10°C to +70°C. In unheated shops, keep it warm between jobs so the filter responds at full speed.

Buy Online or Pick Up in North York (Toronto)

Sold and supported by MapleWeld, the Canadian welding supply store of Maple Industrial Products Inc. Order online for delivery anywhere in Canada, or pick up at 3625 Weston Rd Unit 10, North York, ON M9L 1V9. Questions? Call 905-919-1177 or email orders@mapindpro.com.

  • Shipping: Orders process in 1–3 business days; delivery then takes 1–2 days in the GTA, 3–4 days in the rest of Ontario and 3–6 days to Western, Quebec and Eastern Canada.
  • Free shipping: On qualifying Canadian orders before tax, excluding heavy, oversized and dangerous goods (see our shipping policy).
  • Returns: 30-day returns on unused items in original packaging (see our refund policy).

Part Number & Size Reference

Model
MapleWeld ClariView 80
